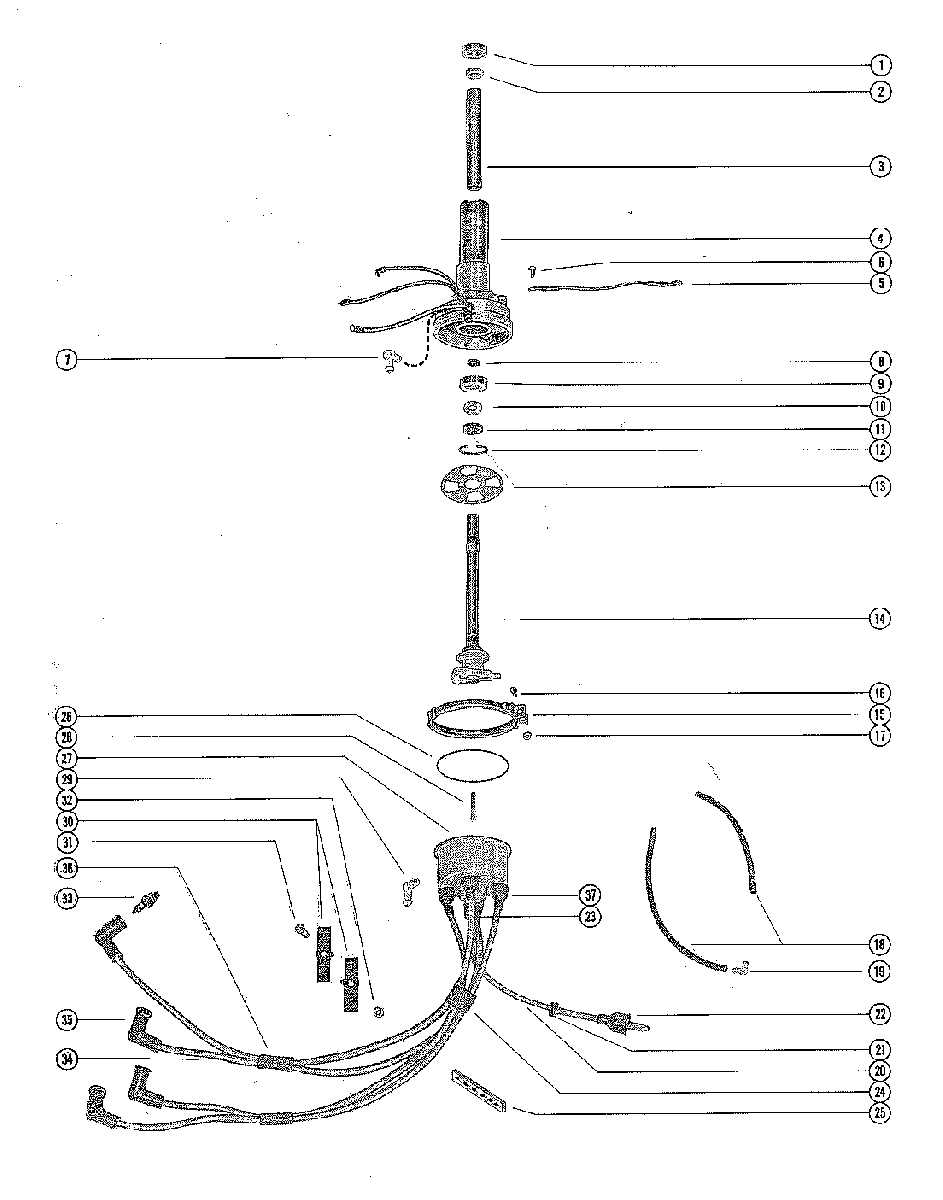

DISTRIBUTOR HOUSING AND ROTOR для Mercury - 650 (4 CYL.) 2803562 THRU 3293183
-
№АртикулНазвание
-
130-20066 BALL BEARING, DISTRIBUTOR HOUSING (UPPER)BALL BEARING, DISTRIBUTOR HOUSING (UPPER)
-
211-54209 NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSINGNUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
-
323-53539 SLEEVE, ROTOR SHAFTSLEEVE, ROTOR SHAFT
-
4393-3736A79 HOUSING ASSEMBLY, DISTRIBUTORHOUSING ASSEMBLY, DISTRIBUTOR
-
553417 GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASEGROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE
-
610-62568 SCREW, GROUND STRAP ATTACHING (3/8")SCREW, GROUND STRAP ATTACHING (3/8")
-
722-55262 ELBOW, VENT - DISTRIBUTOR HOUSING
SERIAL #2803562-02874263ELBOW, VENT - DISTRIBUTOR HOUSING
SERIAL #2803562-02874263 -
758807A1 FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSING
SERIAL 02997339-09999999FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSING
SERIAL 02997339-09999999 -
815-55853 SHIM, BEARING TO DISTRIBUTOR HOUSINGSHIM, BEARING TO DISTRIBUTOR HOUSING
-
930-26379 BALL BEARING, DISTRIBUTOR HOUSING (LOWER)BALL BEARING, DISTRIBUTOR HOUSING (LOWER)
-
1015-21148A1 SHIM, BEARING TO SPACERSHIM, BEARING TO SPACER
-
1123-53538 SPACER, ROTOR SHAFTSPACER, ROTOR SHAFT
-
1253-26406 RING, RETAINING - BALL BEARING TO DISTRIBUTOR HOUSINGRING, RETAINING - BALL BEARING TO DISTRIBUTOR HOUSING
-
13393-3236 DISC, ROTORDISC, ROTOR
-
14393-4370 ROTOR, DISTRIBUTOR
SERIAL #2803562-#2874263ROTOR, DISTRIBUTOR
SERIAL #2803562-#2874263 -
14393-4370 ROTOR, DISTRIBUTOR
SERIAL #2997339-09999999ROTOR, DISTRIBUTOR
SERIAL #2997339-09999999 -
1554-59588 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSINGCLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
-
1610-54281 SCREW, DISTRIBUTOR CAP CLAMP (1")SCREW, DISTRIBUTOR CAP CLAMP (1")
-
1711-26768 NUT, DISTRIBUTOR CAP CLAMP SCREWNUT, DISTRIBUTOR CAP CLAMP SCREW
-
1832-8M0108355 HOSE, VENNT - DISTRIBUTOR TO ELBOW (5 3/8")
SERIAL #2803562-02874263HOSE, VENNT - DISTRIBUTOR TO ELBOW (5 3/8")
SERIAL #2803562-02874263 -
1832-8M0108355 HOSE, VENT - DISTRIBUTOR TO ELBOW (9")
SERIAL #2803562-02874263HOSE, VENT - DISTRIBUTOR TO ELBOW (9")
SERIAL #2803562-02874263 -
1922-31521 ELBOW, VENT HOSE TO BOTTOM COWL
SERIAL #2803562-02874263ELBOW, VENT HOSE TO BOTTOM COWL
SERIAL #2803562-02874263 -
2084-821945A4 HIGH TENSION CALBE ASSEMBLY, DISTRIBUTOR CAP TO COILHIGH TENSION CALBE ASSEMBLY, DISTRIBUTOR CAP TO COIL
-
2125-26547 GROMMET, HIGH TENSION CABLEGROMMET, HIGH TENSION CABLE
-
22332-2854T01 BOOT, HIGH TENSION CABLE TO COILBOOT, HIGH TENSION CABLE TO COIL
-
2385-94589 SLEEVE, HIGH TENSION CABLESLEEVE, HIGH TENSION CABLE
-
2432-46398 SLEEVE, (LEADS 1, 2, 3, 4) - (3/4")SLEEVE, (LEADS 1, 2, 3, 4) - (3/4")
-
2545391 SPACER, IGNITION WIRESPACER, IGNITION WIRE
-
2627-55896 GASKET, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSINGGASKET, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
-
27393-3726A10 DISTRIBUTOR CAP ASSEMBLYDISTRIBUTOR CAP ASSEMBLY
-
28393-1293A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
2922-31521 ELBOW, VENT - DISTRIBUTOR CAP
SERIAL #2803562-#2874263ELBOW, VENT - DISTRIBUTOR CAP
SERIAL #2803562-#2874263 -
2958807A1 FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR CAP
SERIAL #2997339-09999999FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR CAP
SERIAL #2997339-09999999 -
3063319 RETAINER, HIGH TENSION LEADSRETAINER, HIGH TENSION LEADS
-
3110-46378 SCREW, HIGH TENSION LEAD RETAINER (1")SCREW, HIGH TENSION LEAD RETAINER (1")
-
3211-20013 NUT, HIGH TENSION RETAINER SCREWNUT, HIGH TENSION RETAINER SCREW
-
3333-97180Q SPARK PLUG (AC V-40FFM)SPARK PLUG (AC V-40FFM)
-
3484-813715A1 SPARK PLUG LEAD ASSEMBLY #1, #2, #3 AND #4
ORDER A-36549A1 KIT FRO REPLACEMENT OF LEAD WIRE MARKERSSPARK PLUG LEAD ASSEMBLY #1, #2, #3 AND #4
ORDER A-36549A1 KIT FRO REPLACEMENT OF LEAD WIRE MARKERS -
--8M0084600 CONNECTOR, SPARK PLUG LEADCONNECTOR, SPARK PLUG LEAD
-
3585-63709A1 PROTECTOR, SPARK PLUG LEADPROTECTOR, SPARK PLUG LEAD
-
3632-46768 SLEEVE, SPARK PLUG LEAD (LEADS 1, 2, 3, 4)SLEEVE, SPARK PLUG LEAD (LEADS 1, 2, 3, 4)
-
3785-94589 SLEEVE, SPARK PLUG LEAD TO DISTRIBUTORSLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR
