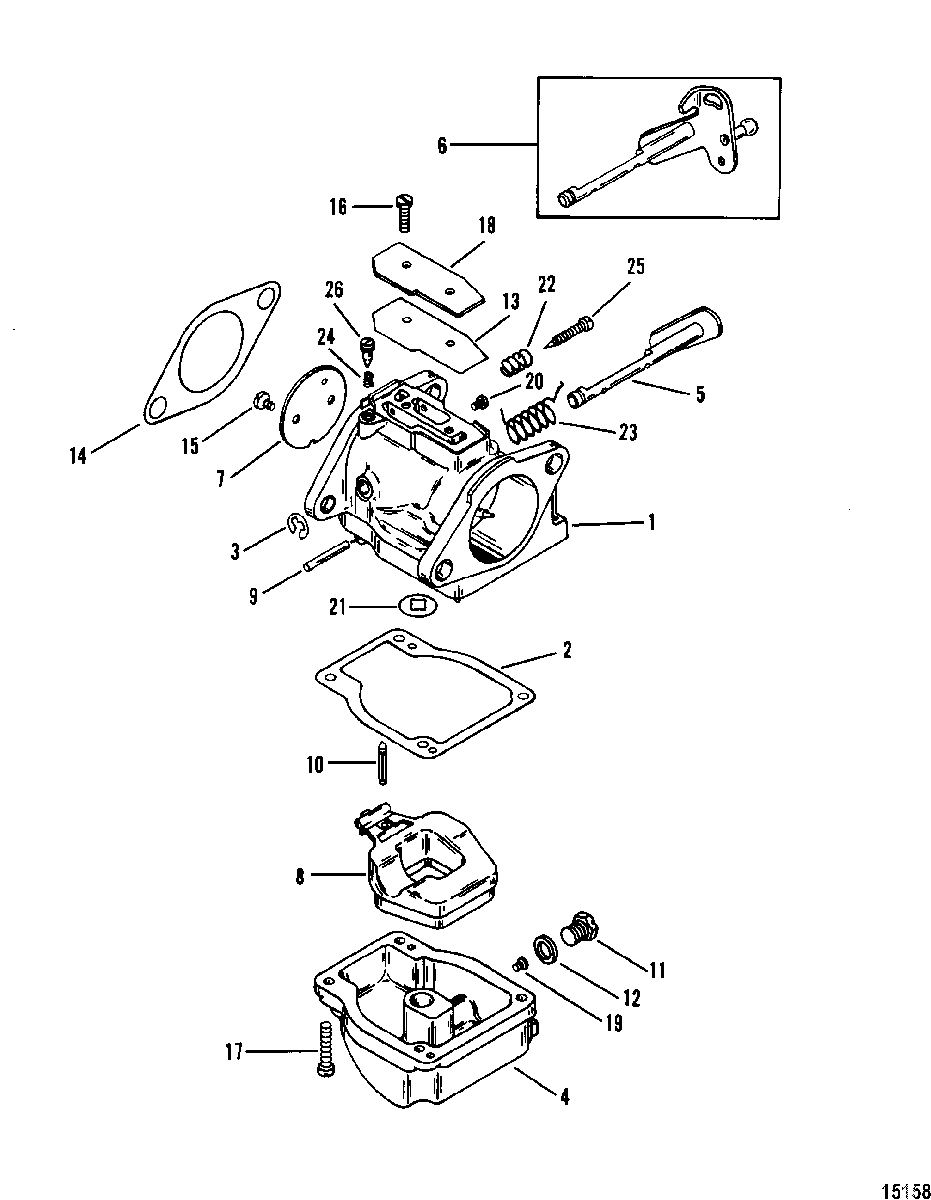

Carburetor для Mercury - 90 (3 CYL.) 0C222000 THRU 0D283221
-
№АртикулНазвание
-
13301-9012A71 CARBURETOR, Top, 75 - WME-17CARBURETOR, Top, 75 - WME-17
-
13301-9012A72 CARBURETOR, Center, 75 - WME-17CARBURETOR, Center, 75 - WME-17
-
13301-9012A73 CARBURETOR, Bottom, 75 - WME-17CARBURETOR, Bottom, 75 - WME-17
-
13301-9012A58 CARBURETOR, Top, 75 COMM. - WME-18CARBURETOR, Top, 75 COMM. - WME-18
-
13301-9012A59 CARBURETOR, Center, 75 COMM. - WME-18CARBURETOR, Center, 75 COMM. - WME-18
-
13301-9012A60 CARBURETOR, Bottom, 75 COMM. - WME-18CARBURETOR, Bottom, 75 COMM. - WME-18
-
13301-9012A64 CARBURETOR, Top, 90 - WME-19CARBURETOR, Top, 90 - WME-19
-
13301-9012A65 CARBURETOR, Center, 90 - WME-19CARBURETOR, Center, 90 - WME-19
-
13301-9012A66 CARBURETOR, Bottom, 90 - WME-19CARBURETOR, Bottom, 90 - WME-19
-
13301-9012A74 CARBURETOR, Top, 75 COMM. - WME-25CARBURETOR, Top, 75 COMM. - WME-25
-
13301-9012A75 CARBURETOR, Center, 75 COMM. - WME-25CARBURETOR, Center, 75 COMM. - WME-25
-
13301-9012A76 CARBURETOR, Bottom, 75 COMM. - WME-25CARBURETOR, Bottom, 75 COMM. - WME-25
-
2NSS NOT SOLD SEPARATE, Gasket, Fuel BowlNOT SOLD SEPARATE, Gasket, Fuel Bowl
-
3NSS NOT SOLD SEPARATE, Retaining RingNOT SOLD SEPARATE, Retaining Ring
-
41395-811696 FUEL BOWL, UpperFUEL BOWL, Upper
-
41395-811693 FUEL BOWL, Center, LowerFUEL BOWL, Center, Lower
-
41395-811696 FUEL BOWL, UpperFUEL BOWL, Upper
-
41395-811693 FUEL BOWL, Center, LowerFUEL BOWL, Center, Lower
-
51395-9591 THROTTLE SHAFT, Upper, LowerTHROTTLE SHAFT, Upper, Lower
-
619270 THROTTLE SHAFT, CenterTHROTTLE SHAFT, Center
-
71395-9593 THROTTLE VALVE, 75/75 COMM.THROTTLE VALVE, 75/75 COMM.
-
71395-811216 THROTTLE VALVE, 90THROTTLE VALVE, 90
-
81395-9594 FLOATFLOAT
-
9NSS NOT SOLD SEPARATE, Float ShaftNOT SOLD SEPARATE, Float Shaft
-
101395-879194011 INLET NEEDLE VALVEINLET NEEDLE VALVE
-
111395-811694 PLUGPLUG
-
111395-811694 PLUG KIT, WME-25PLUG KIT, WME-25
-
12NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
13NSS NOT SOLD SEPARATE, Gasket, Cover PlateNOT SOLD SEPARATE, Gasket, Cover Plate
-
1427-151724 GASKET, FlangeGASKET, Flange
-
15NSS NOT SOLD SEPARATE, Screw, Throttle ValveNOT SOLD SEPARATE, Screw, Throttle Valve
-
161395-9597 SCREW, Cover Plate, WME-8/9/15SCREW, Cover Plate, WME-8/9/15
-
161395-811220 SCREW, Cover Plate, WME-17/18/19/25SCREW, Cover Plate, WME-17/18/19/25
-
171395-808612 SCREW, Fuel BowlSCREW, Fuel Bowl
-
181395-9598 COVER PLATE, WME-8/9/15COVER PLATE, WME-8/9/15
-
181395-811221 COVER PLATE, WME-17/18/19/25COVER PLATE, WME-17/18/19/25
-
191399-4216 JET, (.064), Main Fuel,75 COMM.JET, (.064), Main Fuel,75 COMM.
-
191395-6029 JET, (.068), Main Fuel, 75JET, (.068), Main Fuel, 75
-
191399-4215 MAIN FUEL JET, (.066), Main Fuel, 90MAIN FUEL JET, (.066), Main Fuel, 90
-
201395-8423 JET, Vent, .094JET, Vent, .094
-
21NSS NOT SOLD SEPARATE, Gasket, Nozzle WellNOT SOLD SEPARATE, Gasket, Nozzle Well
-
22NSS NOT SOLD SEPARATE, Spring, Idle NeedleNOT SOLD SEPARATE, Spring, Idle Needle
-
23NSS NOT SOLD SEPARATE, Spring, Throttle ReturnNOT SOLD SEPARATE, Spring, Throttle Return
-
24NSS NOT SOLD SEPARATE, Spring, Idle AirNOT SOLD SEPARATE, Spring, Idle Air
-
25NSS NOT SOLD SEPARATE, Idle NeedleNOT SOLD SEPARATE, Idle Needle
-
26NSS NOT SOLD SEPARATE, Idle Air NeedleNOT SOLD SEPARATE, Idle Air Needle
-
--1395-8236354 REPAIR KITREPAIR KIT
-
--1395-8112231 CARB GASKET SETCARB GASKET SET
