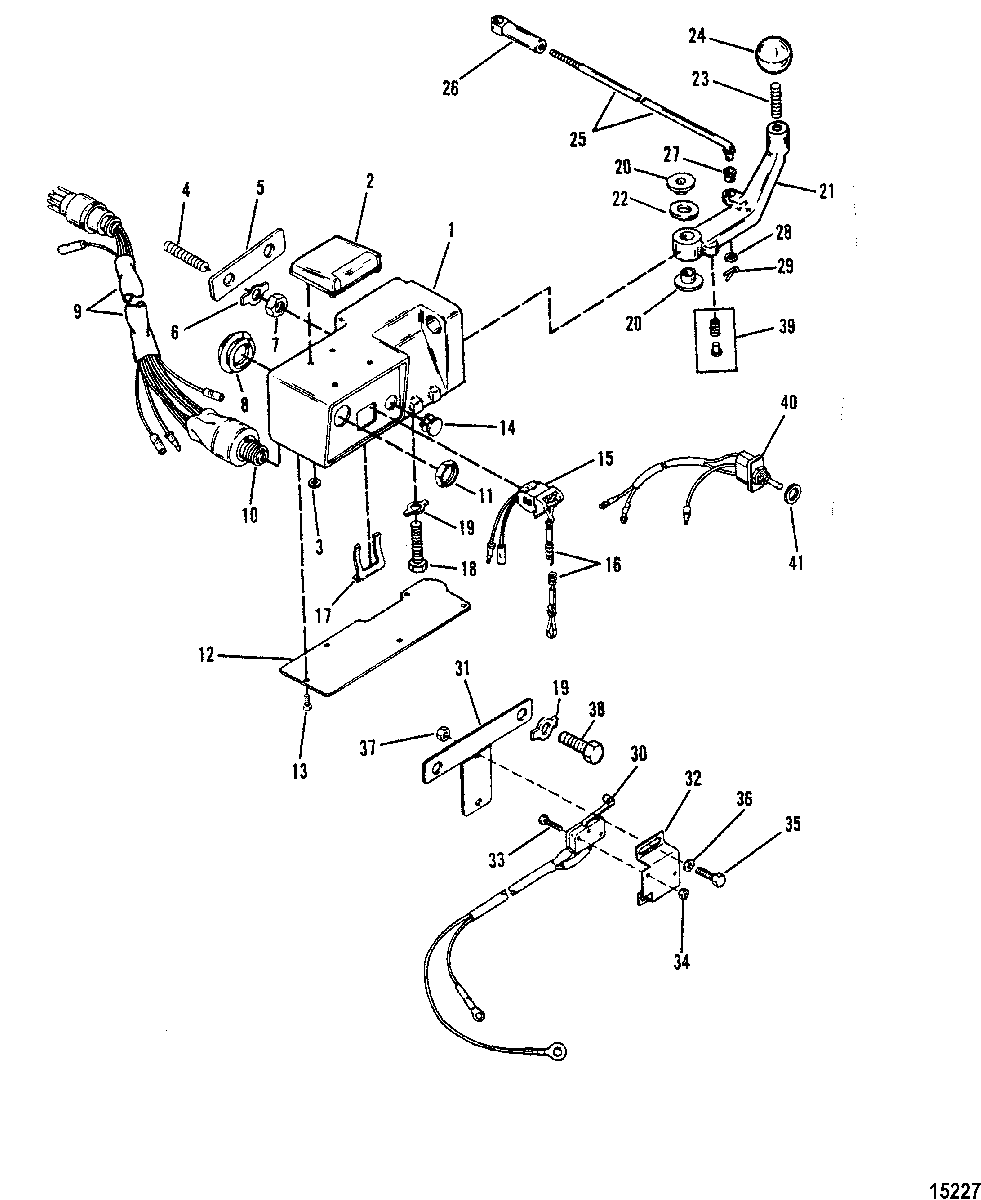

Steering Handle Components для Mercury - 90 (3 CYL.) 0C222000 THRU 0D283221
-
№АртикулНазвание
-
112022A13 BRACKET ASSEMBLY, BlackBRACKET ASSEMBLY, Black
-
112022A14 BRACKET ASSEMBLY, GrayBRACKET ASSEMBLY, Gray
-
279-12012A1 TACHOMETER ASSEMBLYTACHOMETER ASSEMBLY
-
311-113161 NUTNUT
-
416-12782 STUDSTUD
-
515126 SPACERSPACER
-
614-12080 TAB WASHERTAB WASHER
-
711-4002016 NUTNUT
-
8121051 GROMMETGROMMET
-
984-12649A2 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1087-88107A5 KEY SWITCH, See Chart For KeyKEY SWITCH, See Chart For Key
-
1111-879755 NUT, SpecialNUT, Special
-
12120151 COVERCOVER
-
1310-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1419-889730 PLUGPLUG
-
1587-11083A4 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
168M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
178M0032846 RETAINERRETAINER
-
1810-4000358 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1914-42981 TAB WASHERTAB WASHER
-
2023-889732 BUSHINGBUSHING
-
2112021A1 SHIFT LEVER, BlackSHIFT LEVER, Black
-
2112021A2 SHIFT LEVER, GraySHIFT LEVER, Gray
-
2212-815351 WASHERWASHER
-
2316-8M0034452 STUD, (.375-24 x 1.125)STUD, (.375-24 x 1.125)
-
2498530 KNOBKNOB
-
25495636 SHIFT RODSHIFT ROD
-
2648419T ROD ENDROD END
-
2723-26856 BUSHINGBUSHING
-
2812-29245 WASHER, (.281 x .500 x .060)WASHER, (.281 x .500 x .060)
-
2918-25191 COTTER PINCOTTER PIN
-
3087-93479A7 NEUTRAL START SWITCHNEUTRAL START SWITCH
-
3112609 BRACKETBRACKET
-
32126101 BRACKETBRACKET
-
3310-90342 SCREW, (#4-40 x .630)SCREW, (#4-40 x .630)
-
3411-24832 NUT, (#4-40)NUT, (#4-40)
-
3510-57583T SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
3612-20878 WASHERWASHER
-
3711-26419 NUT, (#8-32)NUT, (#8-32)
-
3810-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
398M0091388 DETENT/SPRING KITDETENT/SPRING KIT
-
4087-14645A2 TRIM SWITCH (36.00 Inch) Two Ring TerminalTRIM SWITCH (36.00 Inch) Two Ring Terminal
-
4087-14645A4 TRIM SWITCH (23.00 Inch) Two Male TerminalsTRIM SWITCH (23.00 Inch) Two Male Terminals
-
4149440 NUT, (.468-32)NUT, (.468-32)
-
-894911 KEYKEY
-
-894912 KEY, IgnitionKEY, Ignition
-
-894913 KEY 1CKEY 1C
-
-894914 KEY 1DKEY 1D
-
-894915 KEY 1EKEY 1E
-
-894916 KEY 1FKEY 1F
-
-894917 KEY 2AKEY 2A
-
-894918 KEY 2BKEY 2B
-
-894919 KEY 2CKEY 2C
-
-8949110 KEY, Ignition (2D)KEY, Ignition (2D)
-
-8949111 KEY, Ignition (2E)KEY, Ignition (2E)
-
-8949112 KEY, Ignition (2F)KEY, Ignition (2F)
