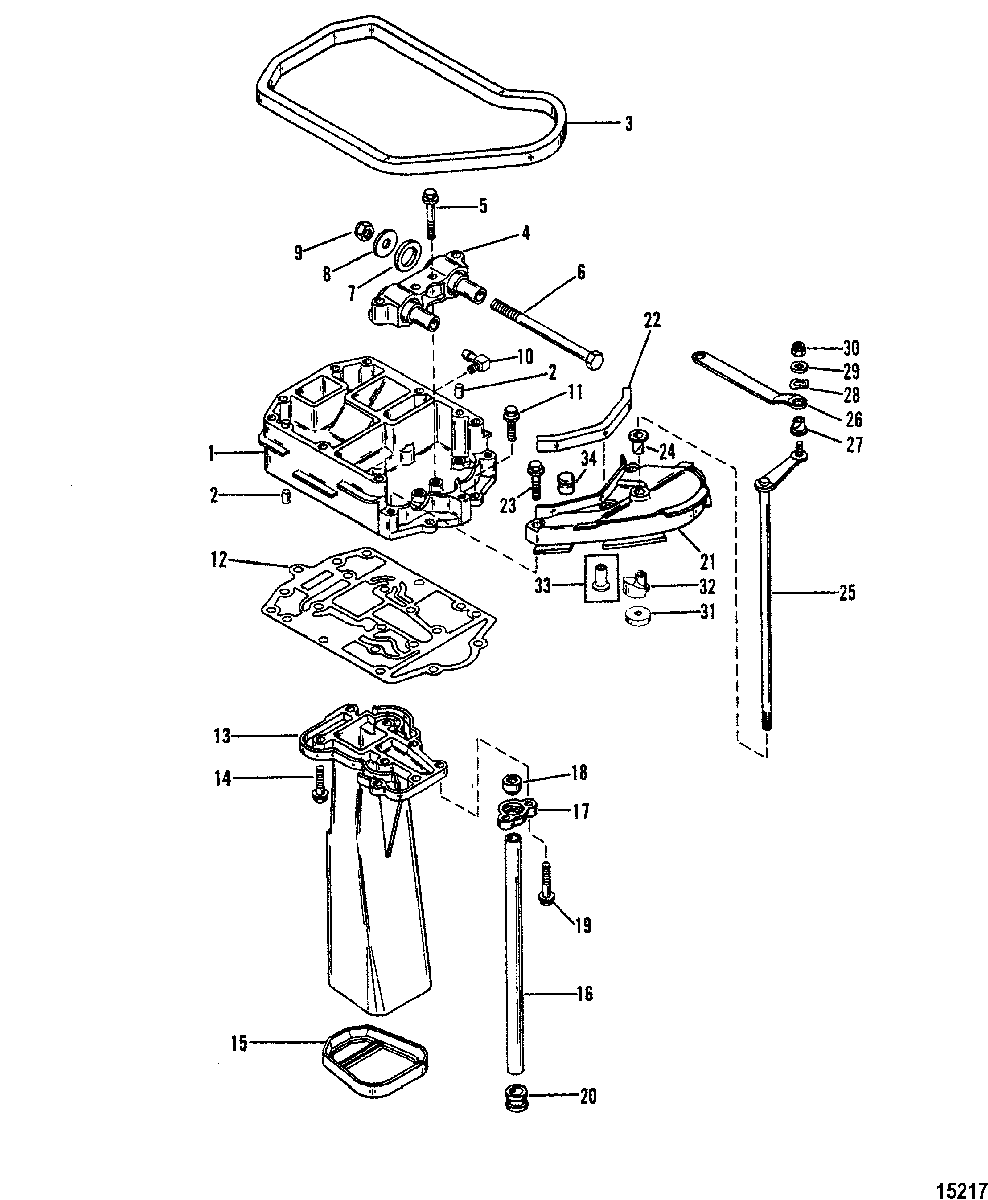

Exhaust Plate для Mercury - 90 (3 CYL.) 0C222000 THRU 0D283221
-
№АртикулНазвание
-
142954A3 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
217-23784 PIN, DowelPIN, Dowel
-
342939 SEALSEAL
-
4881900T03 MOUNT, (2.375 Inch)MOUNT, (2.375 Inch)
-
510-4010750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
610-898487 BOLT, (M12 x 175)BOLT, (M12 x 175)
-
610-12515 SCREW, Handle ModelsSCREW, Handle Models
-
712-32834 WASHERWASHER
-
812-28421 WASHERWASHER
-
911-896963 NUTNUT
-
1022-996642 ELBOWELBOW
-
1110-40011151 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1110-40011158 SCREW, (M8 x 70)SCREW, (M8 x 70)
-
1227-430086 GASKETGASKET
-
138141281 EXHAUST TUBEEXHAUST TUBE
-
1410-40011151 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
158M0039075 SEALSEAL
-
1632-430141 WATER TUBEWATER TUBE
-
1799019 CLAMPCLAMP
-
1842941001 SEAL, Water Tube, UpperSEAL, Water Tube, Upper
-
1910-4010750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
2025-93221002 GROMMETGROMMET
-
2142953A2 BRACKET ASSEMBLY, Lower, BlackBRACKET ASSEMBLY, Lower, Black
-
2142953A3 BRACKET ASSEMBLY, Lower, GrayBRACKET ASSEMBLY, Lower, Gray
-
2243405 SEALSEAL
-
2310-81742750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
2423-48237 BUSHINGBUSHING
-
2579932A9 SHIFT SHAFT ASSEMBLY, UpperSHIFT SHAFT ASSEMBLY, Upper
-
2642912A1 SHIFT LINKSHIFT LINK
-
2723-48475 BUSHING, Double FlangeBUSHING, Double Flange
-
2723-42994 BUSHING, Single FlangeBUSHING, Single Flange
-
2813-29720 WASHER, Wave
(Use With Single Flange Bushing)WASHER, Wave
(Use With Single Flange Bushing) -
2912-24664 WASHER
(Use With Single Flange Bushing)WASHER
(Use With Single Flange Bushing) -
3011-401386 NUT, (M6)NUT, (M6)
-
3123-813745 SPACERSPACER
-
3243053 COUPLING, Non Power TrimCOUPLING, Non Power Trim
-
3343585 COUPLING, Power TrimCOUPLING, Power Trim
-
3425-19564001 GROMMET, Old DesignGROMMET, Old Design
