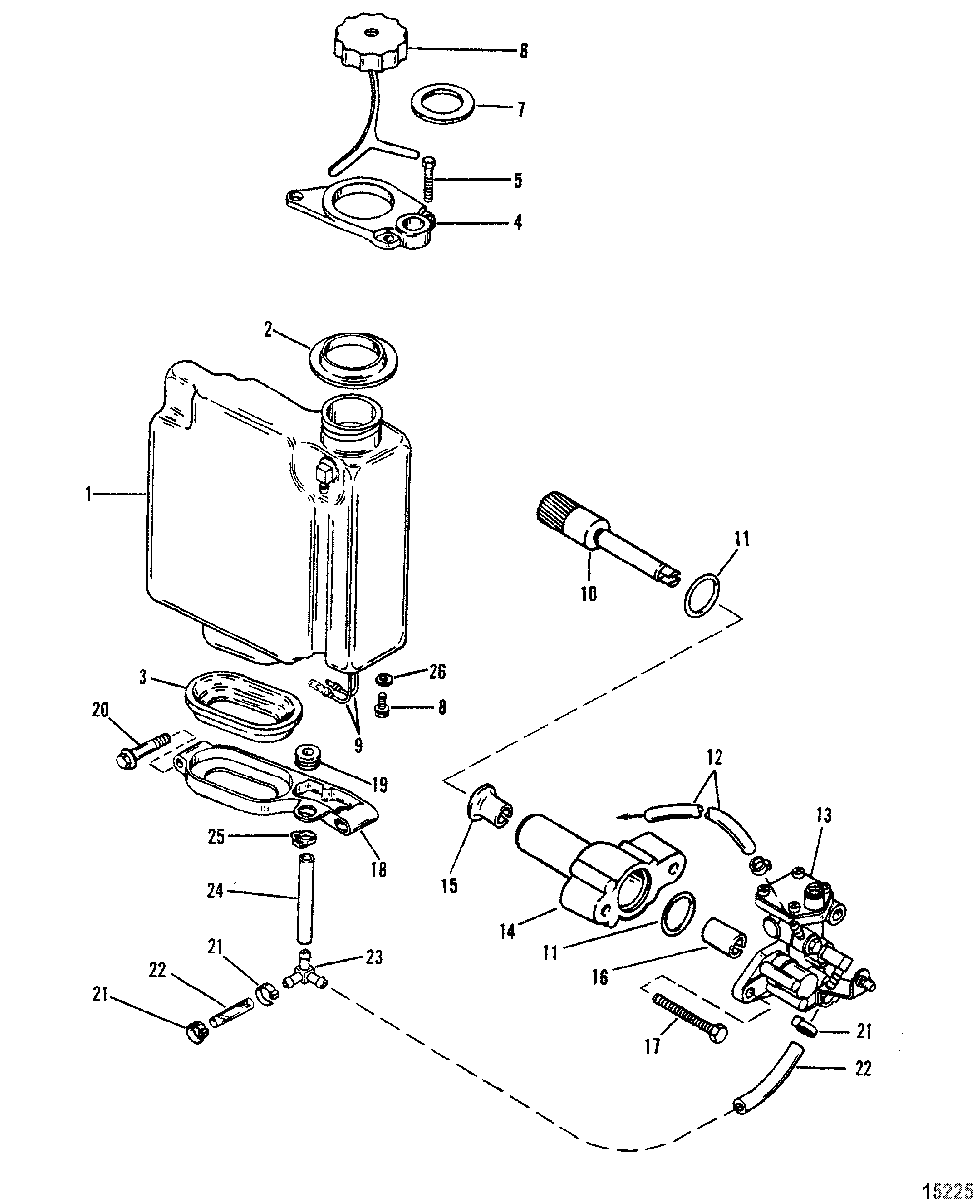

Oil Injection Components для Mercury - 90 (3 CYL.) 0C222000 THRU 0D283221
-
№АртикулНазвание
-
11255-8627A7 OIL TANKOIL TANK
-
299160001 BOOT, UpperBOOT, Upper
-
399161 BOOTBOOT
-
4988952 BRACKET, UpperBRACKET, Upper
-
510-4010630 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
636-42653A3 CAP ASSEMBLYCAP ASSEMBLY
-
727-42999T GASKETGASKET
-
810-12896 SCREW, (8-18 x .31)SCREW, (8-18 x .31)
-
987-12886A6 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1043-430204 DRIVEN GEARDRIVEN GEAR
-
1125-62705 O-RINGO-RING
-
1232-82381335 TUBING, (8.00 Inch), To Fuel PumpTUBING, (8.00 Inch), To Fuel Pump
-
1342959A2 OIL PUMPOIL PUMP
-
1417335A3 ADAPTOR ASSEMBLYADAPTOR ASSEMBLY
-
1523-17597 BUSHINGBUSHING
-
1623-17596 JOURNAL BUSHINGJOURNAL BUSHING
-
1710-82104540 SCREW, Oil PumpSCREW, Oil Pump
-
1842888 BASEBASE
-
1925-56291 GROMMETGROMMET
-
2010-82155050 SCREWSCREW
-
2154-816311T CABLE TIE, (8.00 Inch)
(As Required)CABLE TIE, (8.00 Inch)
(As Required) -
2232-82381455 TUBINGTUBING
-
2322-44456 FITTINGFITTING
-
2432-82381455 TUBING, (14.50 Inches Bulk), Cut to 10.00 Inch LengthTUBING, (14.50 Inches Bulk), Cut to 10.00 Inch Length
-
2554-814200 CLAMPCLAMP
-
2612-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
-27-43004A99 GASKET SETGASKET SET
