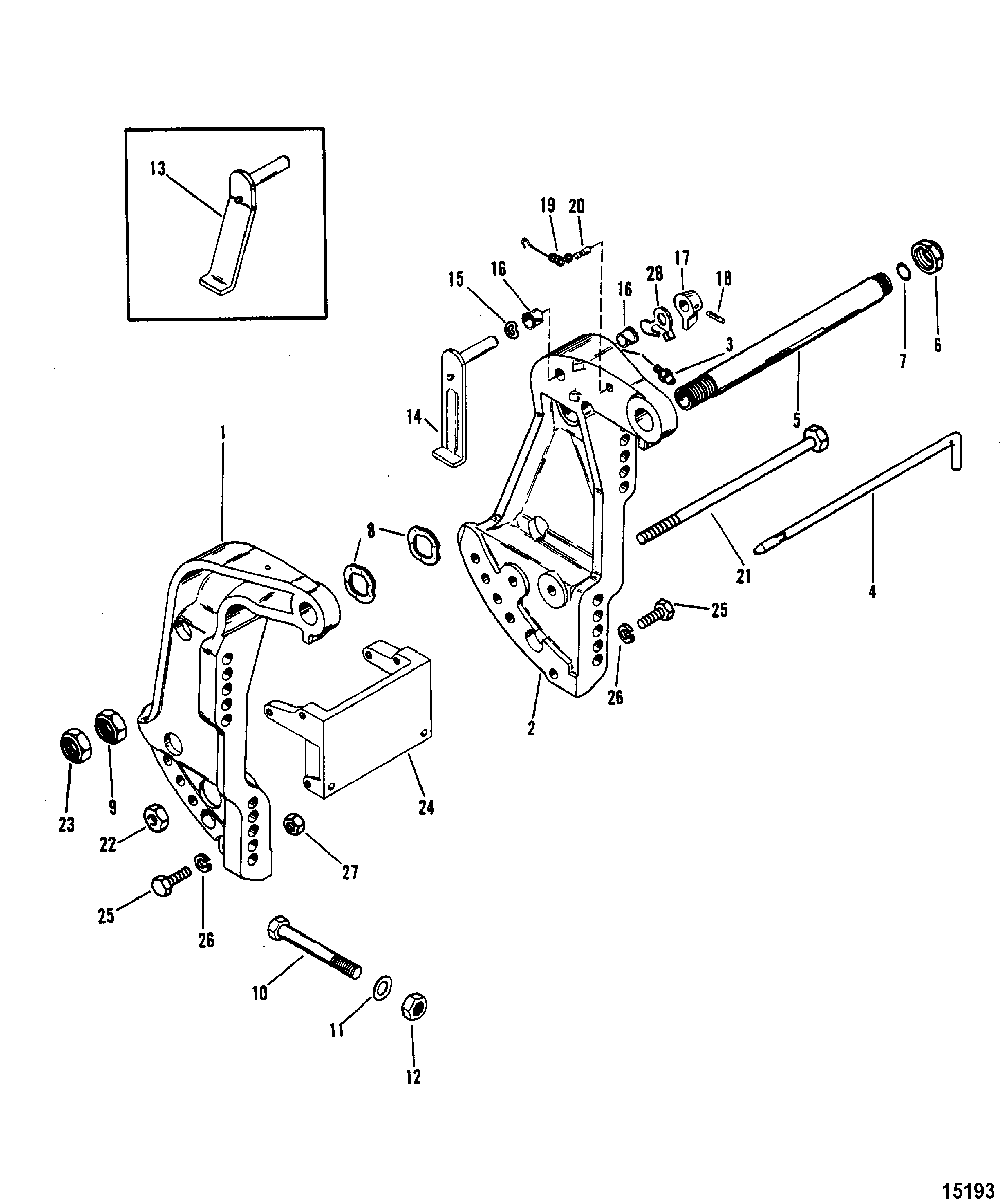

Transom Bracket для Mercury - 90 (3 CYL.) 0C222000 THRU 0D283221
-
№АртикулНазвание
-
13401-8718F7 TRANSOM BRACKET, Starboard, BlackTRANSOM BRACKET, Starboard, Black
-
23400-8716A8 TRANSOM BRACKET, Port, BlackTRANSOM BRACKET, Port, Black
-
13401-8718F8 TRANSOM BRACKET, Starboard, GrayTRANSOM BRACKET, Starboard, Gray
-
23400-8716A9 TRANSOM BRACKET, Port, GrayTRANSOM BRACKET, Port, Gray
-
322-98727 FITTING, Grease, PortFITTING, Grease, Port
-
417-8M0026068 TILT LOCK PIN ASSEMBLY, Non Power TrimTILT LOCK PIN ASSEMBLY, Non Power Trim
-
5826125A1 TILT TUBE, Power TrimTILT TUBE, Power Trim
-
611-82671327 NUT, BlackNUT, Black
-
611-82671327 NUT, (1.00-14), GrayNUT, (1.00-14), Gray
-
725-45711 O-RINGO-RING
-
813-88750 WAVE WASHERWAVE WASHER
-
911-858869 NUT, (.875-14)NUT, (.875-14)
-
1010-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
1112-28421 WASHERWASHER
-
1211-91962 NUTNUT
-
138M0115104 LEVER ASSEMBLY, Non Power Trim And Three Ram Power TrimLEVER ASSEMBLY, Non Power Trim And Three Ram Power Trim
-
148M0109798 TILT LOCK LEVER, Single Ram Power TrimTILT LOCK LEVER, Single Ram Power Trim
-
1513-99611 WAVE WASHERWAVE WASHER
-
1623-65830 NYLINERNYLINER
-
1799633 KNOBKNOB
-
1817-99615 PINPIN
-
1924-99622 SPRINGSPRING
-
2017-99604 GROOVE PINGROOVE PIN
-
2110-96930A1 BOLT ASSEMBLY, Power TrimBOLT ASSEMBLY, Power Trim
-
2211-23161 NUT, (.375-24), Power TrimNUT, (.375-24), Power Trim
-
2311-8M0041651 NUT, (.875-14), Power TrimNUT, (.875-14), Power Trim
-
248M0086406 ANCHOR BRACKET, Black
(Single Ram Power Trim)ANCHOR BRACKET, Black
(Single Ram Power Trim) -
248M0086406 ANCHOR BRACKET, Gray
(Single Ram Power Trim)ANCHOR BRACKET, Gray
(Single Ram Power Trim) -
2510-4000377 SCREW, (M10 x 30), Single Ram Power TrimSCREW, (M10 x 30), Single Ram Power Trim
-
2613-400258 LOCKWASHER, Single Ram Power TrimLOCKWASHER, Single Ram Power Trim
-
2711-40114 NUT, (M10), Single Ram Power TrimNUT, (M10), Single Ram Power Trim
-
28814207 STOPSTOP
