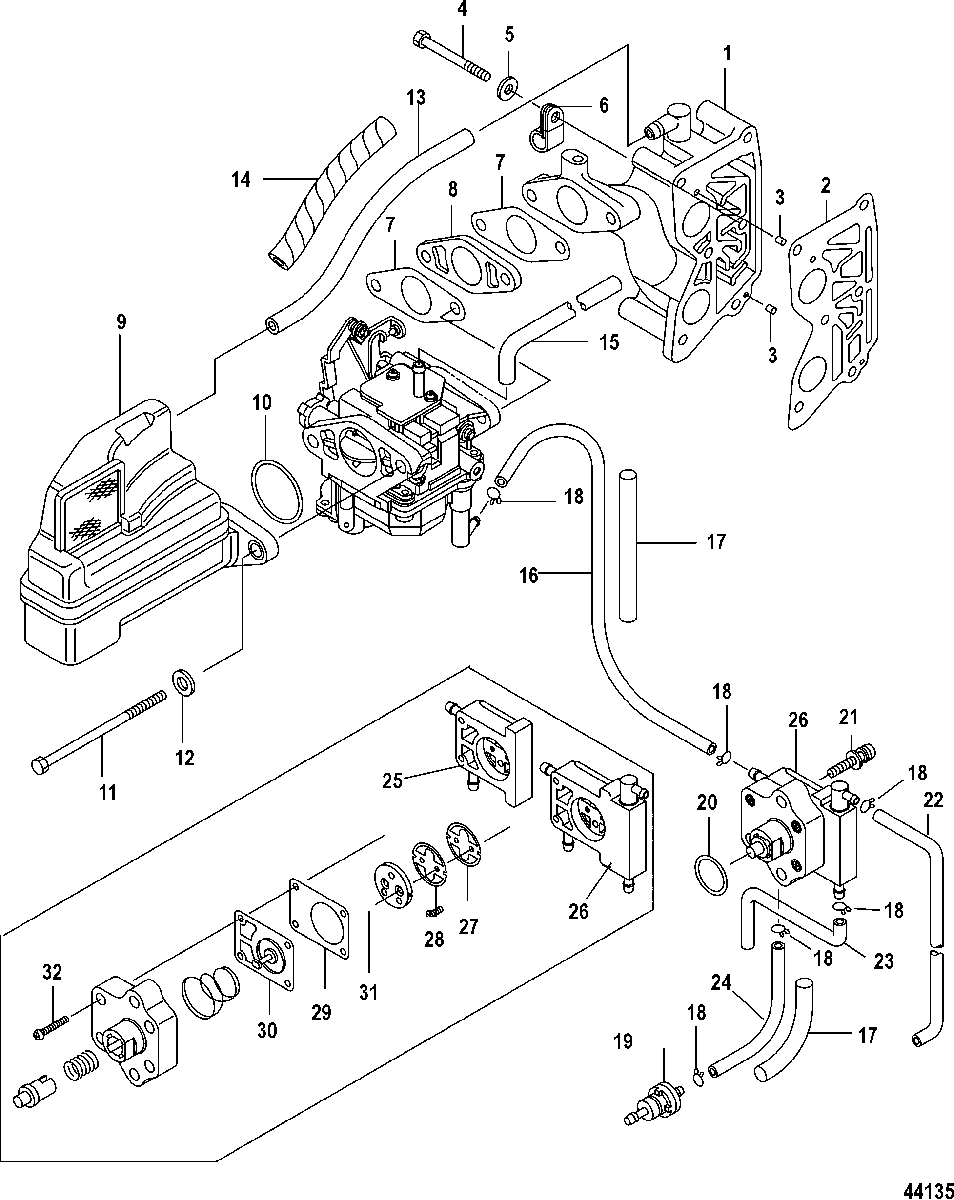

Intake Manifold and Fuel Pump для Mercury - 9.9 (4-STROKE)(209cc) 0P325500 & Up
-
№АртикулНазвание
-
1835385T01 MANIFOLD, IntakeMANIFOLD, Intake
-
227-853525001 GASKETGASKET
-
318-8150263 COTTER PINCOTTER PIN
-
410-853531001 BOLTBOLT
-
512-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
654-953951 CLAMPCLAMP
-
727-835383001 GASKET, CarburetorGASKET, Carburetor
-
8853526001 INSULATORINSULATOR
-
9835386001 BOX, AirBOX, Air
-
1025-825057003 O-RINGO-RING
-
1110-8M0100009 BOLT, (M6 x 100)BOLT, (M6 x 100)
-
1212-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
1332-8M0057114 HOSE, (200 mm), BreatherHOSE, (200 mm), Breather
-
1432-895108001 PROTECTIVE SLEEVE
Electric Remote ControlPROTECTIVE SLEEVE
Electric Remote Control -
1532-895109 HOSE, OverflowHOSE, Overflow
-
1632-8M0057113 HOSE, (260 mm), FuelHOSE, (260 mm), Fuel
-
1732-895108 PROTECTIVE TUBINGPROTECTIVE TUBING
-
1854-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
1935-16248 FILTER, FuelFILTER, Fuel
-
2025-803513 O-RINGO-RING
-
2110-8555448 SCREW, (M6 x 30)
Use With Design-I Fuel PumpSCREW, (M6 x 30)
Use With Design-I Fuel Pump -
2110-855544021 SCREW, (M6 x 25 MM)
Use With Design-II Fuel PumpSCREW, (M6 x 25 MM)
Use With Design-II Fuel Pump -
2232-8M0057113 TUBING, (185 mm)TUBING, (185 mm)
-
2332-8M0057113 TUBING, Rubber (160 mm)TUBING, Rubber (160 mm)
-
2432-8M0057113 HOSE, (150 mm), FuelHOSE, (150 mm), Fuel
-
25NSS NOT SOLD SEPARATE, PUMP ASSEMBLY
Design-I, Use 803529T07NOT SOLD SEPARATE, PUMP ASSEMBLY
Design-I, Use 803529T07 -
26803529T07 PUMP ASSEMBLY, Fuel-Complete Only
Design-IIPUMP ASSEMBLY, Fuel-Complete Only
Design-II -
2721-851812003 CHECK VALVE, BlackCHECK VALVE, Black
-
2821-851812004 CHECK VALVE, WhiteCHECK VALVE, White
-
2927-855569003 GASKETGASKET
-
30853731003 DIAPHRAGMDIAPHRAGM
-
3110-895107 SCREWSCREW
-
3210-895107001 SCREWSCREW
-
-27-835427A04 GASKET SET, PowerheadGASKET SET, Powerhead
-
-21-851812A01 DIAPHRAGM KITDIAPHRAGM KIT
