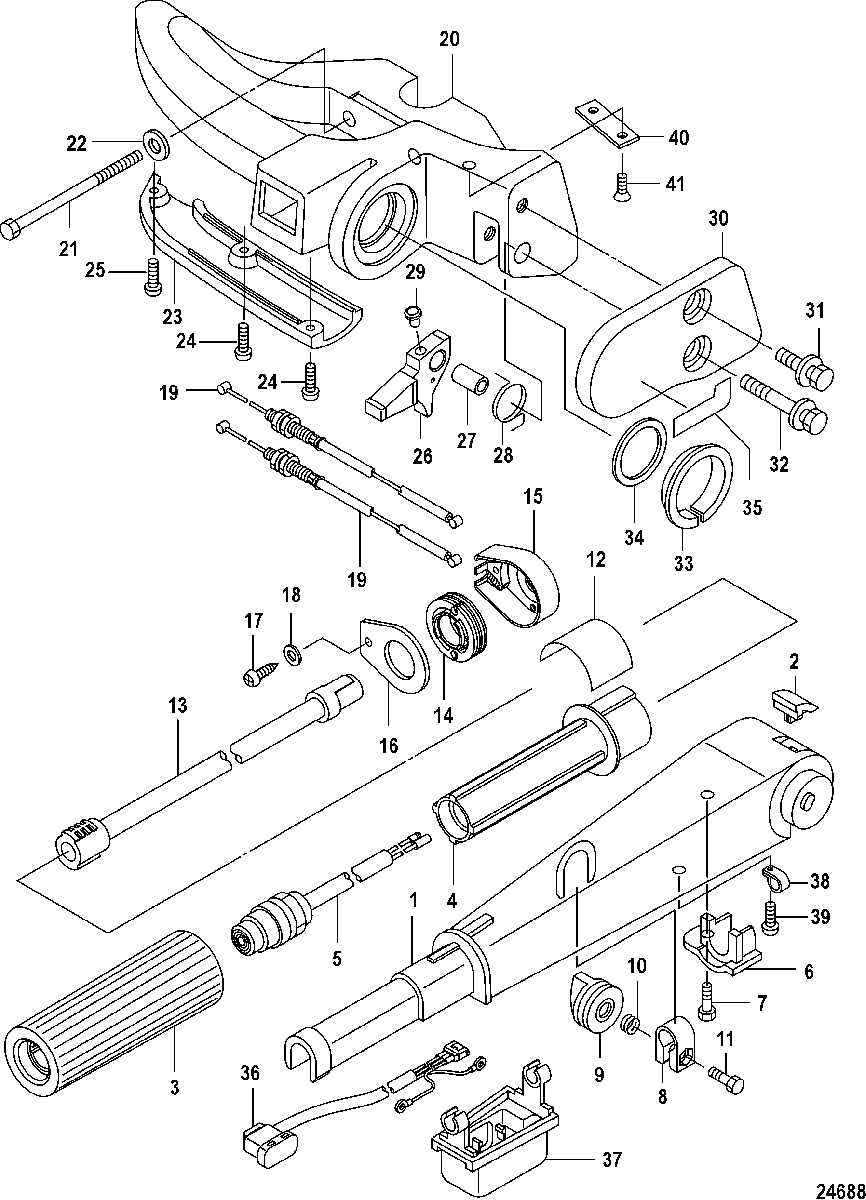

Tiller Handle для Mercury - 9.9 (4-STROKE)(209cc) 0P325500 & Up
-
№АртикулНазвание
-
18M0051374 TILLER HANDLETILLER HANDLE
-
28M0051375 PLUG, CapPLUG, Cap
-
38M0051376 GRIP, Rubber, OuterGRIP, Rubber, Outer
-
48M0051377 GRIP, InnerGRIP, Inner
-
58M0051405 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
68M0051380 BRACKET, Aluminum, Throttle ShaftBRACKET, Aluminum, Throttle Shaft
-
710-8M0051381 SCREW, Stainless SteelSCREW, Stainless Steel
-
88M0051382 CLAMP, Friction - ThrottleCLAMP, Friction - Throttle
-
98M0051383 NUTNUT
-
1024-8M0051384 SPRING, Stainless SteelSPRING, Stainless Steel
-
1110-4000330 BOLTBOLT
-
1237-896853008 DECAL, Tiller Handle Shift-RabbitDECAL, Tiller Handle Shift-Rabbit
-
138M0051379 SHAFT, Throttle
SN# 0R055148 & BelowSHAFT, Throttle
SN# 0R055148 & Below -
138M0051379 SHAFT, Throttle
SN# 0R055149 THRU 0R068397SHAFT, Throttle
SN# 0R055149 THRU 0R068397 -
138M0051379 SHAFT, Throttle
SN# 0P400999 & BelowSHAFT, Throttle
SN# 0P400999 & Below -
138M0051379 SHAFT, Throttle
SN# 0R068398 & UpSHAFT, Throttle
SN# 0R068398 & Up -
138M0051379 SHAFT, Throttle
SN# 0P401000 & UpSHAFT, Throttle
SN# 0P401000 & Up -
148M0051386 PULLEYPULLEY
-
158M0051387 HOUSINGHOUSING
-
168M0051388 COVERCOVER
-
1710-16257003 SCREW, Tapping - Stainless SteelSCREW, Tapping - Stainless Steel
-
1812-8M0108373 WASHER, Stainless SteelWASHER, Stainless Steel
-
198M0051390 CABLE ASSEMBLY, ThrottleCABLE ASSEMBLY, Throttle
-
208M0051392 HANDLE, CarryingHANDLE, Carrying
-
2110-8M0058362 BOLT, SteelBOLT, Steel
-
2212-879194340 WASHER, Stainless SteelWASHER, Stainless Steel
-
23895142A01 COVER, Carry Handle
Use with 8mm ScrewsCOVER, Carry Handle
Use with 8mm Screws -
23895142A01 COVER KIT
Use with 16 and 25mm Screws-Included with Cover KitCOVER KIT
Use with 16 and 25mm Screws-Included with Cover Kit -
2410-8M0051394 SCREW, (M4 x 8)SCREW, (M4 x 8)
-
2410-8M0051394 SCREW, Stainless Steel (M4 x 16)SCREW, Stainless Steel (M4 x 16)
-
2510-8M0051395 SCREW, Stainless Steel (M4 x 25)SCREW, Stainless Steel (M4 x 25)
-
268M0051396 LEVER, Tiller Lock - Stainless SteelLEVER, Tiller Lock - Stainless Steel
-
278M0051397 COLLAR, Stainless SteelCOLLAR, Stainless Steel
-
2824-8M0051398 SPRING, Stainless SteelSPRING, Stainless Steel
-
298M0051399 BUTTON, Tiller Lock LeverBUTTON, Tiller Lock Lever
-
308M0051400 COVERCOVER
-
3110-823042 BOLT, Stainless SteelBOLT, Stainless Steel
-
3210-8M0051402 BOLT, Stainless SteelBOLT, Stainless Steel
-
3323-8M0051403 BUSHING, PlasticBUSHING, Plastic
-
3412-8M0051404 WASHERWASHER
-
3537-892904006 DECAL, Tiller Lock ReleaseDECAL, Tiller Lock Release
-
368M4501991 SWITCH, Power Tilt
SN# 0R193508 & BelowSWITCH, Power Tilt
SN# 0R193508 & Below -
368M4501991 SWITCH, Power Tilt
SN# 0R193509 & UpSWITCH, Power Tilt
SN# 0R193509 & Up -
3746-8M4501941 HOUSING, Switch
Power TiltHOUSING, Switch
Power Tilt -
3854-17169 CLAMP
Power TiltCLAMP
Power Tilt -
3910-8M0051381 SCREW
Power TiltSCREW
Power Tilt -
408M4501970 PLATE
Power TiltPLATE
Power Tilt -
4110-8M4501983 SCREW
Power TiltSCREW
Power Tilt -
-27-835427A04 GASKET SET, PowerheadGASKET SET, Powerhead
