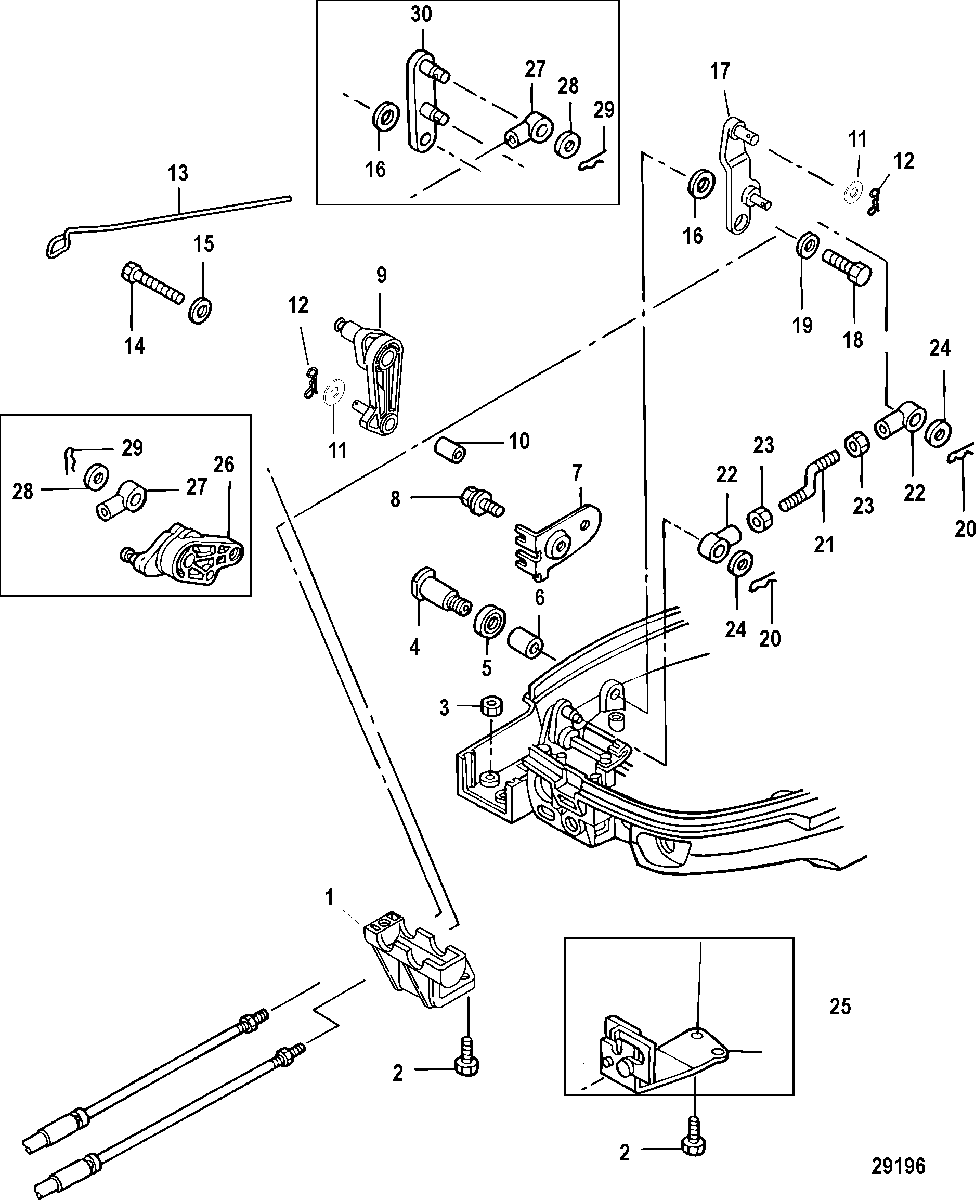

Throttle/Shift Linkage, 9.9 Remote Models для Mercury - 9.9 (4-STROKE)(209cc) 0P325500 & Up
-
№АртикулНазвание
-
1898101635 BRACKET
SN# 0R192772 & UpBRACKET
SN# 0R192772 & Up -
1898101635 BRACKET
SN# 0P513352 & UpBRACKET
SN# 0P513352 & Up -
210-16832 BOLT
SN# 0R068397 & BelowBOLT
SN# 0R068397 & Below -
210-16832 BOLT
SN# 0P400999 & BelowBOLT
SN# 0P400999 & Below -
210-16832 BOLT, (M6 x 16)
SN# 0R068398 THRU 0R192771BOLT, (M6 x 16)
SN# 0R068398 THRU 0R192771 -
210-16832 BOLT, (M6 x 16)
SN# 0P401000 THRU 0P513351BOLT, (M6 x 16)
SN# 0P401000 THRU 0P513351 -
210-167051 BOLT
SN# 0R192772 & UpBOLT
SN# 0R192772 & Up -
210-167051 BOLT
SN# 0P513352 & UpBOLT
SN# 0P513352 & Up -
311-853722022 NUTNUT
-
410-17640001 SHOULDER SCREWSHOULDER SCREW
-
526-16219 SEALSEAL
-
623-16220 BUSHINGBUSHING
-
7853739003 BRACKETBRACKET
-
810-8230427 BOLTBOLT
-
9898101905 LEVER, Throttle
Bigfoot SN# 0R192772 & UpLEVER, Throttle
Bigfoot SN# 0R192772 & Up -
9898101905 LEVER, Throttle
Bigfoot SN# 0P513352 & UpLEVER, Throttle
Bigfoot SN# 0P513352 & Up -
1023-8537154 SPACERSPACER
-
1112-898101218 WASHER, Plastic
SN# 0R192772 & UpWASHER, Plastic
SN# 0R192772 & Up -
1112-898101218 WASHER, Plastic
SN# 0P513352 & UpWASHER, Plastic
SN# 0P513352 & Up -
1254-8M0021224 COTTER PIN
SN# 0R192772 & UpCOTTER PIN
SN# 0R192772 & Up -
1254-8M0021224 COTTER PIN
SN# 0P513352 & UpCOTTER PIN
SN# 0P513352 & Up -
13803574001 ROD, ThrottleROD, Throttle
-
1410-8M0124428 BOLTBOLT
-
1512-953921 WASHERWASHER
-
1613-16221 WAVE WASHERWAVE WASHER
-
17898101903 ARM, Shift
SN# 0R192772 & UpARM, Shift
SN# 0R192772 & Up -
17898101903 ARM, Shift
SN# 0P513352 & UpARM, Shift
SN# 0P513352 & Up -
1810-8230427 BOLTBOLT
-
1912-161404 WASHERWASHER
-
2018-8150262 COTTER PIN
SN# 0R192771 & BelowCOTTER PIN
SN# 0R192771 & Below -
2018-8150262 COTTER PIN
SN# 0P513351 & BelowCOTTER PIN
SN# 0P513351 & Below -
2054-8M0021224 COTTER PIN
SN# 0R192772 & UpCOTTER PIN
SN# 0R192772 & Up -
2054-8M0021224 COTTER PIN
SN# 0P513352 & UpCOTTER PIN
SN# 0P513352 & Up -
21892774 ROD, Shift LeverROD, Shift Lever
-
22892775 JOINT, CableJOINT, Cable
-
2311-16081 NUTNUT
-
2412-953925 WASHER
SN# 0R192771 & BelowWASHER
SN# 0R192771 & Below -
2412-953925 WASHER
SN# 0P513351 & BelowWASHER
SN# 0P513351 & Below -
2412-898101218 WASHER, Plastic
SN# 0R192772 & UpWASHER, Plastic
SN# 0R192772 & Up -
2412-898101218 WASHER, Plastic
SN# 0P513352 & UpWASHER, Plastic
SN# 0P513352 & Up -
25803875001 BRACKET
SN# 0R192771 & BelowBRACKET
SN# 0R192771 & Below -
25803875001 BRACKET
SN# 0P513351 & BelowBRACKET
SN# 0P513351 & Below -
26804892001 DRUM, Throttle
Non BigfootDRUM, Throttle
Non Bigfoot -
26804892004 DRUM, Throttle
Bigfoot SN# 0R192771 & BelowDRUM, Throttle
Bigfoot SN# 0R192771 & Below -
26804892004 DRUM, Throttle
SN# 0P513351 & BelowDRUM, Throttle
SN# 0P513351 & Below -
278M0079131 SOCKET, Cable Joint
SN# 0R192771 & BelowSOCKET, Cable Joint
SN# 0R192771 & Below -
278M0079131 SOCKET, Cable Joint
SN# 0P513351 & BelowSOCKET, Cable Joint
SN# 0P513351 & Below -
2812-953925 WASHER
SN# 0R192771 & BelowWASHER
SN# 0R192771 & Below -
2812-953925 WASHER
SN# 0P513351 & BelowWASHER
SN# 0P513351 & Below -
2918-8150262 COTTER PIN
SN# 0R192771 & BelowCOTTER PIN
SN# 0R192771 & Below -
2918-8150262 COTTER PIN
SN# 0P513351 & BelowCOTTER PIN
SN# 0P513351 & Below -
30892773 SHIFT ARM
Non BigfootSHIFT ARM
Non Bigfoot -
30892773001 SHIFT ARM
Bigfoot SN# 0R192771 & BelowSHIFT ARM
Bigfoot SN# 0R192771 & Below -
30892773001 SHIFT ARM
Bigfoot SN# 0P513351 & BelowSHIFT ARM
Bigfoot SN# 0P513351 & Below
