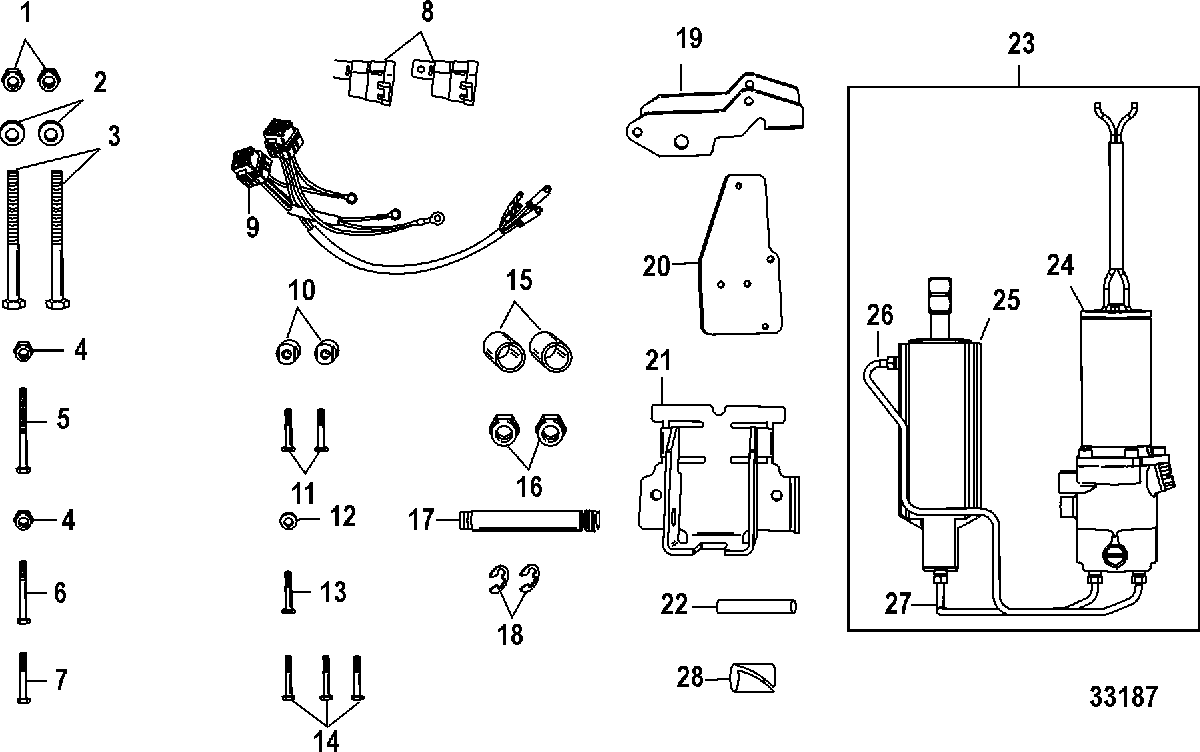

Power Trim Kit, 850700A07 для Mercury - 9.9 (4-STROKE)(209cc) 0P325500 & Up
-
№АртикулНазвание
-
-850700A07 POWER TRIM KITPOWER TRIM KIT
-
111-82670910 NUT, (.312-18) Stainless SteelNUT, (.312-18) Stainless Steel
-
212-67981 WASHERWASHER
-
310-814945 SCREW, (.312-18 x 3.500) Stainless SteelSCREW, (.312-18 x 3.500) Stainless Steel
-
411-8267118 NUT, (.250-20)NUT, (.250-20)
-
510-70732 SCREW, (.250-20 x 2.00)SCREW, (.250-20 x 2.00)
-
610-817504 SCREW, (.250-20 x 1.500) Stainless SteelSCREW, (.250-20 x 1.500) Stainless Steel
-
710-8472681 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
88M0052578 RELAYRELAY
-
984-819514A63 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1023-850711 SPACERSPACER
-
1110-38601 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
1212-35044 WASHER, (.281 x .625 x .065) Stainless SteelWASHER, (.281 x .625 x .065) Stainless Steel
-
1310-96138 SCREW, (.250-28 x .620)SCREW, (.250-28 x .620)
-
1410-817505 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
1523-850704 SPACERSPACER
-
1611-826709117 NUT, (.500-20) Stainless SteelNUT, (.500-20) Stainless Steel
-
1717-820618 PINPIN
-
1853-13194 RING, RetainingRING, Retaining
-
19850710T2 BRACKETBRACKET
-
20850713T1 PLATEPLATE
-
21850712T2 BRACKETBRACKET
-
2217-8507021 PINPIN
-
23NSS NOT SOLD SEPARATE, Pump/Motor AssemblyNOT SOLD SEPARATE, Pump/Motor Assembly
-
24859725T02 PUMP/MOTOR ASSEMBLYPUMP/MOTOR ASSEMBLY
-
25859725T02 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
2632-859647 LINELINE
-
2732-859646 LINELINE
-
2823-31757 BUSHINGBUSHING
