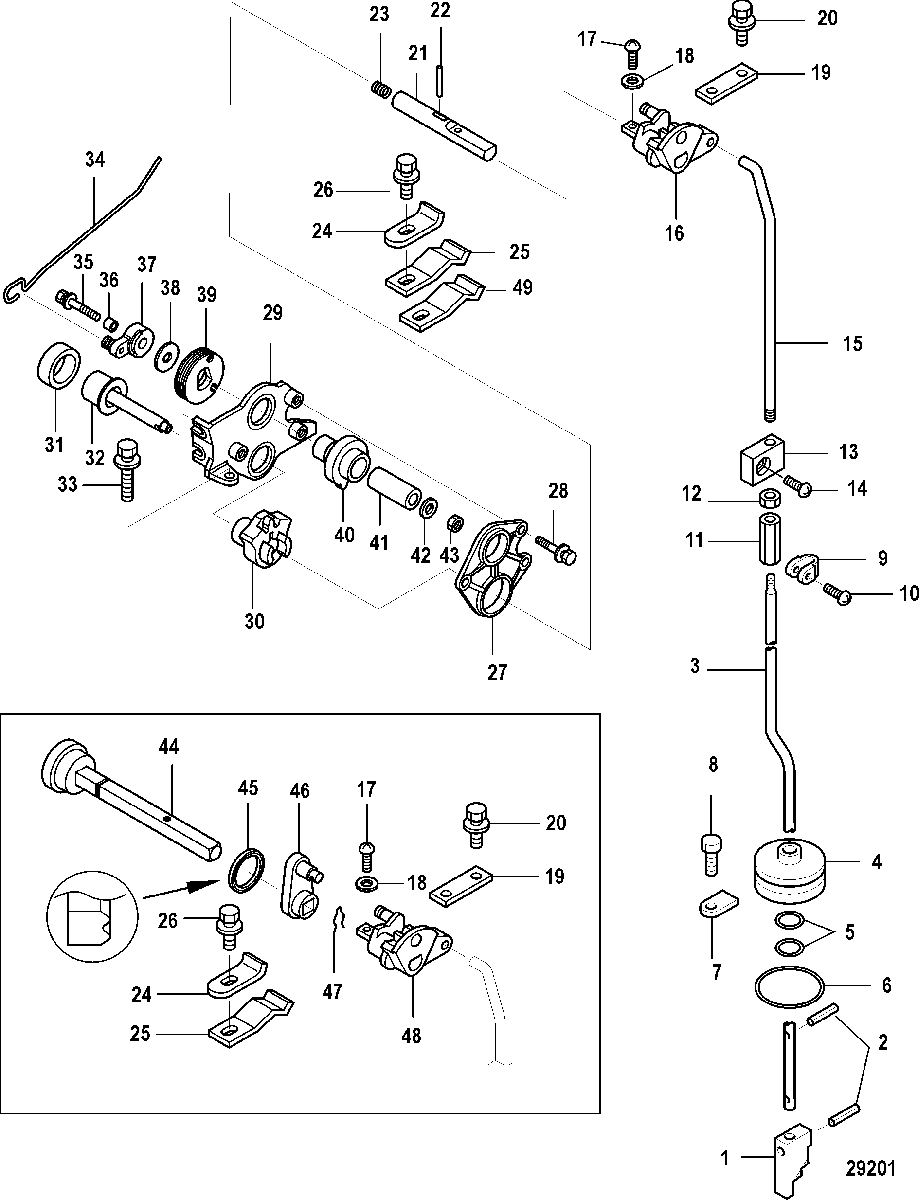

Shift Components, Bigfoot для Mercury - 9.9 (4-STROKE)(209cc) 0P325500 & Up
-
№АртикулНазвание
-
1898103166 CAM, Clutch
Component of Complete Gear Housing SN# 0R163800 & BelowCAM, Clutch
Component of Complete Gear Housing SN# 0R163800 & Below -
1898103166 CAM, Clutch
Component of Complete Gear Housing SN# 0R163801 & UpCAM, Clutch
Component of Complete Gear Housing SN# 0R163801 & Up -
1898103166 CAM, Clutch
Component of Complete Gear Housing SN# 0P490475 & BelowCAM, Clutch
Component of Complete Gear Housing SN# 0P490475 & Below -
1898103166 CAM, Clutch
Component of Complete Gear Housing SN# 0P490476 & UpCAM, Clutch
Component of Complete Gear Housing SN# 0P490476 & Up -
217-16179 PIN
Component of Complete Gear HousingPIN
Component of Complete Gear Housing -
3803760010 ROD, Cam
Long-Component of Complete Gear HousingROD, Cam
Long-Component of Complete Gear Housing -
3803760011 ROD, Cam
X-Long-Component of Complete Gear Housing-Component of X-Long Extension Housing KitROD, Cam
X-Long-Component of Complete Gear Housing-Component of X-Long Extension Housing Kit -
423-803761 BUSHING
Component of Complete Gear HousingBUSHING
Component of Complete Gear Housing -
525-161772 O-RING
Component of Complete Gear HousingO-RING
Component of Complete Gear Housing -
625-8537096 O-RING
Component of Complete Gear HousingO-RING
Component of Complete Gear Housing -
7803762 CLAMP
Component of Complete Gear HousingCLAMP
Component of Complete Gear Housing -
810-898103153 SCREW
Component of Complete Gear HousingSCREW
Component of Complete Gear Housing -
9810753004 STOPPERSTOPPER
-
1010-855544018 SCREWSCREW
-
11803767002 COUPLERCOUPLER
-
1211-16081 NUT, Stainless SteelNUT, Stainless Steel
-
13804906001 LOCK , ReverseLOCK , Reverse
-
1410-879194329 SCREWSCREW
-
15803766003 SHIFT SHAFT, UpperSHIFT SHAFT, Upper
-
16802971001 SHIFT DETENTSHIFT DETENT
-
1710-855544014 SCREWSCREW
-
1812-16335 WASHERWASHER
-
19895157 BRACKETBRACKET
-
2010-8230427 BOLTBOLT
-
21892771 SHAFTSHAFT
-
2217-16085003 PINPIN
-
2324-813028003 SPRINGSPRING
-
248518641 CLAMP
SN# 0R163800 & BelowCLAMP
SN# 0R163800 & Below -
24803756003 CLAMP
SN# 0R163801 & UpCLAMP
SN# 0R163801 & Up -
248518641 CLAMP
SN# 0P490475 & BelowCLAMP
SN# 0P490475 & Below -
24803756003 CLAMP
SN# 0P490476 & UpCLAMP
SN# 0P490476 & Up -
25803756002 SHIFT DETENT
SN# 0R163800 & BelowSHIFT DETENT
SN# 0R163800 & Below -
25803756004 SHIFT DETENT
SN# 0R163801 & UpSHIFT DETENT
SN# 0R163801 & Up -
25803756002 SHIFT DETENT
SN# 0P490475 & BelowSHIFT DETENT
SN# 0P490475 & Below -
25803756004 SHIFT DETENT
SN# 0P490476 & UpSHIFT DETENT
SN# 0P490476 & Up -
2610-8230427 BOLTBOLT
-
27895159 GEAR PLATEGEAR PLATE
-
2810-823042 BOLT, Stainless SteelBOLT, Stainless Steel
-
29895158 GEAR PLATEGEAR PLATE
-
30895161 GEAR, DrivenGEAR, Driven
-
3126-16219002 SEALSEAL
-
32892772 KNOBKNOB
-
3310-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
34803574002 ROD, ThrottleROD, Throttle
-
3510-8M0102279 BOLT, Stainless SteelBOLT, Stainless Steel
-
3623-895126 COLLAR, (6 mm)COLLAR, (6 mm)
-
37803572001 OPENER, ThrottleOPENER, Throttle
-
3812-953921 WASHERWASHER
-
39895101401 DRUM, ThrottleDRUM, Throttle
-
40895101400 GEAR, DriveGEAR, Drive
-
4123-895162001 COLLAR, SteelCOLLAR, Steel
-
4212-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
4311-8537227 NUT, NylonNUT, Nylon
-
44851865003 SHIFT SHAFT
Remote ControlSHIFT SHAFT
Remote Control -
4526-16219003 SEAL
Remote ControlSEAL
Remote Control -
46803763005 LEVER, Shift
Remote Control SN# 0R163800 & BelowLEVER, Shift
Remote Control SN# 0R163800 & Below -
46898101904 LEVER, Shift
Remote Control SN# 0R163801 & UpLEVER, Shift
Remote Control SN# 0R163801 & Up -
46803763005 LEVER, Shift
Remote Control SN# 0P490475 & BelowLEVER, Shift
Remote Control SN# 0P490475 & Below -
46898101904 LEVER, Shift
Remote Control SN# 0P490476 & UpLEVER, Shift
Remote Control SN# 0P490476 & Up -
4754-851863 CLIPCLIP
-
48802971002 SHIFT DETENTSHIFT DETENT
-
49803756004 SHIFT DETENT
SN# 0R163801 & UpSHIFT DETENT
SN# 0R163801 & Up -
49803756004 SHIFT DETENT
SN# 0P490476 & UpSHIFT DETENT
SN# 0P490476 & Up -
-27-8M0082884 GASKET SET, Lower UnitGASKET SET, Lower Unit
