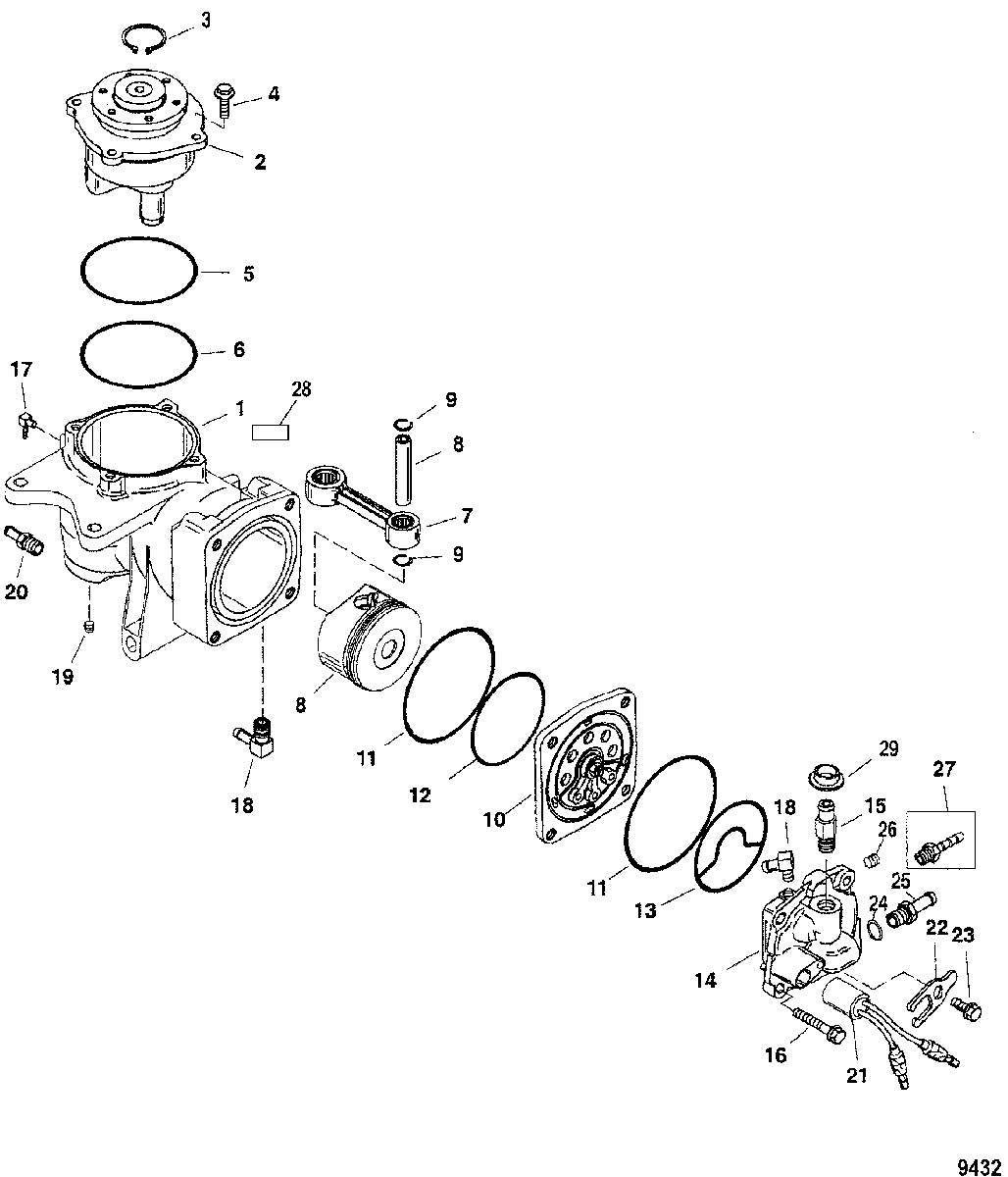

Air Compressor Components для Mercury - V-135 DFI (2.5L) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
18M0060053 COMPRESSOR ASSEMBLY, AirCOMPRESSOR ASSEMBLY, Air
-
21100-8M0050792 END CAP ASSEMBLYEND CAP ASSEMBLY
-
3NSS NOT SOLD SEPARATE, Retaining RingNOT SOLD SEPARATE, Retaining Ring
-
410-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
525-89224 O-RINGO-RING
-
625-832804 O-RING, (2.739 x .070)O-RING, (2.739 x .070)
-
7653-833146T06 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
8828222A4 PISTON ASSEMBLYPISTON ASSEMBLY
-
953-8348101 RING, LockRING, Lock
-
10835088A10 REED PLATE ASSEMBLYREED PLATE ASSEMBLY
-
1125-67207 O-RING, (3.489 x .070)O-RING, (3.489 x .070)
-
1225-832804 O-RING, (2.739 x .070)O-RING, (2.739 x .070)
-
1326-828225 SEALSEAL
-
148M0073890 HEAD, CompressorHEAD, Compressor
-
1522-8307532 FITTING, StraightFITTING, Straight
-
1610-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1722-15133 FITTINGFITTING
-
1822-14868 FITTINGFITTING
-
1922-390721 PLUGPLUG
-
2022-16604 FITTING, Straight (.125-27)FITTING, Straight (.125-27)
-
2113536A12 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
22137151 RETAINERRETAINER
-
2310-81893412 SCREW, (M8 x 12)SCREW, (M8 x 12)
-
2425-831985 O-RING, (.468 x .078)
SN# 0G699835 & UpO-RING, (.468 x .078)
SN# 0G699835 & Up -
2522-856744 FITTING
SN# 0G699835 & UpFITTING
SN# 0G699835 & Up -
2622-390721 PLUG
SN# 0G699835 & UpPLUG
SN# 0G699835 & Up -
2722-835454 FITTING, Straight
SN# 0G699834 & BelowFITTING, Straight
SN# 0G699834 & Below -
28NSS NOT SOLD SEPARATE, DecalNOT SOLD SEPARATE, Decal
-
2925-855349002 GROMMETGROMMET
-
-25-832804A03 O-RING KITO-RING KIT
