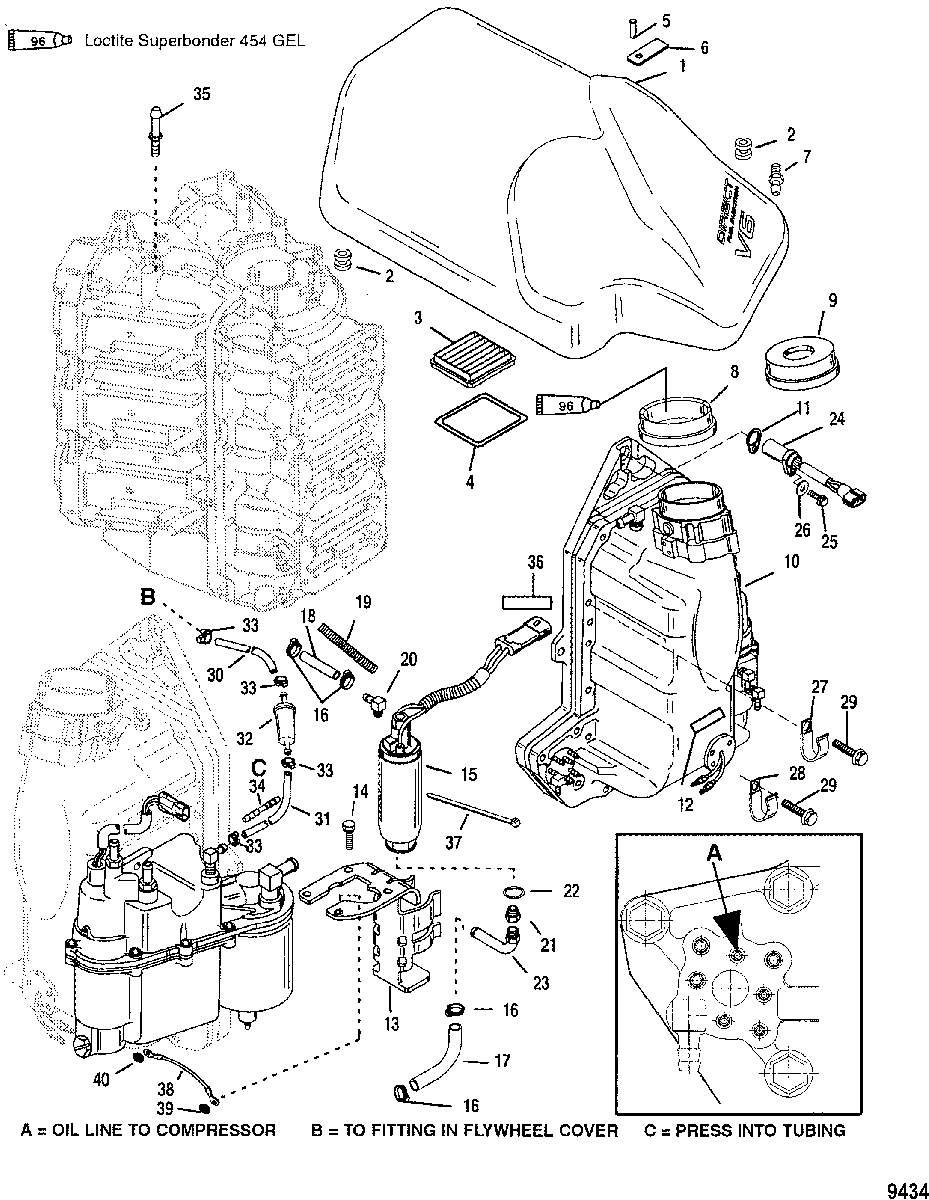

Air Handler для Mercury - V-135 DFI (2.5L) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1827325A7 COVER ASSEMBLYCOVER ASSEMBLY
-
225-821555001 GROMMETGROMMET
-
335-853333T FILTER, AirFILTER, Air
-
4853352 COVERCOVER
-
517-855590 RIVETRIVET
-
6854633 RETAINERRETAINER
-
722-64705 FITTINGFITTING
-
825-855613 GROMMET
(150)GROMMET
(150) -
925-8556131 GROMMET
(135)GROMMET
(135) -
10855633A15 AIR HANDLER ASSEMBLY
(SEE BREAKDOWN ON AIR HANDLER COMPONENTS)AIR HANDLER ASSEMBLY
(SEE BREAKDOWN ON AIR HANDLER COMPONENTS) -
1115-856139 SHIM
(.020 THICK)SHIM
(.020 THICK) -
1115-8561391 SHIM
(.010 THICK)SHIM
(.010 THICK) -
12NSS NOT SOLD SEPARATE, Decal-Caution-Start in GearNOT SOLD SEPARATE, Decal-Caution-Start in Gear
-
13855756A1 BRACKETBRACKET
-
1410-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
158M0047624 PUMP ASSEMBLYPUMP ASSEMBLY
-
1654-13791 CLAMP, (15.7)CLAMP, (15.7)
-
1732-1350385 TUBING, (33.00 Inches Bulk) (5-1/2 IN.)TUBING, (33.00 Inches Bulk) (5-1/2 IN.)
-
1832-85564361 HOSE (18 IN.)HOSE (18 IN.)
-
1923-83312531 INSULATING SLEEVEINSULATING SLEEVE
-
2022-855802A1 ELBOWELBOW
-
2122-805026A1 FITTINGFITTING
-
2225-805062 O-RING, (.530 x .082)O-RING, (.530 x .082)
-
2322-8554247 FITTINGFITTING
-
248285581 ENCODERENCODER
-
2510-418051 SCREW, (#10-24 x .620)SCREW, (#10-24 x .620)
-
2612-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2754-97224 J CLIP (UPPER STBD.)J CLIP (UPPER STBD.)
-
2854-814634 CLAMP (LOWER)CLAMP (LOWER)
-
2910-817504 SCREW, (.250-20 x 1.500) Stainless SteelSCREW, (.250-20 x 1.500) Stainless Steel
-
3032-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 1-1/2 Inches)HOSE, (57.00 Inches Bulk) (Cut to 1-1/2 Inches)
-
3132-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 5 Inches)HOSE, (57.00 Inches Bulk) (Cut to 5 Inches)
-
3235-855896T CANISTER, VentCANISTER, Vent
-
3354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3422-860273 CONNECTORCONNECTOR
-
358215832 PINPIN
-
3637-855577A26 DECAL, EPA Label Information
(1998)DECAL, EPA Label Information
(1998) -
3761990 TIE STRAP, (14.00 Inches)TIE STRAP, (14.00 Inches)
-
3884-88807A27 CABLE ASSEMBLYCABLE ASSEMBLY
-
3912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4012-12038 WASHERWASHER
-
-804545R99 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
