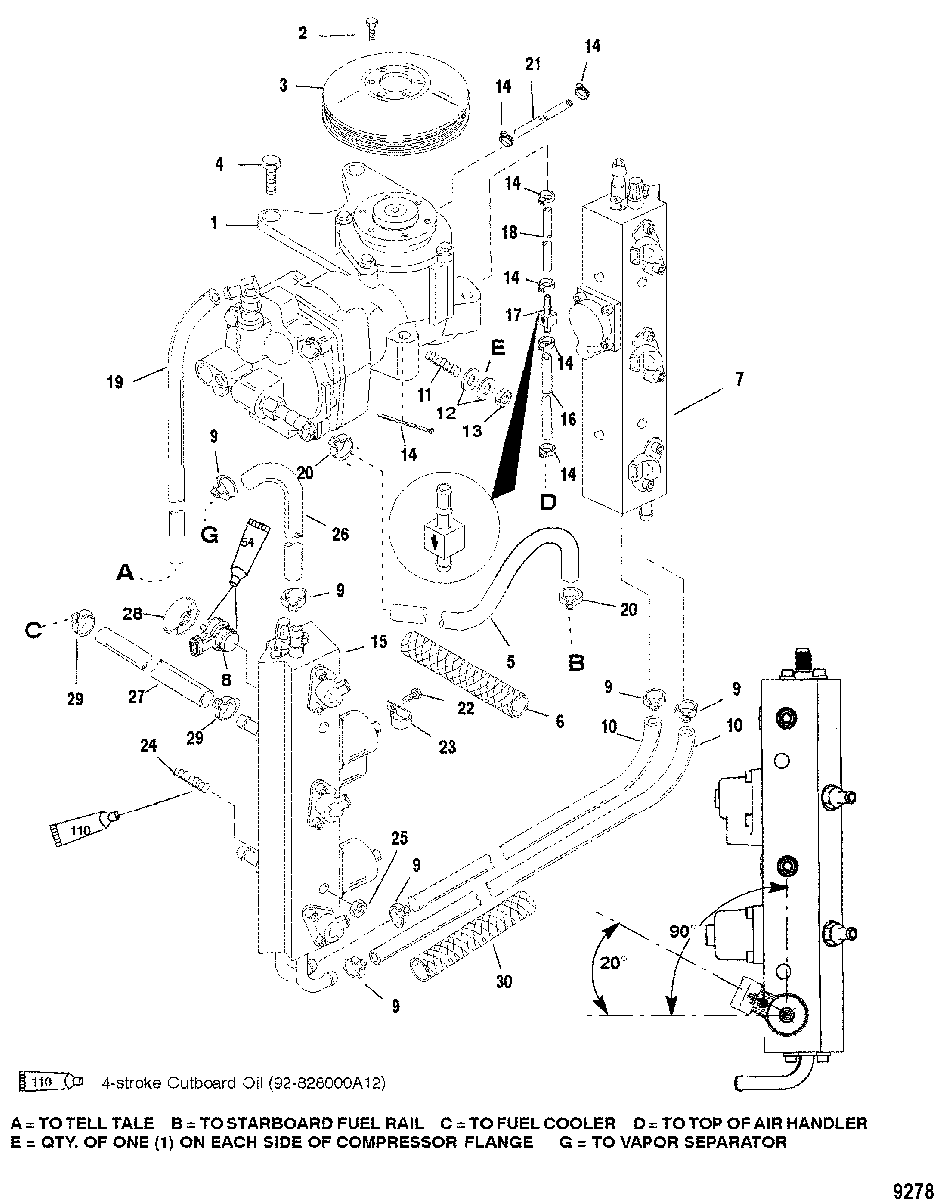

Fuel Rails для Mercury - V-135 DFI (2.5L) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
18M0060053 COMPRESSOR ASSEMBLY, Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)COMPRESSOR ASSEMBLY, Air (SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)
-
210-85593912 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
38328233 PULLEYPULLEY
-
410-4010825 SCREW, (M10 x 25) Hex Flange - Stainless SteelSCREW, (M10 x 25) Hex Flange - Stainless Steel
-
532-8502512 HOSEHOSE
-
623-85652329 INSULATOR SLEEVE (15 IN.)INSULATOR SLEEVE (15 IN.)
-
7852379T6 FUEL RAIL
(STARBOARD)FUEL RAIL
(STARBOARD) -
88M6001743 INJECTORINJECTOR
-
954-855697 CLAMP (16.2)CLAMP (16.2)
-
1032-85564361 HOSE (16 IN.)HOSE (16 IN.)
-
1116-92345 STUDSTUD
-
1212-854640 WASHER, SpecialWASHER, Special
-
1311-82670911 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
-
1454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
15852378T6 FUEL RAIL
(PORT)FUEL RAIL
(PORT) -
1632-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 22-1/2 Inches)HOSE, (57.00 Inches Bulk) (Cut to 22-1/2 Inches)
-
1721-826810 CHECK VALVECHECK VALVE
-
1832-8M0108349 TUBING, (28.00 Inches Bulk) (Cut to 2-1/2 Inches)TUBING, (28.00 Inches Bulk) (Cut to 2-1/2 Inches)
-
1932-83476463 TUBING, (32.00 Inches Bulk) (Cut to 28-1/2 Inches)TUBING, (32.00 Inches Bulk) (Cut to 28-1/2 Inches)
-
2054-856880 CLAMP, Hose (15.3)CLAMP, Hose (15.3)
-
2132-8M0054152 TUBING, (36.00 Inches Bulk) (28-1/2 IN.)TUBING, (36.00 Inches Bulk) (28-1/2 IN.)
-
2210-82104510 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
2354-46997 CLAMPCLAMP
-
2416-8M0063255 STUDSTUD
-
2511-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
26NSS NOT SOLD SEPARATE, Hose (30 IN.)
(DESIGN I - 3/8 IN. I.D. - REFER TO SERVICE BULLETIN 98-8)NOT SOLD SEPARATE, Hose (30 IN.)
(DESIGN I - 3/8 IN. I.D. - REFER TO SERVICE BULLETIN 98-8) -
2632-856822A3 HOSE (30 IN.)
(DESIGN II - 5/16 IN. I.D. - W/ INSULATING SLEEVE)HOSE (30 IN.)
(DESIGN II - 5/16 IN. I.D. - W/ INSULATING SLEEVE) -
2732-855848A1 HOSEHOSE
-
2812-828694A1 WASHER ASSEMBLY, CuppedWASHER ASSEMBLY, Cupped
-
2954-856880 CLAMP, Hose (15.3)CLAMP, Hose (15.3)
-
3023-85686953 SLEEVE, (27.00 Inches Bulk) (Cut to 18 Inches)SLEEVE, (27.00 Inches Bulk) (Cut to 18 Inches)
