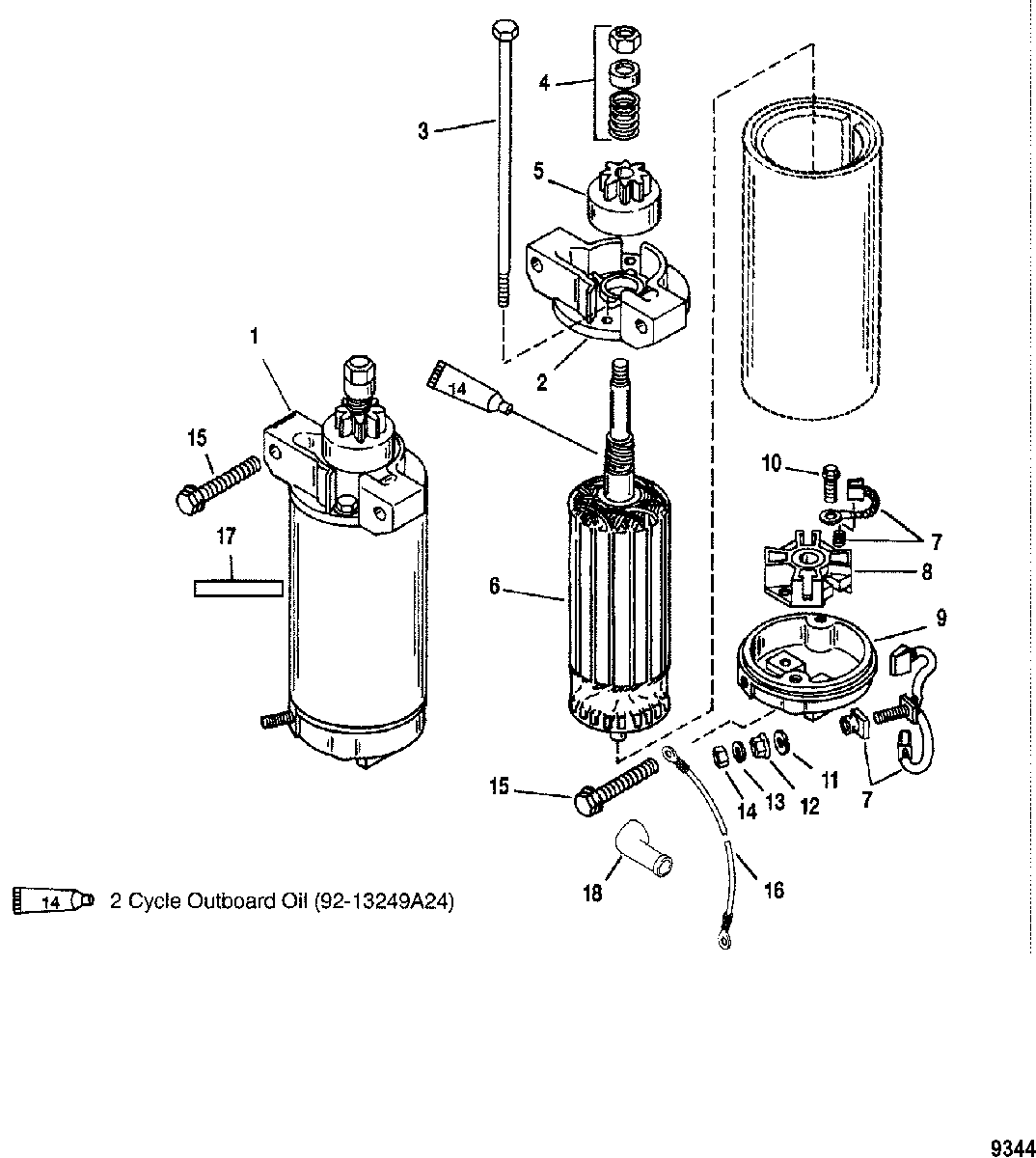

Starter Motor для Mercury - V-135 DFI (2.5L) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
150-898265008 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
28236392 DRIVE CAPDRIVE CAP
-
310-8236411 THRU BOLTTHRU BOLT
-
48236401 DRIVE KITDRIVE KIT
-
5898265015 PINIONPINION
-
68236381 ARMATUREARMATURE
-
7898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
8898265014 HOLDERHOLDER
-
98119011 CAP, CommutatorCAP, Commutator
-
10F15158 SCREWSCREW
-
1113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1211-20890 NUT, (.250-20) (1/4-20)NUT, (.250-20) (1/4-20)
-
1313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1411-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1510-853958 SCREW (5/16-18 X 1-3/4)SCREW (5/16-18 X 1-3/4)
-
1684-88439A26 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
1737-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
-
1885-830233 BOOT, Insulator - RedBOOT, Insulator - Red
