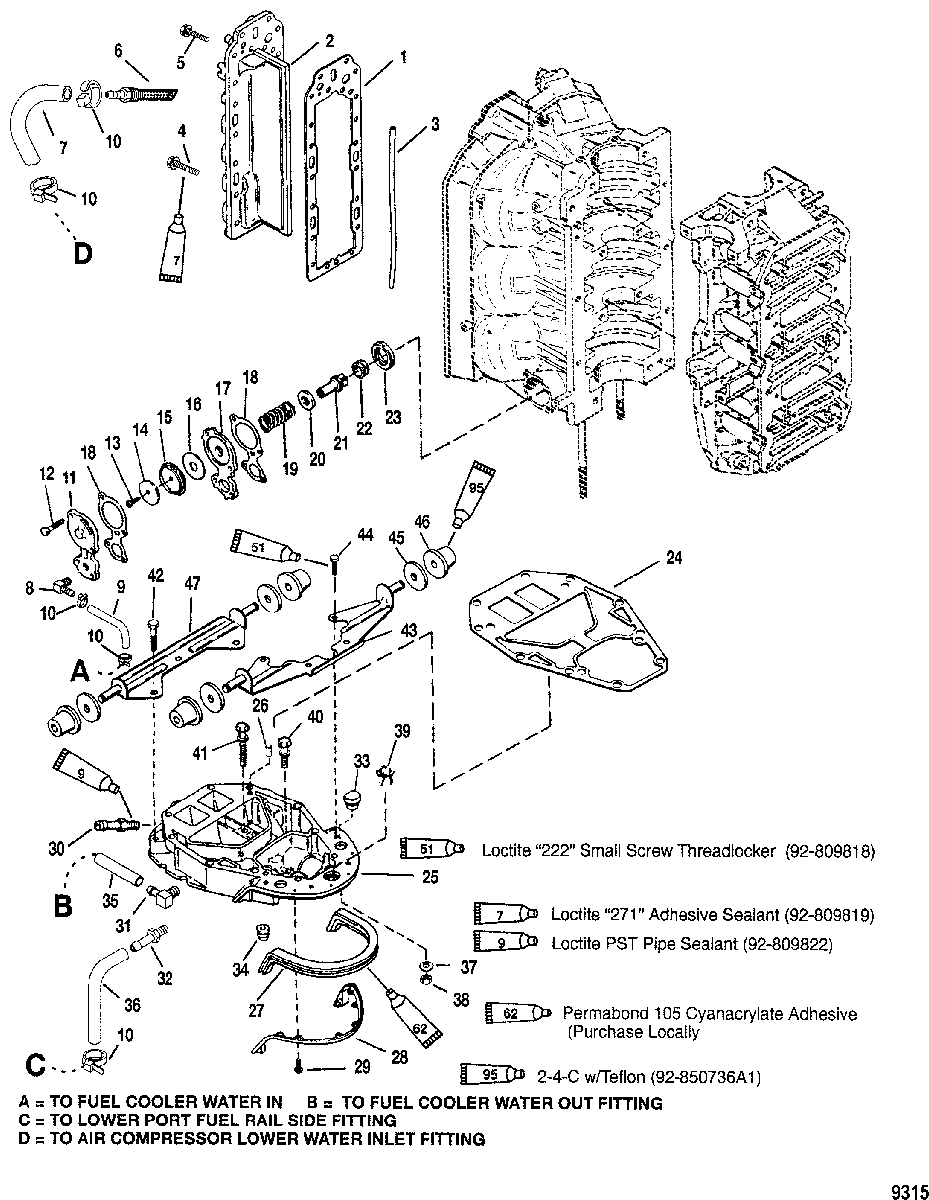

Exhaust Manifold and Exhaust Plate для Mercury - V-135 DFI (2.5L) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
127-190503 GASKETGASKET
-
2828343T3 PLATE, Exhaust DividerPLATE, Exhaust Divider
-
326-814754 SEAL, (12.50 Inches)SEAL, (12.50 Inches)
-
410-8263561 SCREW AND WASHER, (.312-18 x 1.500)SCREW AND WASHER, (.312-18 x 1.500)
-
510-881190 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
635-8348082 STRAINERSTRAINER
-
732-8M0108349 TUBING, (28.00 Inches Bulk) (Cut to 4-1/2 Inches)TUBING, (28.00 Inches Bulk) (Cut to 4-1/2 Inches)
-
822-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
932-77653101 HOSE, (59.00 Inches Bulk) (21-1/2 IN.)HOSE, (59.00 Inches Bulk) (21-1/2 IN.)
-
1054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
118M0039767 COVERCOVER
-
1210-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
1310-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
1412-76451 WASHERWASHER
-
15144791 DIAPHRAGMDIAPHRAGM
-
1616496 DEFLECTOR, WaterDEFLECTOR, Water
-
1716497A1 PLATEPLATE
-
1827-78690002 GASKETGASKET
-
1924-64878 SPRINGSPRING
-
2012-85303 WASHERWASHER
-
2114480 POPPETPOPPET
-
2225-64872 GROMMETGROMMET
-
2365848 CARRIERCARRIER
-
2427-991764 GASKETGASKET
-
25850814T1 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
2617-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
278M0043164 SEALSEAL
-
28680101 BRACKETBRACKET
-
2910-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3022-89772 CONNECTOR, (.125-27) (STRAIGHT)(BACK)CONNECTOR, (.125-27) (STRAIGHT)(BACK)
-
3122-629101 FITTING, Elbow - 90 Degree (.125-27) (STARBOARD-TOP HOLE)FITTING, Elbow - 90 Degree (.125-27) (STARBOARD-TOP HOLE)
-
3222-89772 CONNECTOR, (.125-27) (STRAIGHT)(STARBOARD-BOTTOM HOLE)CONNECTOR, (.125-27) (STRAIGHT)(STARBOARD-BOTTOM HOLE)
-
3325-19564001 GROMMETGROMMET
-
3425-19565002 GROMMETGROMMET
-
3532-77653101 HOSE, (59.00 Inches Bulk) (25 IN.)HOSE, (59.00 Inches Bulk) (25 IN.)
-
3632-852759 HOSEHOSE
-
3712-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
3811-69254 NUTNUT
-
3923-27132 BUSHINGBUSHING
-
4010-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
4110-68783 SCREW, (.312-18 x 2.50)SCREW, (.312-18 x 2.50)
-
4210-898833 SCREW, (.375-16 x 3.50)SCREW, (.375-16 x 3.50)
-
43812905T BRACKET ASSEMBLY, FrontBRACKET ASSEMBLY, Front
-
4410-8055571 SCREW, (.3125-18 x .50)SCREW, (.3125-18 x .50)
-
4512-187031 WASHERWASHER
-
4625-18778001 GROMMETGROMMET
-
4718578T09 BRACKET ASSEMBLY, RearBRACKET ASSEMBLY, Rear
-
-27-8M0046714 GASKET SETGASKET SET
-
-804545R99 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
