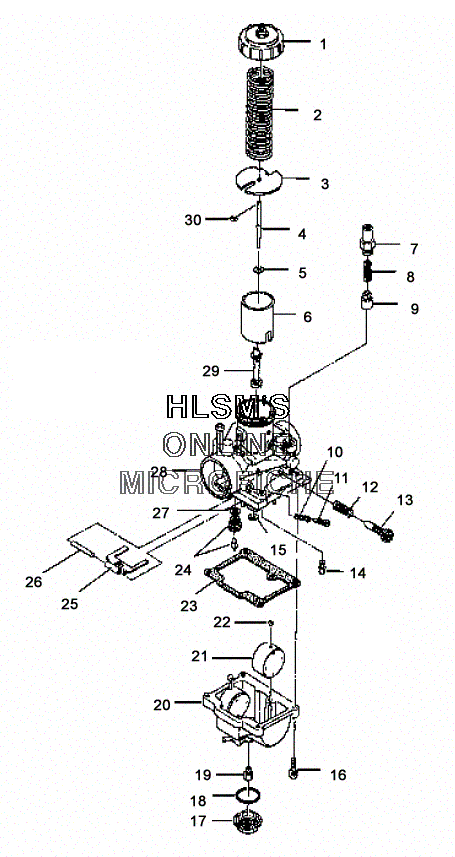

CARBURETOR для Polaris TRAIL BLAZER (A00BA25CA) - 2000 года выпуска
-
№АртикулНазвание
-
13130060 TOP, MIX CHAMBERTOP, MIX CHAMBER
-
23130354 SPRING, THROTTLESPRING, THROTTLE
-
33130002 PLATE, THROTTLEPLATE, THROTTLE
-
43130356 JET NEEDLEJET NEEDLE
-
53130355 WASHERWASHER
-
63130420 VALVE, THROTTLE (2.0)VALVE, THROTTLE (2.0)
-
73130359 CAP, PLUNGERCAP, PLUNGER
-
83130006 SPRING, PLUNGERSPRING, PLUNGER
-
93130328 PLUNGER ASSY., STARTERPLUNGER ASSY., STARTER
-
103130012 SPRING, AIR ADJUSTSPRING, AIR ADJUST
-
113130011 SCREW, AIRSCREW, AIR
-
123130010 SPRING, THROTTLE ADJUSTSPRING, THROTTLE ADJUST
-
133130324 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
143130067 JET, PILOTJET, PILOT
-
153130014 WASHERWASHER
-
163130025 SCREW AND WASHERSCREW AND WASHER
-
173130321 BOLT, BANJOBOLT, BANJO
-
183130239 O-RINGO-RING
-
193130662 JET, MAIN HEXAGON #130JET, MAIN HEXAGON #130
-
203130441 BOWL, FLOATBOWL, FLOAT
-
213130021 FLOAT ASSY.FLOAT ASSY.
-
223130237 CAPCAP
-
233130020 PACKING, FLOAT CHAMBERPACKING, FLOAT CHAMBER
-
243130360 VALVE, NEEDLEVALVE, NEEDLE
-
253130018 ARM, FLOATARM, FLOAT
-
263130361 PIN, FLOATPIN, FLOAT
-
273130017 PACKINGPACKING
-
283130661 CARBURETOR (INCL. 1-30)CARBURETOR (INCL. 1-30)
-
293130409 JET, NEEDLE, 169 (0-4)JET, NEEDLE, 169 (0-4)
-
303130003 E-RINGE-RING
