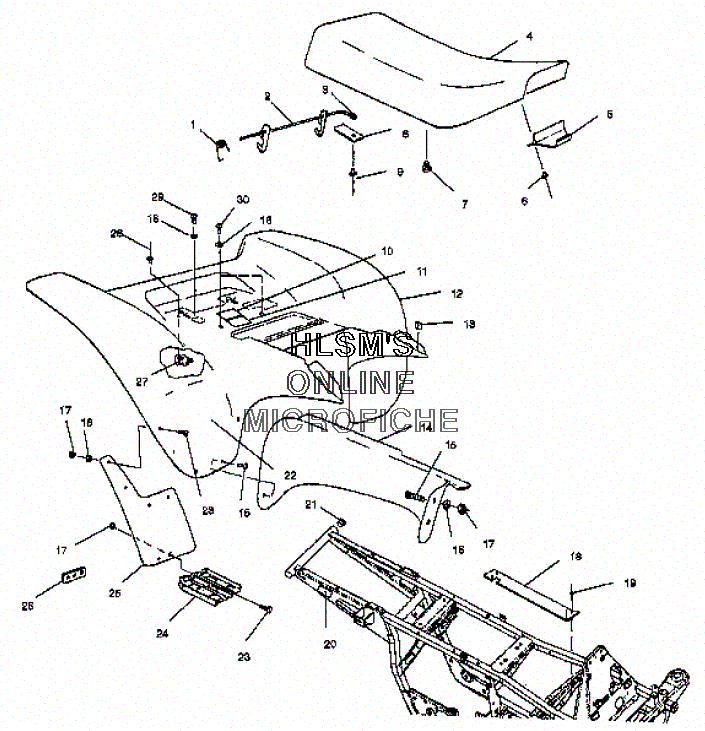

FENDER - REAR W/ SEAT для Polaris TRAIL BLAZER (A00BA25CA) - 2000 года выпуска
-
№АртикулНазвание
-
17041607 SPRING, LATCH LIGHTSPRING, LATCH LIGHT
-
21040412-067 LATCH, SEATBACKLATCH, SEATBACK
-
35411392 CAP, SEAT LATCH (GEN 3)CAP, SEAT LATCH (GEN 3)
-
42682430-053 SEAT (MED. YELLOW)SEAT (MED. YELLOW)
-
42681769-053 COVER, SEAT (MED. YELLOW)COVER, SEAT (MED. YELLOW)
-
55431986 TONGUE, SEATTONGUE, SEAT
-
67621479 RIVETRIVET
-
75410414 BUMPER, RUBBERBUMPER, RUBBER
-
85211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
97621403 BLIND RIVETBLIND RIVET
-
107073761 DECAL, CARBURETOR INFO.DECAL, CARBURETOR INFO.
-
117072791 DECAL, FILTER ELEMENTDECAL, FILTER ELEMENT
-
125434014-133 FENDER, GEN 3 (REAR/BRIGHT WHITE) (BUILT AFTER 7/06/00)FENDER, GEN 3 (REAR/BRIGHT WHITE) (BUILT AFTER 7/06/00)
-
137670057 NUT, SPEEDNUT, SPEED
-
145432278-070 SHIELD MUFFLER/FOIL ASSY. (GEN 3)SHIELD MUFFLER/FOIL ASSY. (GEN 3)
-
157517264 SCREWSCREW
-
167555859 WASHER, FLATWASHER, FLAT
-
177542122 NUT, LOCKNUT, LOCK
-
185241403-067 GUARD, CLUTCH (BLACK)GUARD, CLUTCH (BLACK)
-
197661638 RIVET, INTERLOCKRIVET, INTERLOCK
-
202670133 REFLECTOR ASSY. (RED)REFLECTOR ASSY. (RED)
-
215432831 PLUG, END CAP RIBBEDPLUG, END CAP RIBBED
-
225810957 FOIL, REAR CABFOIL, REAR CAB
-
225810991 FOIL, REAR CABFOIL, REAR CAB
-
237512282 BOLT, BLACKBOLT, BLACK
-
255850147 MUDFLAP (REAR/LEFT)MUDFLAP (REAR/LEFT)
-
255850148 MUDFLAP (REAR/RIGHT)MUDFLAP (REAR/RIGHT)
-
265211131-067 BRACKET, MUD FLAP (LEFT)BRACKET, MUD FLAP (LEFT)
-
275220880 BRACKET, HOLDDOWN (REAR)BRACKET, HOLDDOWN (REAR)
-
287621472 RIVETRIVET
-
297512232 BOLTBOLT
-
307512242 SCREWSCREW
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- BUMPER AND SHIELDS - FRONT
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROL PANEL
- CRANKCASE W/ CYLINDER
- CRANKSHAFT W/ PISTON
- DECALS
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- • FENDER - REAR W/ SEAT
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE MOUNTING
- HANDLEBAR
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- OIL PUMP
- OIL TANK
- SHOCK ABSORBER
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
