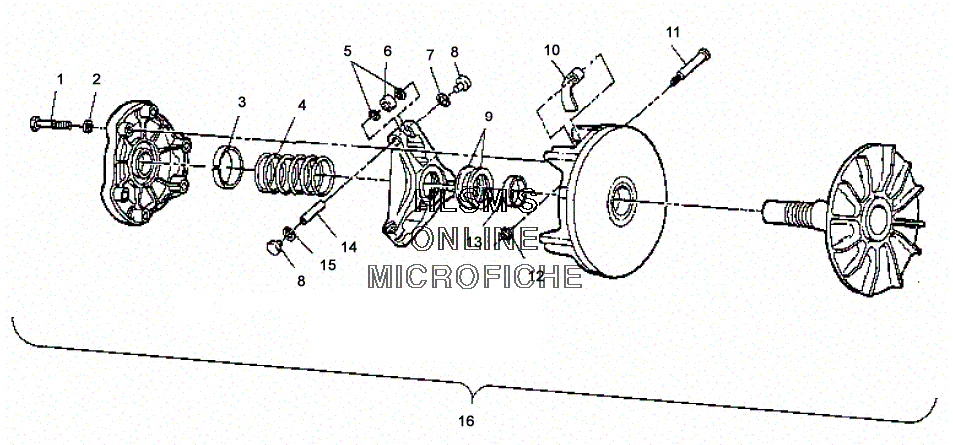

CLUTCH - DRIVE для Polaris TRAIL BLAZER (A00BA25CA) - 2000 года выпуска
-
№АртикулНазвание
-
17512176 SCREWSCREW
-
27552801 LOCK, WASHERLOCK, WASHER
-
33576510 BEARING, COVERBEARING, COVER
-
47041157 SPRING, CLUTCHSPRING, CLUTCH
-
55430945 WASHERWASHER
-
61321457 ROLLER/BUSHING ASSY.ROLLER/BUSHING ASSY.
-
75410610 O-RINGO-RING
-
85430768 BUTTON, GUIDEBUTTON, GUIDE
-
95210752 SPACER (.020) (OPT)SPACER (.020) (OPT)
-
95242981 SPACER (.025) (OPT)SPACER (.025) (OPT)
-
95210753 SPACER (.032) (OPT)SPACER (.032) (OPT)
-
95210754 SPACER (.050) (OPT)SPACER (.050) (OPT)
-
105630514 WT, SHIFT (G)WT, SHIFT (G)
-
117512266 BOLT, SPECIALBOLT, SPECIAL
-
127541906 NUT, FLEX LOCNUT, FLEX LOC
-
133576504 BUSHING, DRIVENBUSHING, DRIVEN
-
145020795 PIN, SPIDERPIN, SPIDER
-
155410609 WASHER, RUBBERWASHER, RUBBER
-
161321635 CLUTCH, DRIVE (INCL. ALL LESS 4, 10)CLUTCH, DRIVE (INCL. ALL LESS 4, 10)
