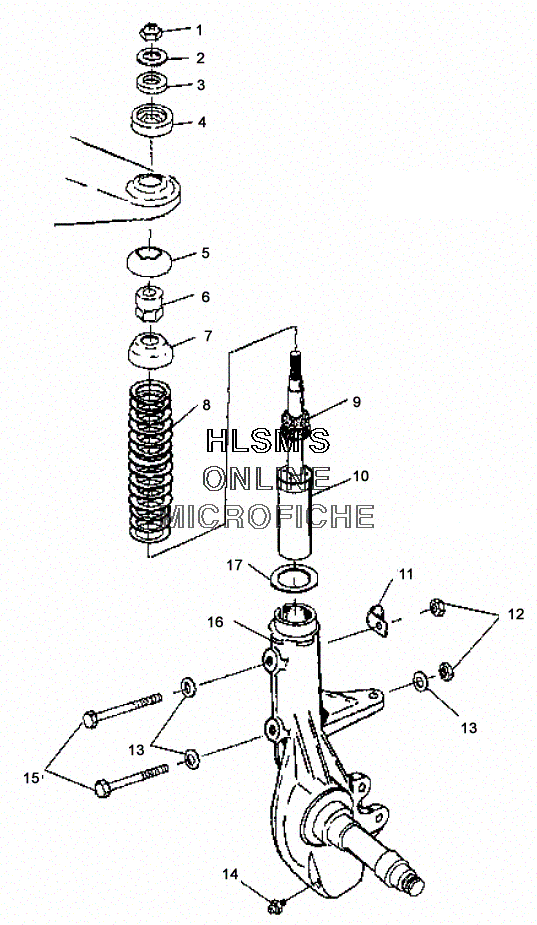

SUSPENSION - FRONT STRUT для Polaris TRAIL BLAZER (A00BA25CA) - 2000 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45430806 PIVOT, BALL (TOP)PIVOT, BALL (TOP)
-
55430807 PIVOT, BALL (BOTTOM)PIVOT, BALL (BOTTOM)
-
65132062 SPACER, STRUT (1/2-20)SPACER, STRUT (1/2-20)
-
75243364 RETAINER, SPRING STRUTRETAINER, SPRING STRUT
-
87041850-067 SPRING, COMP (41#/IN) (BLACK)SPRING, COMP (41#/IN) (BLACK)
-
95411608 BUMPER, MCU (17.80MM ID)BUMPER, MCU (17.80MM ID)
-
107041761 STRUT, FRONT (18X30MM, 153.8MM ST)STRUT, FRONT (18X30MM, 153.8MM ST)
-
117080573 CLAMP, RUBBER COATEDCLAMP, RUBBER COATED
-
127542303 NUT, FLEX-LOCNUT, FLEX-LOC
-
137558402 WASHER, STEELWASHER, STEEL
-
147080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
157515339 BOLTBOLT
-
165131039 SUPPORT, STRUT/SPINDLE (LEFT)SUPPORT, STRUT/SPINDLE (LEFT)
-
165131040 SUPPORT, STRUT/SPINDLE (RIGHT)SUPPORT, STRUT/SPINDLE (RIGHT)
-
175211115 WASHER, SPRING RETAINERWASHER, SPRING RETAINER
