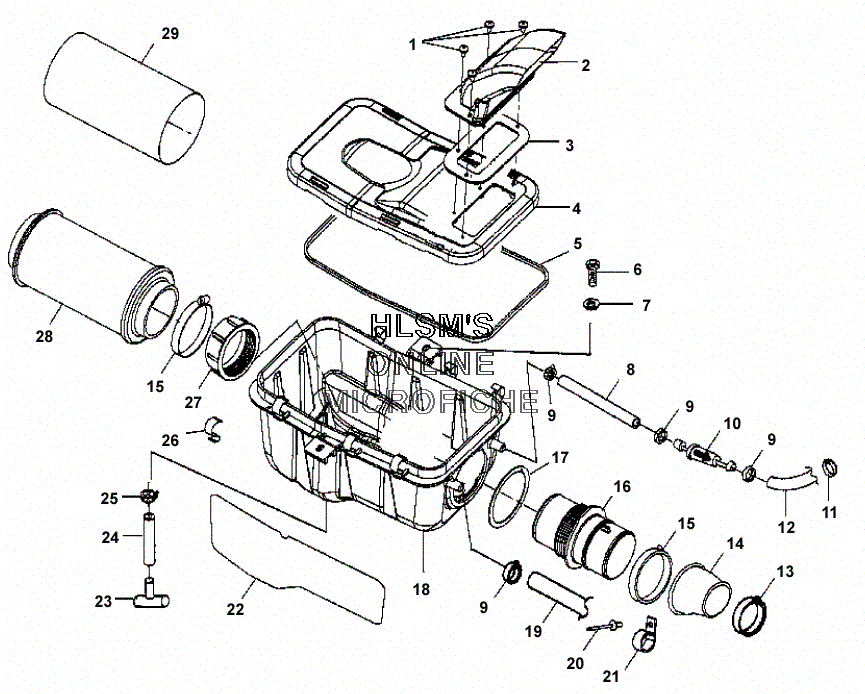

AIR BOX ASSY. для Polaris SCRAMBLER 500 4X4 (A03BG50AA) - 2003 года выпуска
-
№АртикулНазвание
-
17517541 SCREW, SEMSSCREW, SEMS
-
25432859 DUCT, INLET AIR BOX COVERDUCT, INLET AIR BOX COVER
-
35411422 GASKET, INTAKEGASKET, INTAKE
-
45432868 COVER, AIRBOXCOVER, AIRBOX
-
55811482 SEAL, AIR BOX COVERSEAL, AIR BOX COVER
-
67515179 SCREWSCREW
-
77558301 WASHER, FLATWASHER, FLAT
-
88450073-600 LINE, BREATHER (3/8 ID.) (OPT.)LINE, BREATHER (3/8 ID.) (OPT.)
-
97080699 CLAMP, HOSECLAMP, HOSE
-
102530029 FILTER, BREATHER IN LINEFILTER, BREATHER IN LINE
-
117080694 CLAMP, HOSE SPRINGCLAMP, HOSE SPRING
-
125411847 HOSE, BREATHER FORMED W/ CHAFEHOSE, BREATHER FORMED W/ CHAFE
-
137080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
145411414 BOOT, CARBURETOR 500 HYBRIDBOOT, CARBURETOR 500 HYBRID
-
157080413 CLAMP, BAND NARROWCLAMP, BAND NARROW
-
165432473 DUCT, CARBURETOR INLETDUCT, CARBURETOR INLET
-
175830128 GASKET, CARBURETOR IN.DUCTGASKET, CARBURETOR IN.DUCT
-
185432774 BOX, AIR INT 4 STROKEBOX, AIR INT 4 STROKE
-
195411873 HOSE, BREATHER SLIT (63CM/ 3/8I.D)HOSE, BREATHER SLIT (63CM/ 3/8I.D)
-
207621432 RIVETRIVET
-
217080880 CLAMP, HOSE .625 DIA VINAL COATEDCLAMP, HOSE .625 DIA VINAL COATED
-
225811650 FOIL, AIR BOXFOIL, AIR BOX
-
235432377 PLUG, TRAPPLUG, TRAP
-
248450059-150 FUEL LINE (OPT.)FUEL LINE (OPT.)
-
257080650 CLAMP, HOSECLAMP, HOSE
-
265242044 CLIP, AIR BOXCLIP, AIR BOX
-
275432601 COLLAR, CARBURETOR INLETCOLLAR, CARBURETOR INLET
-
287080595 FILTER, AIR INTAKEFILTER, AIR INTAKE
-
295811633 FILTER, PRECLEAN. SLEEVEFILTER, PRECLEAN. SLEEVE
