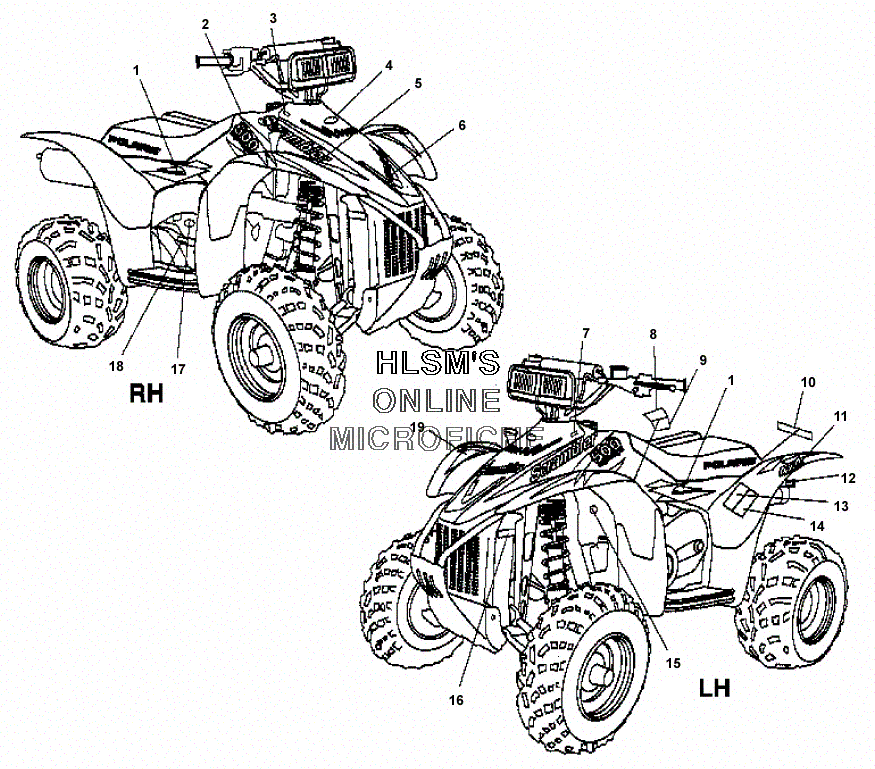

DECALS для Polaris SCRAMBLER 500 4X4 (A03BG50AA) - 2003 года выпуска
-
№АртикулНазвание
-
17170636 DECAL, CAB (REAR/LEFT)DECAL, CAB (REAR/LEFT)
-
17170637 DECAL, CAB (REAR/RIGHT)DECAL, CAB (REAR/RIGHT)
-
2
-
3
-
47078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
57170633 DECAL, SCRAMBLER TANK SIDE (LEFT)DECAL, SCRAMBLER TANK SIDE (LEFT)
-
57170634 DECAL, SCRAMBLER TANK SIDE (RIGHT)DECAL, SCRAMBLER TANK SIDE (RIGHT)
-
67170635 DECAL, ''500'' COVER (FRONT)DECAL, ''500'' COVER (FRONT)
-
7
-
8
-
9
-
107079930 DECAL, ''POLARIS'' (REAR/WHITE)DECAL, ''POLARIS'' (REAR/WHITE)
-
117170640 DECAL, FENDER ''4X4'' (REAR/LEFT)DECAL, FENDER ''4X4'' (REAR/LEFT)
-
117170641 DECAL, FENDER ''4X4'' (REAR/RIGHT)DECAL, FENDER ''4X4'' (REAR/RIGHT)
-
127079925 DECAL, REFLECT.2.88 (RED)DECAL, REFLECT.2.88 (RED)
-
137079088 DECAL, TIRE PRESS/LOADDECAL, TIRE PRESS/LOAD
-
14
-
157074637 DECAL, FUEL LEVERDECAL, FUEL LEVER
-
167079924 DECAL, REFLECT.2.88 (AMBER)DECAL, REFLECT.2.88 (AMBER)
-
177077791 DECAL, CONCENTRIC DRIVE SYSTEMDECAL, CONCENTRIC DRIVE SYSTEM
-
187078577 DECAL, DRAIN RECOILDECAL, DRAIN RECOIL
-
197170638 DECAL, FENDER (FRONT/LEFT)DECAL, FENDER (FRONT/LEFT)
-
197170639 DECAL, FENDER (FRONT/RIGHT)DECAL, FENDER (FRONT/RIGHT)
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- BUMPER AND SHIELDS - FRONT
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROL PANEL
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- • DECALS
- DRIVESHAFT - FRONT
- DRIVESHAFT - INTERMEDIATE
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FOX SHOCK - GAS - RESERVOIR
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE - FRONT
- GEARCASE MOUNTING
- HANDLEBAR - HEADLIGHT
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- OIL FILTER
- OIL PUMP
- OIL TANK
- SHOCK VALVING
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A ARM W/ STRUT MOUNTING
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
