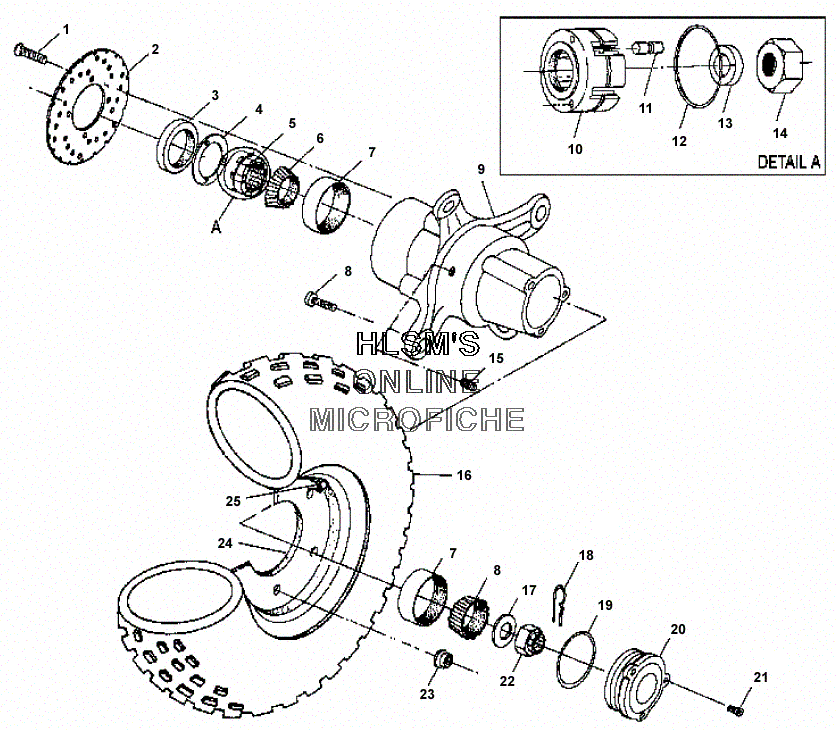

WHEEL - FRONT для Polaris SCRAMBLER 500 4X4 (A03BG50AA) - 2003 года выпуска
-
№АртикулНазвание
-
17512325 BOLTBOLT
-
25243675 DISC, BRAKE (7.21 OD, .158) (IF BUILT BEFORE 7/31/02)DISC, BRAKE (7.21 OD, .158) (IF BUILT BEFORE 7/31/02)
-
25246832 DISC, BRAKE (7.21 OD, .158) (IF BUILT AFTER 7/31/02)DISC, BRAKE (7.21 OD, .158) (IF BUILT AFTER 7/31/02)
-
33610019 SEAL, HUB (FRONT)SEAL, HUB (FRONT)
-
45211148 PLATE, ARMATUREPLATE, ARMATURE
-
51520281 CLUTCH, HUB E/M (FRONT) (SPLINED DRIVE SHAFT)CLUTCH, HUB E/M (FRONT) (SPLINED DRIVE SHAFT)
-
63554506 BEARING, TAPER. ROLL.CONEBEARING, TAPER. ROLL.CONE
-
73554507 BEARING, TAPER ROLL CUPBEARING, TAPER ROLL CUP
-
87515523 STUDSTUD
-
92202595 WHEEL HUB W/ CAP, ASSY. KIT (INCL. 3, 7, 8)WHEEL HUB W/ CAP, ASSY. KIT (INCL. 3, 7, 8)
-
103250028 CAGE, ROLLCAGE, ROLL
-
113250010 ROLLSROLLS
-
123250032 SPRING, GARTERSPRING, GARTER
-
131321814 SPACERSPACER
-
143250030 CAMCAM
-
157052045 PLUG, PIPEPLUG, PIPE
-
165411264 TIRETIRE
-
177556004 WASHERWASHER
-
187661401 COTTER PINCOTTER PIN
-
195410470 O-RINGO-RING
-
205432611 CAP, HUB 3-LOBECAP, HUB 3-LOBE
-
217512027 SCREWSCREW
-
227542810 NUT, SLOTTEDNUT, SLOTTED
-
237542459 NUT, FLANGEDNUT, FLANGED
-
241520175-117 RIM (FRONT/ SILVER)RIM (FRONT/ SILVER)
-
251525017 VALVE, RIMVALVE, RIM
