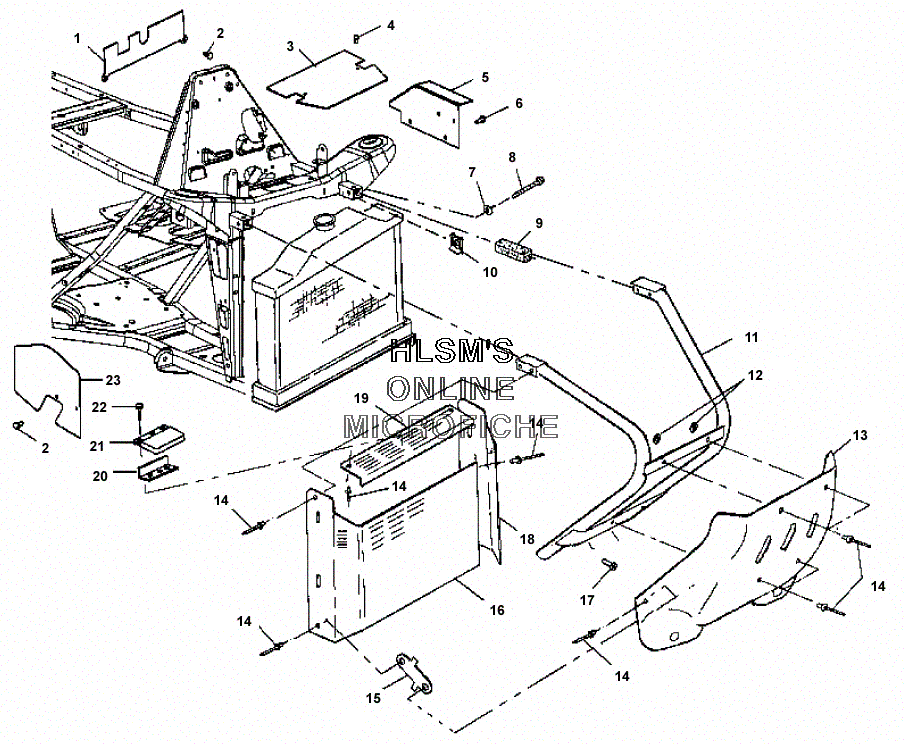

BUMPER AND SHIELDS - FRONT для Polaris SCRAMBLER 500 4X4 (A03BG50AA) - 2003 года выпуска
-
№АртикулНазвание
-
15434162 SHIELD, SPLASH GEN3 (REAR)SHIELD, SPLASH GEN3 (REAR)
-
27670088 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
35434161 SHIELD, SPLASH GEN3 (FRONT)SHIELD, SPLASH GEN3 (FRONT)
-
47522026 SCREWSCREW
-
55245415-067 SHIELD, SPLASH GEN3 (LEFT/ BLACK)SHIELD, SPLASH GEN3 (LEFT/ BLACK)
-
67517386 SCREWSCREW
-
77558402 WASHER FLATWASHER FLAT
-
87512329 BOLTBOLT
-
95811675 PLUG, FRAME FOAMPLUG, FRAME FOAM
-
107547071 NUTNUT
-
111012773-067 BUMPER, GEN 3 (FRONT/ BLACK)BUMPER, GEN 3 (FRONT/ BLACK)
-
127555827 WASHERWASHER
-
135432378-070 PLATE, SKID BUMPER (BLACK)PLATE, SKID BUMPER (BLACK)
-
147661121 RIVETRIVET
-
155242694-067 BRACKET, RADIATOR SHIELD (BLACK)BRACKET, RADIATOR SHIELD (BLACK)
-
165245343-067 SHIELD, RADIATOR SIDE (RIGHT/ BLACK)SHIELD, RADIATOR SIDE (RIGHT/ BLACK)
-
177515399 SCREWSCREW
-
185245342-067 SHIELD, RADIATOR SIDE (LEFT/ BLACK)SHIELD, RADIATOR SIDE (LEFT/ BLACK)
-
195245344-067 SHIELD, RADIATOR (UPPER/ BLACK)SHIELD, RADIATOR (UPPER/ BLACK)
-
205131036 HEATSINK RECT.HEATSINK RECT.
-
214010670 RECTIFIER, REGULATORRECTIFIER, REGULATOR
-
227512018 SCREWSCREW
-
235434085 GUARD, SPALSH GEN 3 (RIGHT)GUARD, SPALSH GEN 3 (RIGHT)
