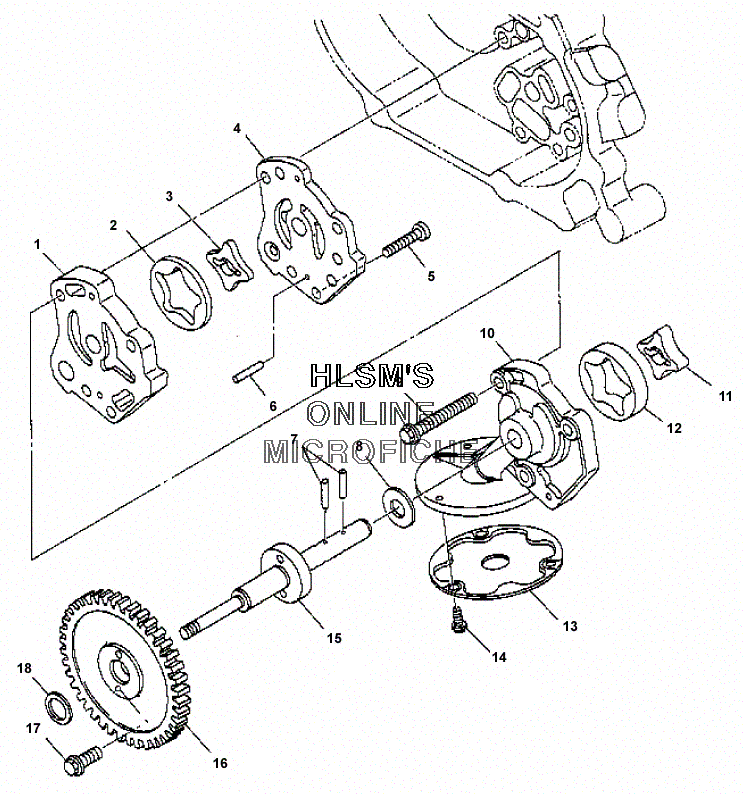

OIL PUMP для Polaris SCRAMBLER 500 4X4 (A03BG50AA) - 2003 года выпуска
-
№АртикулНазвание
-
13084946 CASE #2, OIL PUMPCASE #2, OIL PUMP
-
23084949 ROTOR (OUTER) (FEED)ROTOR (OUTER) (FEED)
-
33084948 ROTOR (INNER) (FEED)ROTOR (INNER) (FEED)
-
43085817 OIL PUMP, ASSY. (INCL. 1, 8, 10, 15)OIL PUMP, ASSY. (INCL. 1, 8, 10, 15)
-
43084945 CASE #1, OIL PUMPCASE #1, OIL PUMP
-
53085535 SCREWSCREW
-
63084955 PIN, DOWELPIN, DOWEL
-
73084954 PIN, DOWELPIN, DOWEL
-
83084953 WASHERWASHER
-
93084962 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
103084947 CASE #3, OIL PUMPCASE #3, OIL PUMP
-
113084950 ROTOR, SCAV. (INNER)ROTOR, SCAV. (INNER)
-
123084951 ROTOR (OUTER)ROTOR (OUTER)
-
133084956 STRAINER UNIT, OILSTRAINER UNIT, OIL
-
143084205 SCREW AND WASHERSCREW AND WASHER
-
153085818 SHAFT, PUMPSHAFT, PUMP
-
163087173 PUMP, GEAR 2PUMP, GEAR 2
-
173085820 BOLT, FLANGEBOLT, FLANGE
-
183084959 SPACER (0.8) (OPT.)SPACER (0.8) (OPT.)
-
183084960 SPACER (1.0) (OPT.)SPACER (1.0) (OPT.)
-
183084961 SPACER (1.2) (OPT.)SPACER (1.2) (OPT.)
