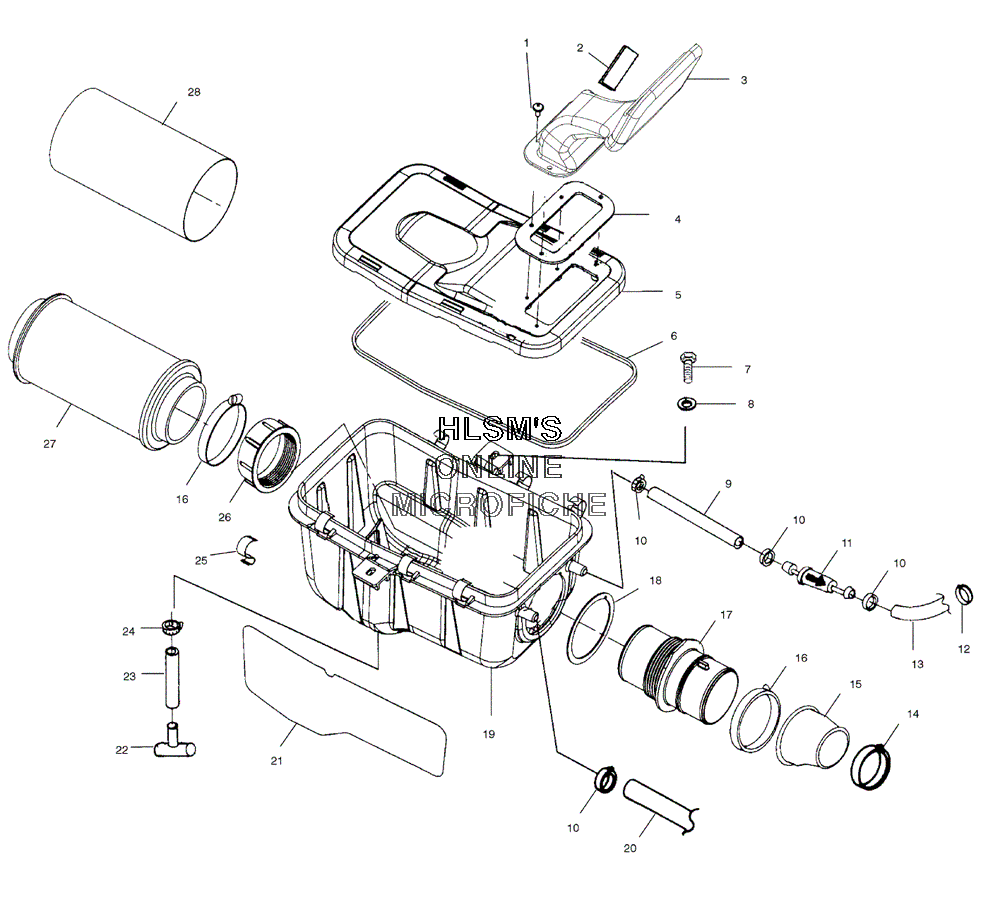

AIR BOX ASSY. для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска
-
№АртикулНазвание
-
17527815 SCREW, TAPPINGSCREW, TAPPING
-
25810455 PAD, RACK MOUNTPAD, RACK MOUNT
-
35433395 DUCT, INLET AIR BOX COVERDUCT, INLET AIR BOX COVER
-
45411422 GASKET, INTAKEGASKET, INTAKE
-
55432868 COVER, AIRBOXCOVER, AIRBOX
-
65811482 SEAL, AIRBOX COVERSEAL, AIRBOX COVER
-
77515179 SCREWSCREW
-
87558301 WASHER, FLATWASHER, FLAT
-
98450073-600 LINE, BREATHER (3/8 ID.) (OPT)LINE, BREATHER (3/8 ID.) (OPT)
-
107080699 CLAMP, HOSECLAMP, HOSE
-
112530029 FILTER, BREATHER IN LINEFILTER, BREATHER IN LINE
-
127080694 CLAMP, HOSE SPRINGCLAMP, HOSE SPRING
-
135411921 HOSE, BREATHER NITRILEHOSE, BREATHER NITRILE
-
147080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
155411540 BOOT, CARBURETOR 425 PIVOTBOOT, CARBURETOR 425 PIVOT
-
167080413 CLAMP, BAND NARROWCLAMP, BAND NARROW
-
175432473 DUCT, CARBURETOR INLETDUCT, CARBURETOR INLET
-
185830128 GASKET, CARBURETOR IN.DUCTGASKET, CARBURETOR IN.DUCT
-
195433387 BOX, AIR INTAKE 4-STROKEBOX, AIR INTAKE 4-STROKE
-
205412191 LINE, BREATHER OIL TANKLINE, BREATHER OIL TANK
-
215811650 FOIL, AIRBOXFOIL, AIRBOX
-
225432377 PLUG, TRAPPLUG, TRAP
-
238450059-150 FUEL LINEFUEL LINE
-
247080650 CLAMP, HOSECLAMP, HOSE
-
255242044 CLIP, AIR BOXCLIP, AIR BOX
-
265432601 COLLAR, CARBURETOR INLETCOLLAR, CARBURETOR INLET
-
277080595 FILTER, AIR INTAKEFILTER, AIR INTAKE
-
285811633 FILTER, PRECLEANED SLEEVEFILTER, PRECLEANED SLEEVE
