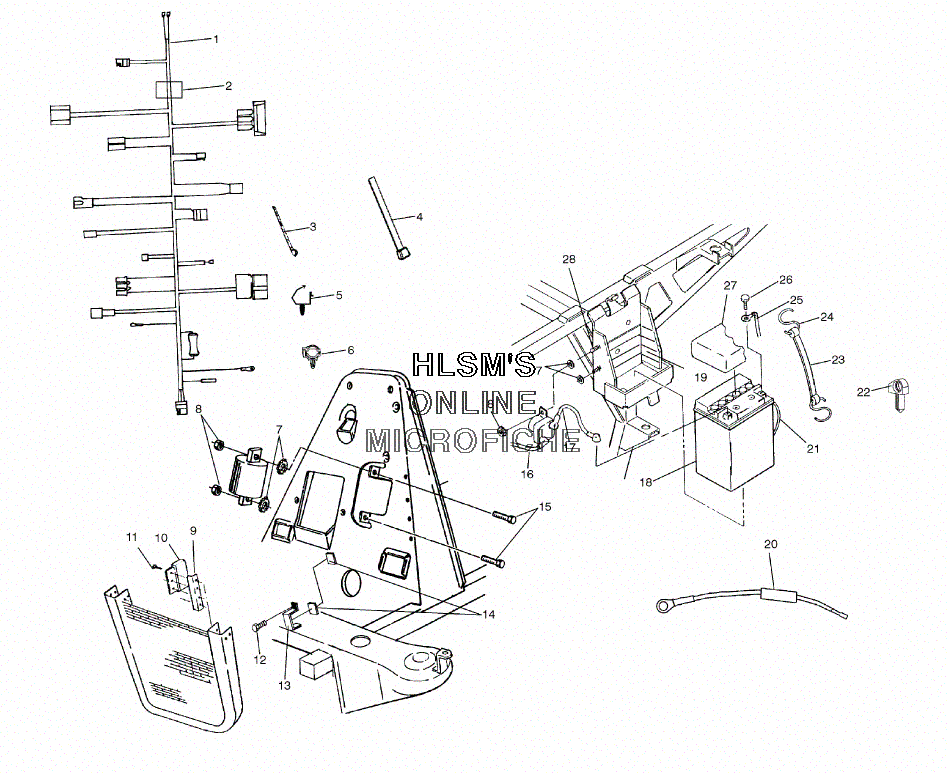

ELECTRICAL COMPONENTS для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска
‹-+›
-
№АртикулНазвание
-
12461041 HARNESS, MAINHARNESS, MAIN
-
22201795 CIRCUT BREAKER FAN KITCIRCUT BREAKER FAN KIT
-
37080138 CABLE, TIECABLE, TIE
-
47080492 STRAP, WEATHER RESIST. (BLACK)STRAP, WEATHER RESIST. (BLACK)
-
57670109 CLIP, ROUTINGCLIP, ROUTING
-
64020139 CLIP, PLASTICCLIP, PLASTIC
-
77571602 WASHERWASHER
-
87541925 NUT, NYLOKNUT, NYLOK
-
95131036 HEATSINK RECT.HEATSINK RECT.
-
104010670 RECTIFIER, REGULATORRECTIFIER, REGULATOR
-
117512018 SCREWSCREW
-
127512024 SCREWSCREW
-
135246378 BRACKET, CDI DIGITALBRACKET, CDI DIGITAL
-
145810455 PAD, RACK MOUNTPAD, RACK MOUNT
-
157512007 BOLTBOLT
-
164010093 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
174010094 CABLE, BATTERY/SOLENOID (RED)CABLE, BATTERY/SOLENOID (RED)
-
184140006 BATTERYBATTERY
-
195810290 PAD, BATTERYPAD, BATTERY
-
202202147 FUSIBLE LINK KITFUSIBLE LINK KIT
-
215432077 TUBE, BATTERY VENTTUBE, BATTERY VENT
-
227670102 CLIPCLIP
-
235410424 STRAP, BATTERY HOLDDOWNSTRAP, BATTERY HOLDDOWN
-
247010032 HOOK, BATTERYHOOK, BATTERY
-
254010095 CABLE, BATTERY/ENGINE (BLACK)CABLE, BATTERY/ENGINE (BLACK)
-
262200361 BATTERY BOLT KIT (SHORT)BATTERY BOLT KIT (SHORT)
-
275431769 COVER, BATTERYCOVER, BATTERY
-
287512027 SCREWSCREW
