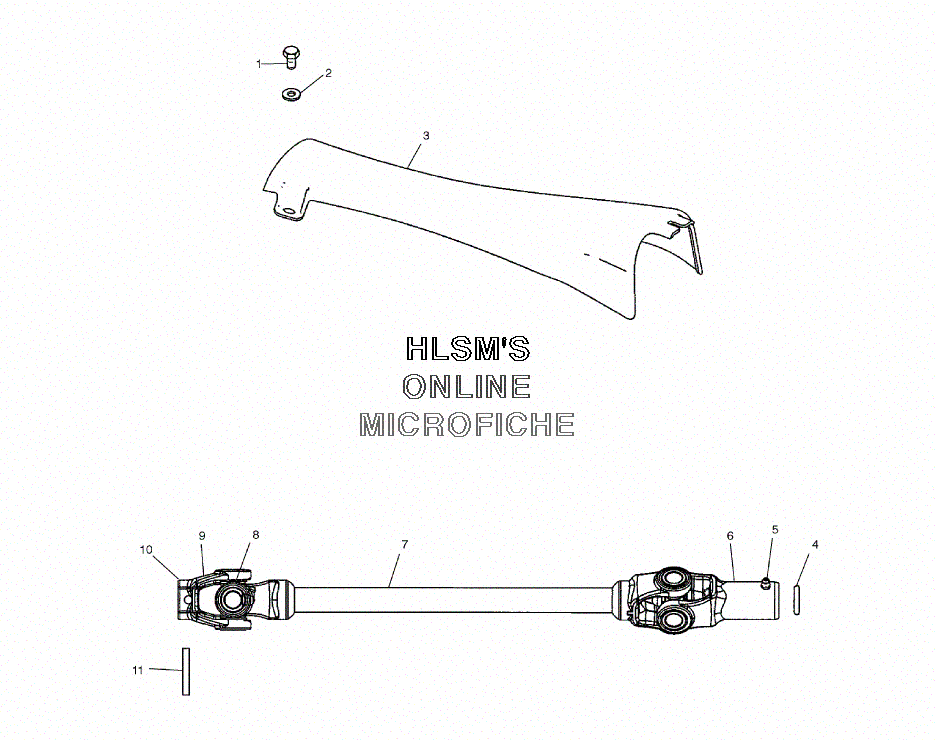

DRIVESHAFT - INTERMEDIATE для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска
-
№АртикулНазвание
-
17512232 BOLTBOLT
-
27558301 WASHER, FLATWASHER, FLAT
-
35433154 GUARD, PROP SHAFT (FRONT)GUARD, PROP SHAFT (FRONT)
-
45411092 O-RINGO-RING
-
57080424 FITTING, LUBEFITTING, LUBE
-
63260131 YOKEYOKE
-
71350072 SHAFT, PROPSHAFT, PROP
-
83260104 CROSS AND BEARING KITCROSS AND BEARING KIT
-
93260133 YOKEYOKE
-
101380169 SHAFT, PROP ASSY. (INCL. 6, 9) (IF BUILT BEFORE 10/12/02)SHAFT, PROP ASSY. (INCL. 6, 9) (IF BUILT BEFORE 10/12/02)
-
101380217 PROPSHAFT, NONSERV ASSY. (FRONT) (INCL. 6, 9) (IF BUILT AFTER 10/12/02)PROPSHAFT, NONSERV ASSY. (FRONT) (INCL. 6, 9) (IF BUILT AFTER 10/12/02)
-
117661913 PIN, SPRINGPIN, SPRING
