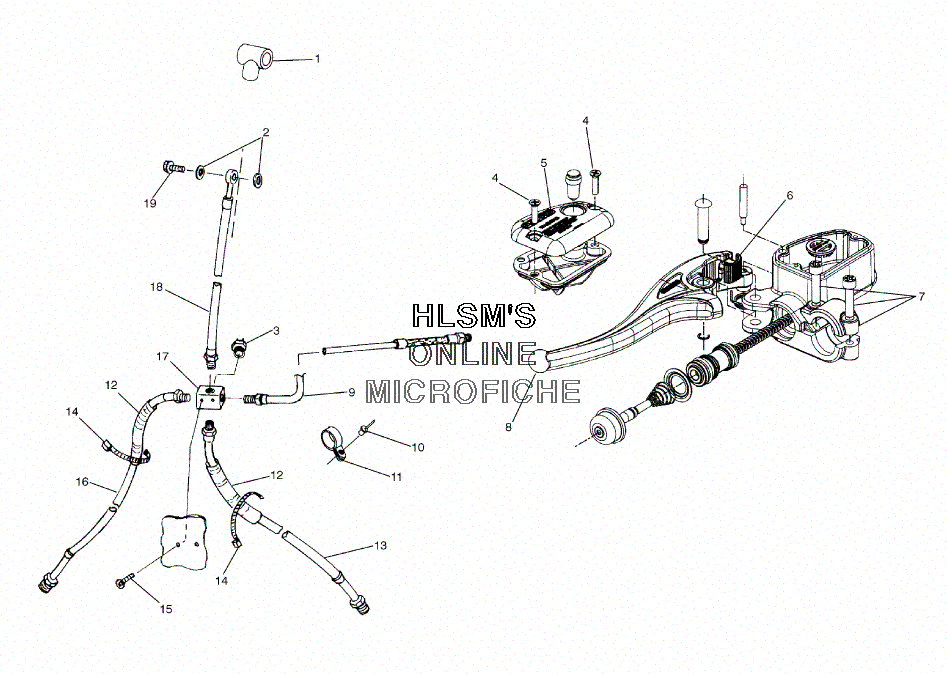

BRAKE - MASTER CYLINDER W/ BRAKE LINE (LEFT) для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска
-
№АртикулНазвание
-
1A2010196 MASTER CYLINDER 3/4'' ASSY. (LEFT)MASTER CYLINDER 3/4'' ASSY. (LEFT)
-
15411297 BOOT, BRAKE LINE RUBBERBOOT, BRAKE LINE RUBBER
-
25410988 SEALSEAL
-
34110164 SWITCH, STOPLIGHTSWITCH, STOPLIGHT
-
47517899 SCREW, TORX F (LEFT)SCREW, TORX F (LEFT)
-
52201834 CAP, MASTER CYLINDER KIT (INCL. CAP, SCREWS, SIGHT, GASKET)CAP, MASTER CYLINDER KIT (INCL. CAP, SCREWS, SIGHT, GASKET)
-
62201836 BRAKE LEVER, PARK M/C KIT (INCL. LEVER, SPRING)BRAKE LEVER, PARK M/C KIT (INCL. LEVER, SPRING)
-
72201833 CLAMP, MASTER CYLINDER KIT (INCL. CLAMP, SCREWS)CLAMP, MASTER CYLINDER KIT (INCL. CLAMP, SCREWS)
-
82201835 LEVER, MASTER CYLINDER KIT (INCL. PIN, LEVER, CLIP)LEVER, MASTER CYLINDER KIT (INCL. PIN, LEVER, CLIP)
-
91910480 LINE, BRAKE JB TO RRLINE, BRAKE JB TO RR
-
107621462 RIVETRIVET
-
117080539 CLAMP, NYLON CABLECLAMP, NYLON CABLE
-
128360031-34 CONDUITCONDUIT
-
131910474 LINE, BRAKE (FRONT/LEFT)LINE, BRAKE (FRONT/LEFT)
-
147080138 CABLE TIECABLE TIE
-
157512024 SCREWSCREW
-
161910475 LINE, BRAKE (FRONT/RIGHT)LINE, BRAKE (FRONT/RIGHT)
-
177052292 FITTING, CROSS BRAKEFITTING, CROSS BRAKE
-
181910470 LINE, BRAKE, PODLINE, BRAKE, POD
-
191910499 BOLT, BANJOBOLT, BANJO
