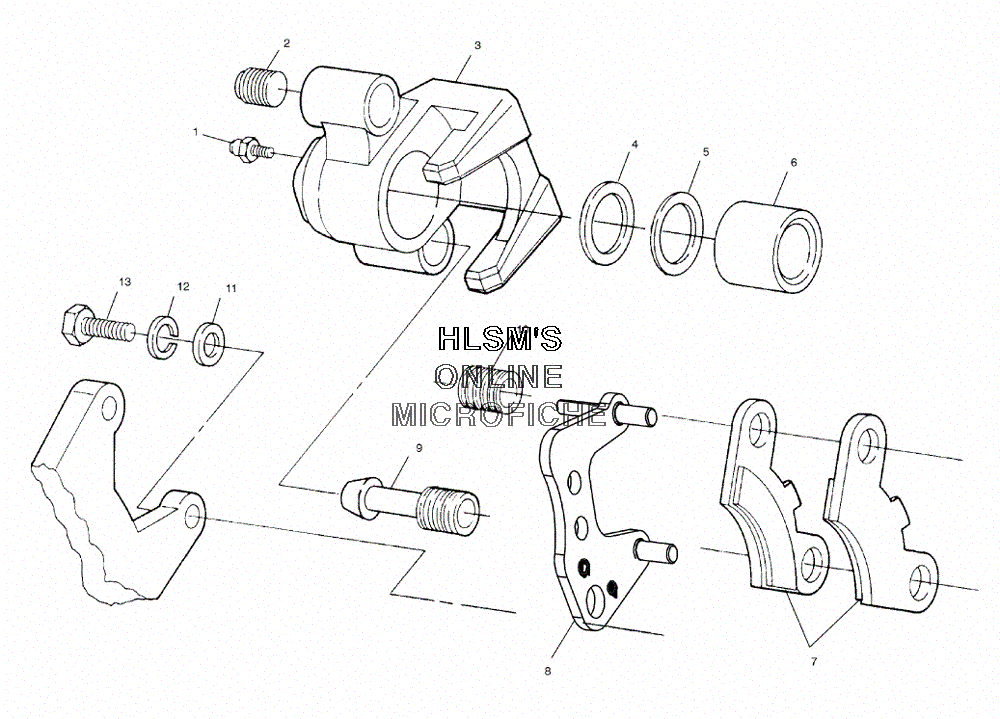

BRAKE - FRONT для Polaris SPORTSMAN 6X6 (A03CL50AA) - 2003 года выпуска
-
№АртикулНазвание
-
17080352 SCREW, BLEEDERSCREW, BLEEDER
-
27515489 SCREW SET, SOCKET HEADSCREW SET, SOCKET HEAD
-
35132963 CALIPER, BRAKE (LEFT) (IF BUILT BEFORE 7/01/02)CALIPER, BRAKE (LEFT) (IF BUILT BEFORE 7/01/02)
-
35133412 CALIPER (1.25) (LEFT) (IF BUILT AFTER 7/01/02)CALIPER (1.25) (LEFT) (IF BUILT AFTER 7/01/02)
-
35132964 CALIPER, BRAKE (RIGHT) (IF BUILT BEFORE 7/01/02)CALIPER, BRAKE (RIGHT) (IF BUILT BEFORE 7/01/02)
-
35133413 CALIPER (1.25) (RIGHT) (IF BUILT AFTER 7/01/02)CALIPER (1.25) (RIGHT) (IF BUILT AFTER 7/01/02)
-
31930642 BOOT, BRAKE KIT (FRONT)BOOT, BRAKE KIT (FRONT)
-
45411596 SEAL, CALIPER (INNER/1.25'')SEAL, CALIPER (INNER/1.25'')
-
55411597 SEAL, CALIPER (OUTER/1.25'')SEAL, CALIPER (OUTER/1.25'')
-
65132405 PISTON, CALIPERPISTON, CALIPER
-
72201398 BRAKE PADS (FRONT) (IF BUILT BEFORE 7/01/02)BRAKE PADS (FRONT) (IF BUILT BEFORE 7/01/02)
-
72202412 BRAKE PAD ASSY. (IF BUILT AFTER 7/01/02)BRAKE PAD ASSY. (IF BUILT AFTER 7/01/02)
-
81910411 MOUNT ASSY., CALIPERMOUNT ASSY., CALIPER
-
95410495 BOOT, BUSHINGBOOT, BUSHING
-
105410494 BOOT, PIN SEALBOOT, PIN SEAL
-
117558402 WASHERWASHER
-
127552901 WASHERWASHER
-
137512365 SCREWSCREW
-
131910551 CALIPER BRAKE ASSY. (FRONT/LEFT) (INCL. 1, 6, 8, 9) (IF BUILT BEFORE 7/01/02)CALIPER BRAKE ASSY. (FRONT/LEFT) (INCL. 1, 6, 8, 9) (IF BUILT BEFORE 7/01/02)
-
131910692 CALIPER BRAKE ASSY. (LEFT) (INCL. 1, 6, 8, 9) (IF BUILT AFTER 7/01/02)CALIPER BRAKE ASSY. (LEFT) (INCL. 1, 6, 8, 9) (IF BUILT AFTER 7/01/02)
-
131910552 CALIPER BRAKE ASSY. (FRONT/RIGHT) (INCL. 1, 6, 8, 9) (IF BUILT BEFORE 7/01/02)CALIPER BRAKE ASSY. (FRONT/RIGHT) (INCL. 1, 6, 8, 9) (IF BUILT BEFORE 7/01/02)
-
131910693 CALIPER BRAKE ASSY. (RIGHT) (INCL. 1, 6, 8, 9) (IF BUILT AFTER 7/01/02)CALIPER BRAKE ASSY. (RIGHT) (INCL. 1, 6, 8, 9) (IF BUILT AFTER 7/01/02)
