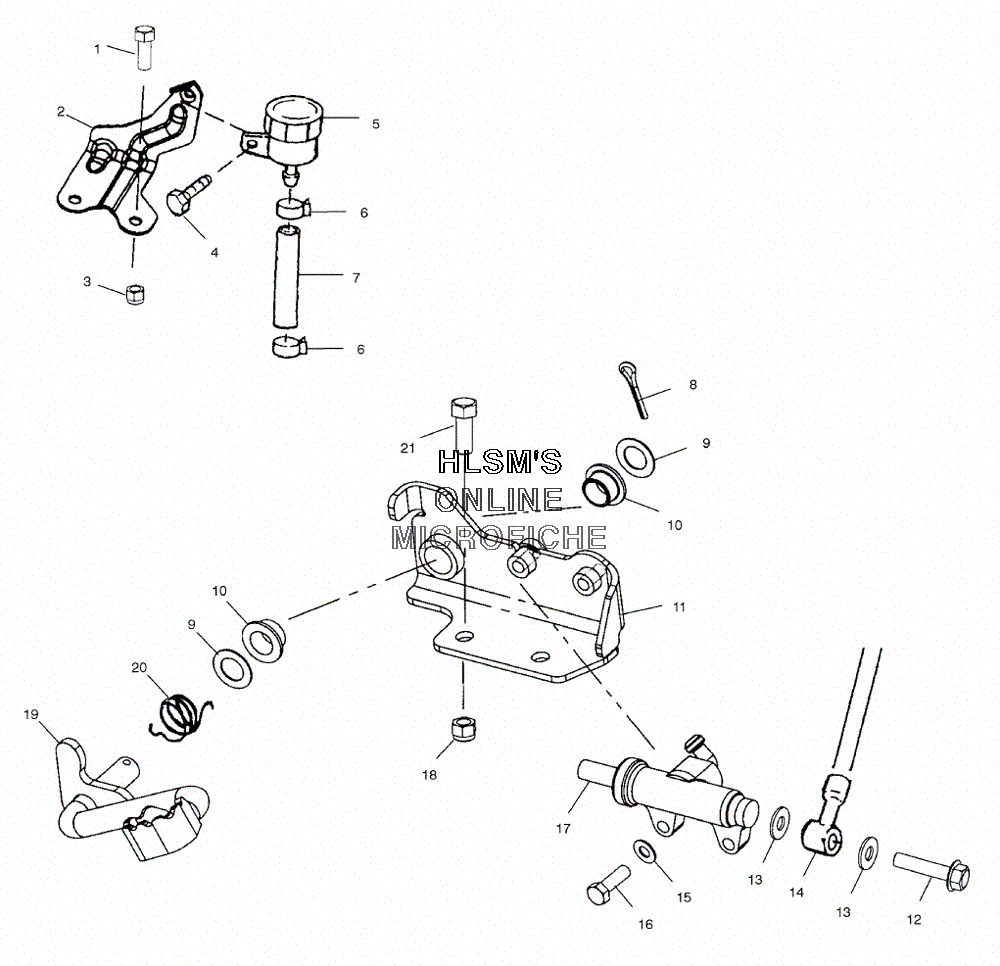

BRAKE - REAR MASTER CYLINDER для Polaris TRAIL BOSS 330 (A03CA32AA) - 2003 года выпуска
-
№АртикулНазвание
-
17512113 BOLTBOLT
-
25246010-067 BRACKET, RESERVIOR MOUNTBRACKET, RESERVIOR MOUNT
-
37542122 NUT, NYLOKNUT, NYLOK
-
47517386 SCREWSCREW
-
51930854 RESERVOIR ASSY., BRAKE (REAR)RESERVOIR ASSY., BRAKE (REAR)
-
67080003 CLAMP, HOSECLAMP, HOSE
-
71910438 HOSE, RESERVE (1/4 ID, 5.78 LG)HOSE, RESERVE (1/4 ID, 5.78 LG)
-
87661401 COTTER PINCOTTER PIN
-
97555919 WASHERWASHER
-
105431107 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
111910375-067 MOUNT, BRAKE, CDS (BLACK) (IF BUILT BEFORE 12/01/02)MOUNT, BRAKE, CDS (BLACK) (IF BUILT BEFORE 12/01/02)
-
121910499 BOLT, BANJO (10MM X 1.00)BOLT, BANJO (10MM X 1.00)
-
135410988 SEALSEAL
-
157552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
167515179 SCREWSCREW
-
171910311 BRAKE MASTER CYLINDER FOOT, BANJOBRAKE MASTER CYLINDER FOOT, BANJO
-
187542324 NUT, NYLOK (IF BUILT BEFORE 12/01/02)NUT, NYLOK (IF BUILT BEFORE 12/01/02)
-
191910376-067 BRAKE ROD, CDS, GEN 4 (BLACK)BRAKE ROD, CDS, GEN 4 (BLACK)
-
207041750 SPRING, TORSION BRAKESPRING, TORSION BRAKE
-
217515321 BOLT (IF BUILT BEFORE 12/01/02)BOLT (IF BUILT BEFORE 12/01/02)
