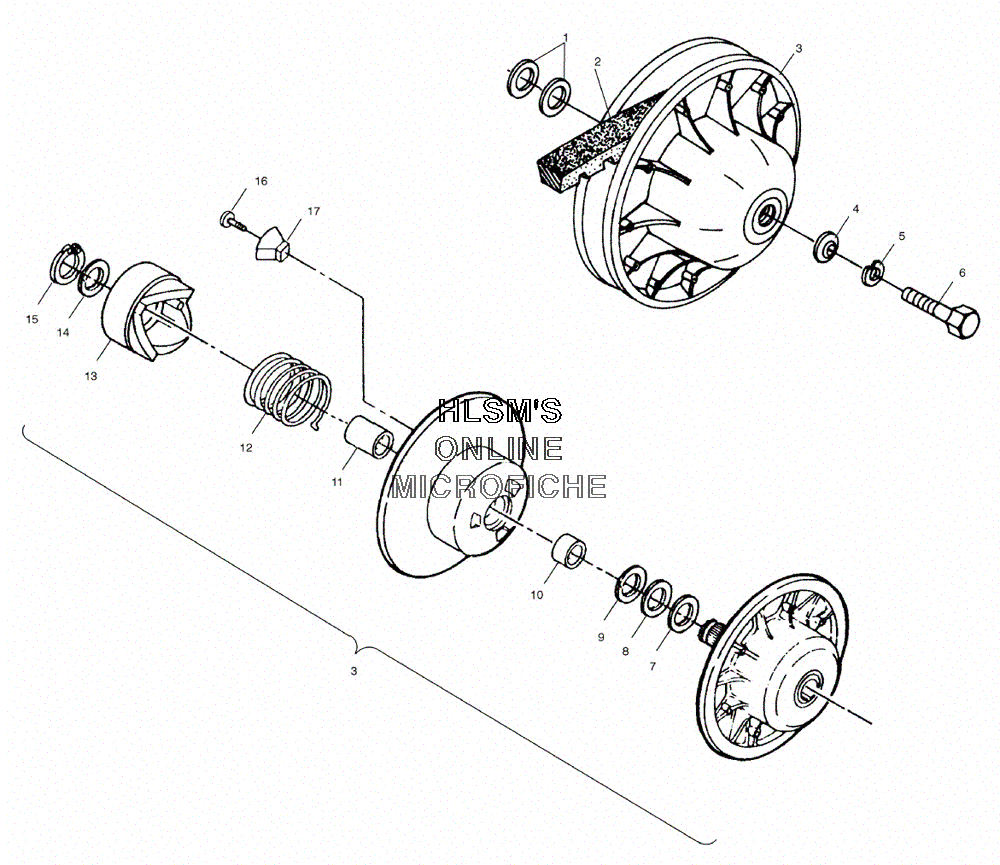

CLUTCH - DRIVEN для Polaris TRAIL BOSS 330 (A03CA32AA) - 2003 года выпуска
-
№АртикулНазвание
-
17556120 BUSHING (7/8 X 3/8 X 16)BUSHING (7/8 X 3/8 X 16)
-
23211077 BELT, DRIVEBELT, DRIVE
-
31321848 CLUTCH, DRIVEN ASSY., 40 DEG (BLACK) (INCL. 7-17]CLUTCH, DRIVEN ASSY., 40 DEG (BLACK) (INCL. 7-17]
-
45220646 WASHER, DOMEDWASHER, DOMED
-
57552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
67515384 BOLTBOLT
-
77555898 WASHERWASHER
-
87556076 WASHERWASHER
-
97556804 WASHERWASHER
-
103576504 BUSHING, DRIVENBUSHING, DRIVEN
-
113576511 BUSHINGBUSHING
-
127041782 SPRING, CLTCH, CHRM, SLCN, DRI (BLACK)SPRING, CLTCH, CHRM, SLCN, DRI (BLACK)
-
135131446 RAMP, STA. MACH, HVY RETRAMP, STA. MACH, HVY RET
-
145210752 SPACER (.020)SPACER (.020)
-
157710448 RING, RETAININGRING, RETAINING
-
167511854 BOLTBOLT
-
175430766 BUTTON, RAMPBUTTON, RAMP
