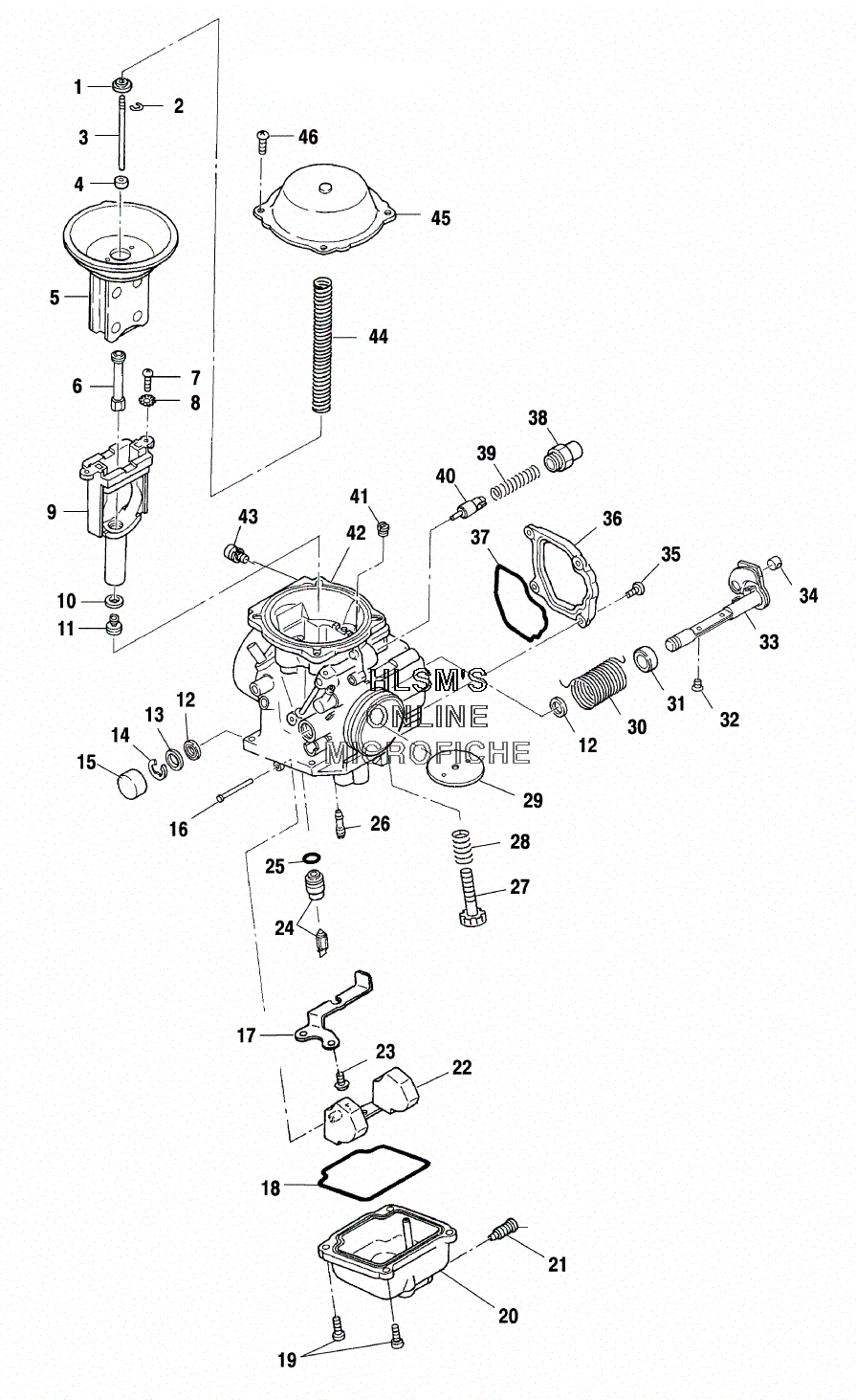

CARBURETOR для Polaris TRAIL BOSS 330 (A03CA32AA) - 2003 года выпуска
-
№АртикулНазвание
-
13130507 RINGRING
-
23130508 E-RINGE-RING
-
33130730 JET NEEDLE (J8-5F14)JET NEEDLE (J8-5F14)
-
43130752 RINGRING
-
53130732 DIAPHRAGM ASSY.DIAPHRAGM ASSY.
-
63131457 NEEDLE JETNEEDLE JET
-
73130541 SCREWSCREW
-
83130540 WASHER, SPRINGWASHER, SPRING
-
93131128 JET BLOCK, ASSY.JET BLOCK, ASSY.
-
103130014 WASHERWASHER
-
113131458 JET, MAIN (#122.5]JET, MAIN (#122.5]
-
123130515 SEALSEAL
-
133130517 WASHERWASHER
-
143130518 E-RINGE-RING
-
153130519 CAPCAP
-
163130361 PIN, FLOATPIN, FLOAT
-
173130594 PLATEPLATE
-
183130532 O-RINGO-RING
-
193130520 SCREWSCREW
-
203130590 FLOAT BODY ASSY.FLOAT BODY ASSY.
-
213130521 SCREWSCREW
-
223130529 FLOAT ASSY.FLOAT ASSY.
-
233130591 SCREWSCREW
-
243131360 VALVE-NEEDLE (PUSH IN) (1.5]VALVE-NEEDLE (PUSH IN) (1.5]
-
253130533 O-RINGO-RING
-
263131421 JET, PILOT (#42.5)JET, PILOT (#42.5)
-
273131423 SCREW, ADJUSTSCREW, ADJUST
-
283130836 SPRINGSPRING
-
293131460 VALVE, THROTTLE (100)VALVE, THROTTLE (100)
-
303130589 SPRINGSPRING
-
313130514 RINGRING
-
323130501 SCREWSCREW
-
333130513 SHAFT ASSY., THROTTLESHAFT ASSY., THROTTLE
-
343130543 GUIDE, CABLEGUIDE, CABLE
-
353130535 SCREWSCREW
-
363130511 COVERCOVER
-
373130512 O-RINGO-RING
-
383130199 CAP, PLUNGERCAP, PLUNGER
-
393130538 SPRINGSPRING
-
403130593 PLUNGER ASSY.PLUNGER ASSY.
-
413130625 JET, AIR (#160]JET, AIR (#160]
-
423131456 ASSY., CARBURETOR (INCL. 1-33,38-46]ASSY., CARBURETOR (INCL. 1-33,38-46]
-
433084205 SCREW AND WASHERSCREW AND WASHER
-
443131129 SPRINGSPRING
-
453131127 COVER, ASSY.COVER, ASSY.
-
463130592 SCREWSCREW
