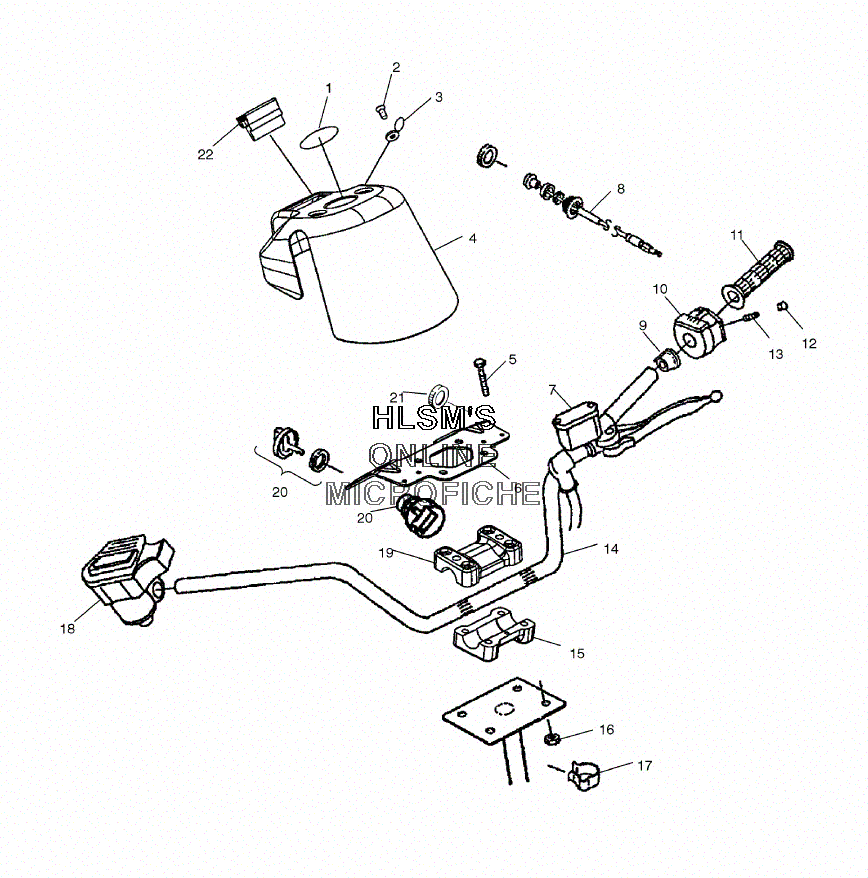

HANDLEBAR для Polaris TRAIL BOSS 330 (A03CA32AA) - 2003 года выпуска
-
№АртикулНазвание
-
17078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
27512024 SCREWSCREW
-
35432420 COVER, SCREW HINGED (BLACK)COVER, SCREW HINGED (BLACK)
-
45434643-070 PANEL, INSTRUMENT (BLACK)PANEL, INSTRUMENT (BLACK)
-
57515189 SCREWSCREW
-
65246406-067 BRACKET INSTRUMENT PANEL (BLACK)BRACKET INSTRUMENT PANEL (BLACK)
-
87081007 CABLE, CHOKE FRICTION (26'')CABLE, CHOKE FRICTION (26'')
-
95433903 SPACER, SWITCH LHSPACER, SWITCH LH
-
104010422 SWITCH, HANDLEBAR HI/ LO/ MODE (IF BUILT BEFORE 2/03/03)SWITCH, HANDLEBAR HI/ LO/ MODE (IF BUILT BEFORE 2/03/03)
-
104010592 SWITCH, HANDLEBAR HI/ LO/ OFF, 2P (IF BUILT AFTER 2/03/03)SWITCH, HANDLEBAR HI/ LO/ OFF, 2P (IF BUILT AFTER 2/03/03)
-
115433834-070 GRIP, HANDLEBAR (7/8 ID) (BLACK)GRIP, HANDLEBAR (7/8 ID) (BLACK)
-
125432952 PLUG, HOLEPLUG, HOLE
-
137517625 SCREW, SETSCREW, SET
-
145334127-067 TUBE, HANDLEBAR (BLACK)TUBE, HANDLEBAR (BLACK)
-
155631147 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
167542122 NUT, NYLOKNUT, NYLOK
-
177080631 CLIP, CABLE RETAINCLIP, CABLE RETAIN
-
195631146 BLOCK, HANDLEBAR PEGGEDBLOCK, HANDLEBAR PEGGED
-
204010390 SWITCH, IGNITION KEYSTARTSWITCH, IGNITION KEYSTART
-
204010278 KEY BLANK (20/ 21/ 67/ 68) SERIESKEY BLANK (20/ 21/ 67/ 68) SERIES
-
204010321 KEY BLANK (22/ 23/ 27/ 28) SERIES NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.KEY BLANK (22/ 23/ 27/ 28) SERIES NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.
-
205433733 NUT, IGN SWITCHNUT, IGN SWITCH
-
205433534 KEY COVER, KEYSWITCHKEY COVER, KEYSWITCH
-
217080922 NUT, CHOKE (M24 X 1.5 THD)NUT, CHOKE (M24 X 1.5 THD)
-
224010459 PANEL, INDICATOR, SVC, STD PVTPANEL, INDICATOR, SVC, STD PVT
