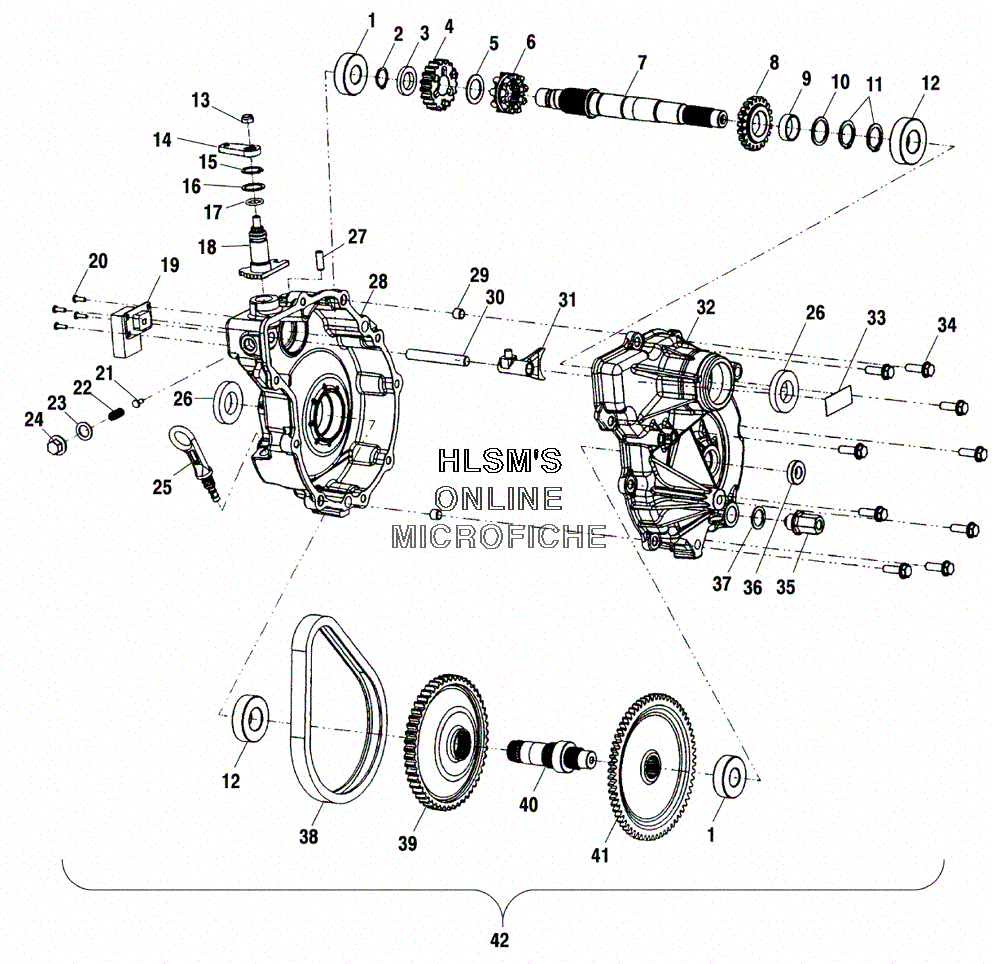

GEARCASE для Polaris TRAIL BOSS 330 (A03CA32AA) - 2003 года выпуска
-
№АртикулНазвание
-
1A1341306 GEARCASE,HR,2 X 4,TRAIL BOSS (INCL. 1-41]GEARCASE,HR,2 X 4,TRAIL BOSS (INCL. 1-41]
-
13233018 BEARINGBEARING
-
23233177 RING, RETAININGRING, RETAINING
-
33233673 WASHER, THRUSTWASHER, THRUST
-
43233674 SPROCKET (19 TEETH)SPROCKET (19 TEETH)
-
53233010 WASHERWASHER
-
63233675 ENGAGEMENT DOG, HIGH/ REVENGAGEMENT DOG, HIGH/ REV
-
73233676 SHAFT INPUT, HYBRIDSHAFT INPUT, HYBRID
-
83233677 GEAR (21 TEETH)GEAR (21 TEETH)
-
93233678 BUSHINGBUSHING
-
103233105 WASHERWASHER
-
113233106 RING, SNAPRING, SNAP
-
123233019 BEARINGBEARING
-
133233961 NUT, LOCK HEX FLANGE NYLON (5/16)NUT, LOCK HEX FLANGE NYLON (5/16)
-
143233547 BELL CRANKBELL CRANK
-
153233045 RING, RETAININGRING, RETAINING
-
163233040 WASHERWASHER
-
173233548 O-RINGO-RING
-
183233679 SHIFT-SHAFTSHIFT-SHAFT
-
193234002 SWITCH, GEAR INDICATION, 3 PSTNSWITCH, GEAR INDICATION, 3 PSTN
-
203233749 SCREWSCREW
-
213233680 BULLET, SHIFTINGBULLET, SHIFTING
-
223233681 SPRING, COMPRESSIONSPRING, COMPRESSION
-
233233872 WASHERWASHER
-
243233682 PLUG, DETENTPLUG, DETENT
-
253233478 DIPSTICKDIPSTICK
-
263233788 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
273233524 TUBE, VENTTUBE, VENT
-
283234049 GEARCASE, MACH (RIGHT)GEARCASE, MACH (RIGHT)
-
293233529 PIPE, KNOCKPIPE, KNOCK
-
303233684 SHAFT, SHIFTSHAFT, SHIFT
-
313233685 SHIFT, FORKSHIFT, FORK
-
323234048 COVERCOVER
-
333233636 DECAL, SWITCHDECAL, SWITCH
-
343233252 SCREWSCREW
-
353233687 PLUG, TORQUE STOPPLUG, TORQUE STOP
-
363233527 BUSHING, PIVOTBUSHING, PIVOT
-
373233035 WASHERWASHER
-
383233111 CHAIN, SILENT, 60PCHAIN, SILENT, 60P
-
393233688 SPROCKET (51 TEETH)SPROCKET (51 TEETH)
-
403233689 OUTPUT, SHAFTOUTPUT, SHAFT
-
413233690 GEAR (64 TEETH)GEAR (64 TEETH)
