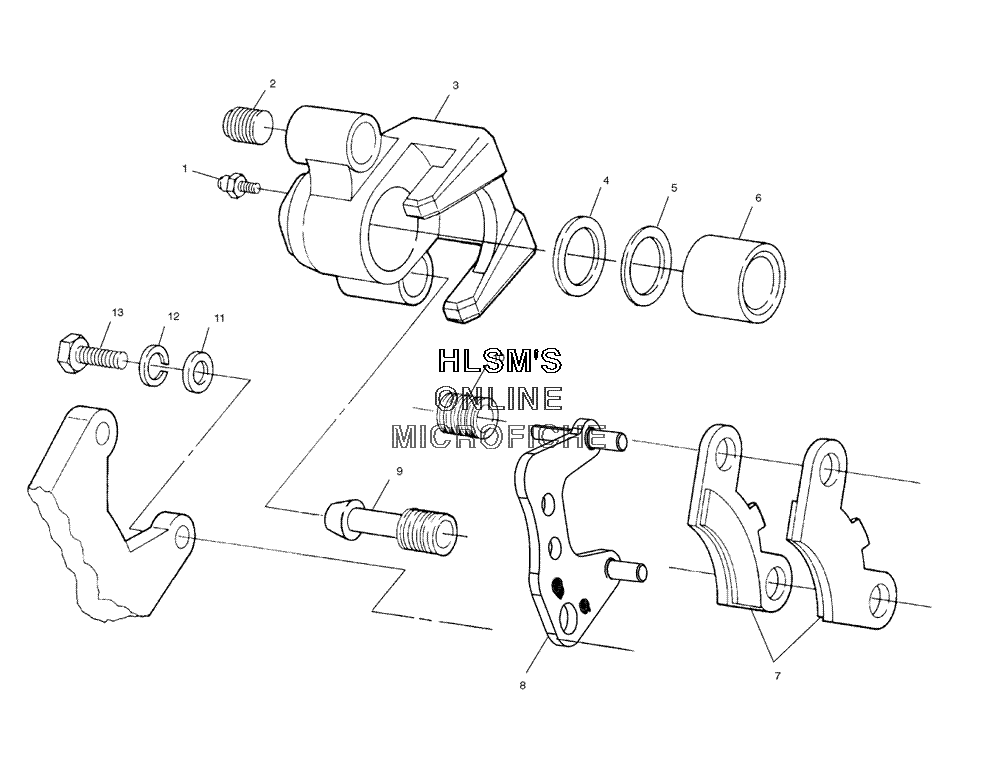

BRAKE - FRONT для Polaris SPORTSMAN 6X6 (A04CL50AA) - 2004 года выпуска
-
№АртикулНазвание
-
17080352 SCREW BLEEDERSCREW BLEEDER
-
27515489 SCREWSCREW
-
35133412 CALIPER (LEFT) (MACH)CALIPER (LEFT) (MACH)
-
35133413 CALIPER (RIGHT) (MACH)CALIPER (RIGHT) (MACH)
-
31930642 BOOT BRAKE KIT (FRONT)BOOT BRAKE KIT (FRONT)
-
45411596 SEAL CALIPER (INNER)SEAL CALIPER (INNER)
-
55411597 SEAL CALIPER (OUTER)SEAL CALIPER (OUTER)
-
65132405 PISTON CALIPERPISTON CALIPER
-
72202412 BRAKE PAD ASSY KIT (FRONT)BRAKE PAD ASSY KIT (FRONT)
-
81910411 MOUNT CALIPER ASSYMOUNT CALIPER ASSY
-
95410495 BOOT BUSHINGBOOT BUSHING
-
105410494 BOOT PIN SEALBOOT PIN SEAL
-
131910692 CALIPER BRAKE ASSY (LEFT) (INCL. 1-6, 8, 9CALIPER BRAKE ASSY (LEFT) (INCL. 1-6, 8, 9
-
131910693 CALIPER BRAKE ASSY (RIGHT) (INCL. 1-6, 8, 9)CALIPER BRAKE ASSY (RIGHT) (INCL. 1-6, 8, 9)
