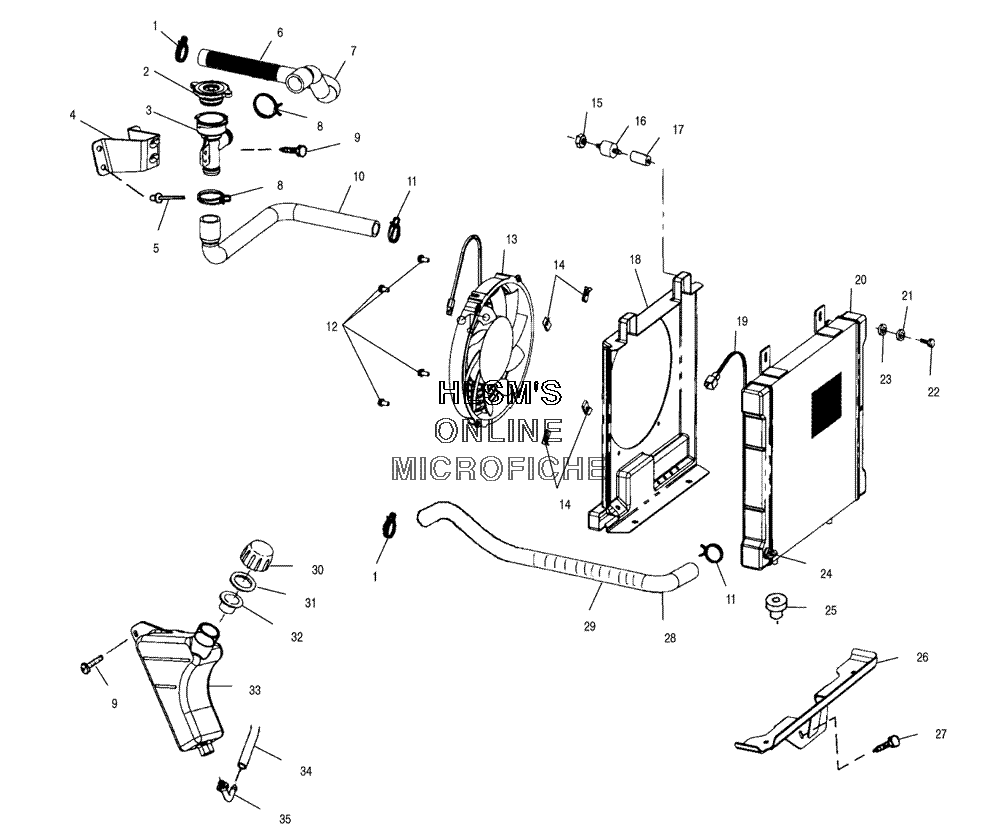

COOLING SYSTEM для Polaris SPORTSMAN 6X6 (A04CL50AA) - 2004 года выпуска
-
№АртикулНазвание
-
17080614 CLAMP HOSECLAMP HOSE
-
21240044 CAP PRESSURECAP PRESSURE
-
35433364 FILLER REMOTE COOLANTFILLER REMOTE COOLANT
-
45243505 BRAKET REMOTE COOLANT FILL PLATEDBRAKET REMOTE COOLANT FILL PLATED
-
57661637 RIVET INTERLOCK ZRIVET INTERLOCK Z
-
65433948 FLEXGUARD PLASTIC GUARDFLEXGUARD PLASTIC GUARD
-
75411811 HOSE ENGINE (UPPER)HOSE ENGINE (UPPER)
-
87080827 CLAMP ROTO SPRINGCLAMP ROTO SPRING
-
97512084 SCREWSCREW
-
105411632 HOSE FILLER NECKHOSE FILLER NECK
-
117080826 CLAMP ROTO CLIPCLAMP ROTO CLIP
-
127517659 SCREWSCREW
-
132410430 FAN AND MOTOR SPAL ASSYFAN AND MOTOR SPAL ASSY
-
147670111 CLIP UCLIP U
-
157547069 NUTSERT HEXAGONNUTSERT HEXAGON
-
163110032 MOUNT RUBBERMOUNT RUBBER
-
175020572 SPACER MOUNTSPACER MOUNT
-
185433059 SHROUD FANSHROUD FAN
-
194010161 SENSOR THERMAL HARNESSSENSOR THERMAL HARNESS
-
201240178 RADIATORRADIATOR
-
217552801 WASHER SPRING LOCKWASHER SPRING LOCK
-
227512240 BOLTBOLT
-
237558301 WASHER FLATWASHER FLAT
-
247052296 VALVE PLASTIC DRAINVALVE PLASTIC DRAIN
-
245411633 VALVE PLASTIC DRAINVALVE PLASTIC DRAIN
-
255410584 BUSHING MOUNT RADIATOR (LOWER)BUSHING MOUNT RADIATOR (LOWER)
-
265243503-067 BRAKET RADIATOR (LOWER/BLACK)BRAKET RADIATOR (LOWER/BLACK)
-
277512232 BOLTBOLT
-
285411694 HOSE ENGINE (LOWER)HOSE ENGINE (LOWER)
-
295521511 GUARD HOSEGUARD HOSE
-
305430743 CAP OVERFLOWCAP OVERFLOW
-
315810279 GASKETGASKET
-
325433774 CAP PLUG9X FLEX TEMP (GREEN)CAP PLUG9X FLEX TEMP (GREEN)
-
335433410 TANK SURGETANK SURGE
-
348450003-1525 LINE FUEL (1/4 ID/1525 CM)LINE FUEL (1/4 ID/1525 CM)
-
357052065 FITTING 90 DEGREEFITTING 90 DEGREE
