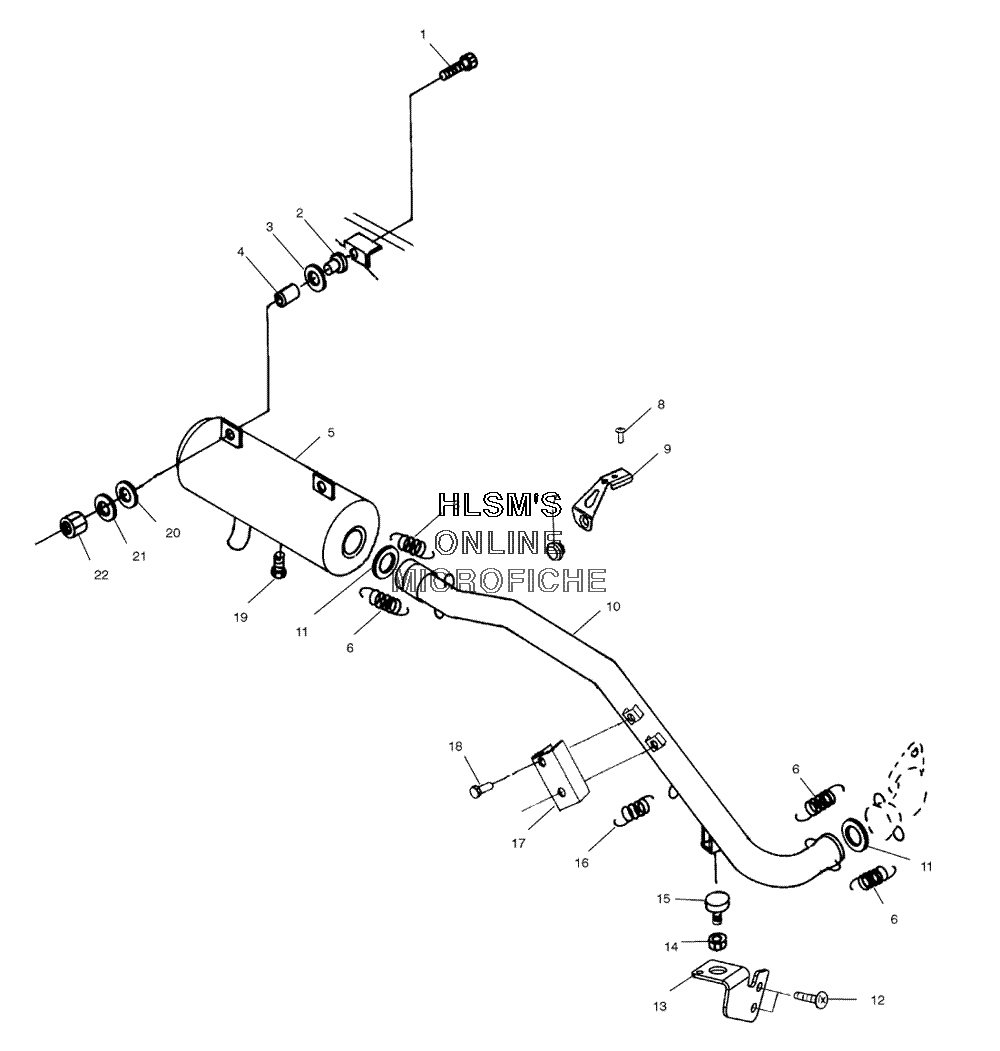

EXHAUST SYSTEM для Polaris SPORTSMAN 6X6 (A04CL50AA) - 2004 года выпуска
-
№АртикулНазвание
-
17515316 BOLTBOLT
-
25410241 DAMPENER (IF BUILT BEFORE 8/01/03)DAMPENER (IF BUILT BEFORE 8/01/03)
-
25412233 DAMPENER VIBRATION (IF BUILT AFTER 8/01/03)DAMPENER VIBRATION (IF BUILT AFTER 8/01/03)
-
37555863 BUSHING (IF BUILT BEFORE 8/01/03)BUSHING (IF BUILT BEFORE 8/01/03)
-
45010192 BUSHINGBUSHING
-
51260989-029 SILENCER (BLACK)SILENCER (BLACK)
-
67041804 SPRINGSPRING
-
75412067 BUMPER RUBBERBUMPER RUBBER
-
87517386 SCREWSCREW
-
95246408 BRAKET SUPPORT SIDE PANEL (RIGHT)BRAKET SUPPORT SIDE PANEL (RIGHT)
-
101261245-029 PIPE EXHAUST (BLACK)PIPE EXHAUST (BLACK)
-
115243518 SEAL EXHAUSTSEAL EXHAUST
-
127512232 BOLTBOLT
-
135242344 BRAKET EXHAUST SUPPORT PLATEDBRAKET EXHAUST SUPPORT PLATED
-
147542301 NUT HEXAGONNUT HEXAGON
-
153110064 MOUNT TORQUE STOPMOUNT TORQUE STOP
-
167042029 SPRINGSPRING
-
175244014 SHIELD HEAT EXHAUSTSHIELD HEAT EXHAUST
-
187517615 SCREWSCREW
-
197512666 BOLTBOLT
-
205410436 WASHER RUBBERWASHER RUBBER
-
217555716 WASHERWASHER
-
227542324 NUT NYLOKNUT NYLOK
