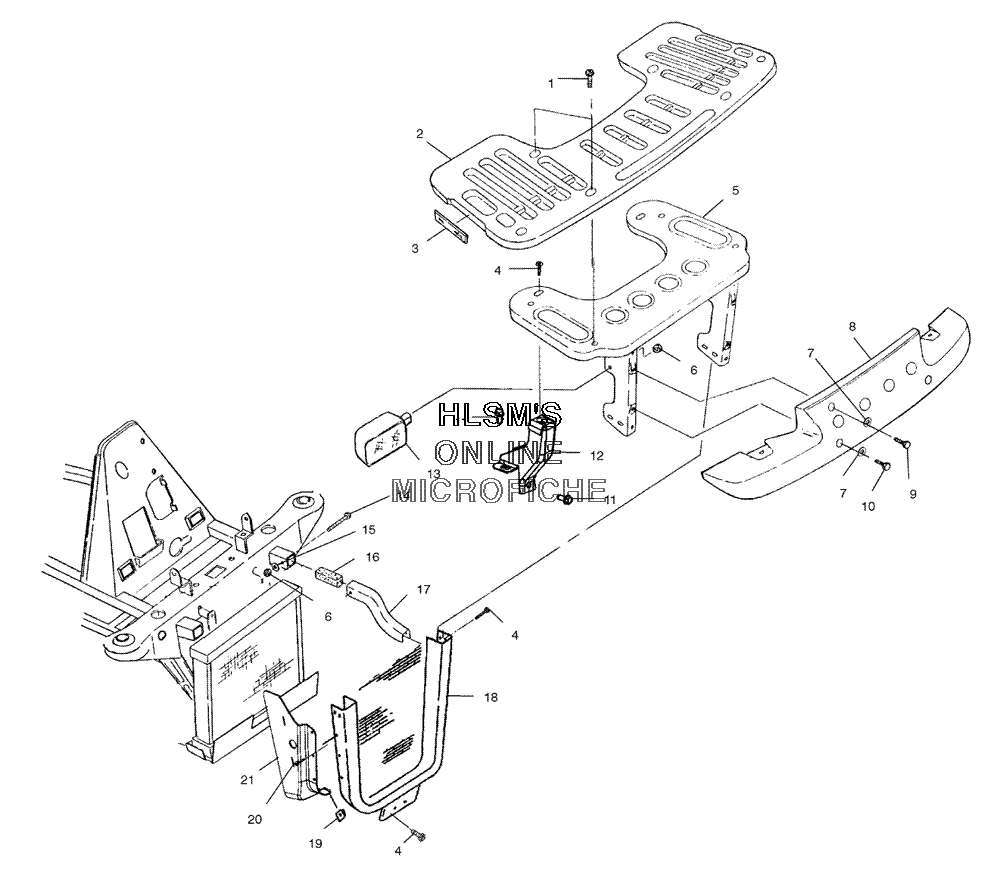

RACK AND BUMPER MOUNTING - FRONT для Polaris SPORTSMAN 6X6 (A04CL50AA) - 2004 года выпуска
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
22632340-070 RACK 6X6 ASSY (FRONT/BLACK) (INCL. REF. 3 AND WARNING DECAL)RACK 6X6 ASSY (FRONT/BLACK) (INCL. REF. 3 AND WARNING DECAL)
-
37079926 DECAL REFLECT (AMBER)DECAL REFLECT (AMBER)
-
47515399 SCREWSCREW
-
51014023-067 SUPPORT RACK (FRONT/BLACK)SUPPORT RACK (FRONT/BLACK)
-
67542324 NUT NYLOKNUT NYLOK
-
77555954 WASHER (IF BUILT BEFORE 10/01/03)WASHER (IF BUILT BEFORE 10/01/03)
-
85432155-070 BUMPER (BLACK)BUMPER (BLACK)
-
97515391 BOLT (IF BUILT BEFORE 10/01/03)BOLT (IF BUILT BEFORE 10/01/03)
-
97517977 BOLT (IF BUILT AFTER 10/01/03)BOLT (IF BUILT AFTER 10/01/03)
-
107515390 BOLT (IF BUILT BEFORE 10/01/03)BOLT (IF BUILT BEFORE 10/01/03)
-
117512232 BOLTBOLT
-
121013744-067 WELD SUPPORT RACK (FRONT/LEFT/BLACK)WELD SUPPORT RACK (FRONT/LEFT/BLACK)
-
121013746-067 WELD SUPPORT RACK (FRONT/RIGHT/BLACK)WELD SUPPORT RACK (FRONT/RIGHT/BLACK)
-
132431014 HEADLIGHT SIDE MOUNT ASSY (LEFT)HEADLIGHT SIDE MOUNT ASSY (LEFT)
-
132431015 HEADLIGHT SIDE MOUNT ASSY (RIGHT)HEADLIGHT SIDE MOUNT ASSY (RIGHT)
-
134030059 BULBBULB
-
147512329 BOLTBOLT
-
157558402 WASHER FLATWASHER FLAT
-
165810467 PLUG FRAMEPLUG FRAME
-
175244729-067 EXTENSION FRAME (LEFT/BLACK)EXTENSION FRAME (LEFT/BLACK)
-
175244730-067 EXTENSION FRAME (RIGHT/BLACK)EXTENSION FRAME (RIGHT/BLACK)
-
181013772-067 WELD BRUSH GUARD (BLACK)WELD BRUSH GUARD (BLACK)
-
197670094 NUTNUT
-
207512097 SCREWSCREW
-
215433923 SHIELD RADIATOR SIDE (LEFT)SHIELD RADIATOR SIDE (LEFT)
-
215433924 SHIELD RADIATOR SIDE (RIGHT)SHIELD RADIATOR SIDE (RIGHT)
