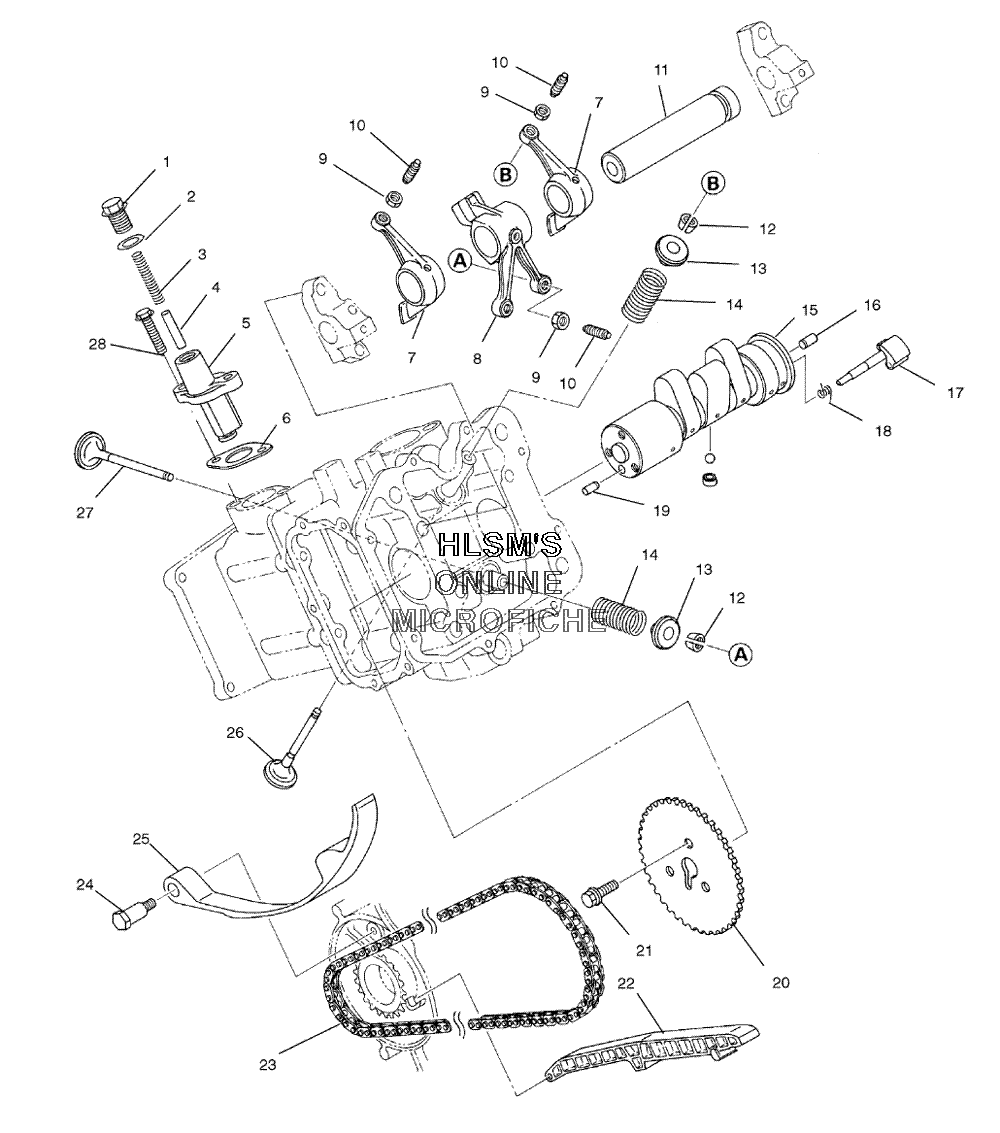

CAMSHAFT W/ VALVE ASSY. для Polaris SPORTSMAN 6X6 (A04CL50AA) - 2004 года выпуска
-
№АртикулНазвание
-
13087129 PLUGPLUG
-
23087130 GASKET PLUGGASKET PLUG
-
33087131 SPRING TENSIONERSPRING TENSIONER
-
43087132 PINPIN
-
53086493 TENSIONER ASSY (INCL. 1-4)TENSIONER ASSY (INCL. 1-4)
-
63086448 GASKET TENSIONERGASKET TENSIONER
-
73084910 ROCKER ARM INTAKE ASSY (INCL. 9, 10)ROCKER ARM INTAKE ASSY (INCL. 9, 10)
-
83084913 ROCKERARM EXHAUST ASSY (INCL. 9, 10)ROCKERARM EXHAUST ASSY (INCL. 9, 10)
-
93084912 NUTNUT
-
103084911 SCREW ADJUSTERSCREW ADJUSTER
-
113084909 SHAFT ROCKERSHAFT ROCKER
-
123084908 COLLET VALVECOLLET VALVE
-
133087203 RETAINER VALVE SPRINGRETAINER VALVE SPRING
-
143084906 SPRING VALVESPRING VALVE
-
153086212 CAMSHAFT ASSY (INCL. 15-19)CAMSHAFT ASSY (INCL. 15-19)
-
163086838 PIN DOWELPIN DOWEL
-
173085348 LEVER RELEASELEVER RELEASE
-
183085076 SPRING RETURNSPRING RETURN
-
193084899 PIN DOWELPIN DOWEL
-
203084914 SPROCKETSPROCKET
-
213081657 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
223084916 GUIDE CHAINGUIDE CHAIN
-
233084915 CHAIN TIMINGCHAIN TIMING
-
243084924 BOLT PIVOT LEVER ASSYBOLT PIVOT LEVER ASSY
-
253084917 LEVERLEVER
-
263085349 VALVE INTAKEVALVE INTAKE
-
273085412 VALVE EXHAUSTVALVE EXHAUST
-
283083361 BOLT FLANGEBOLT FLANGE
