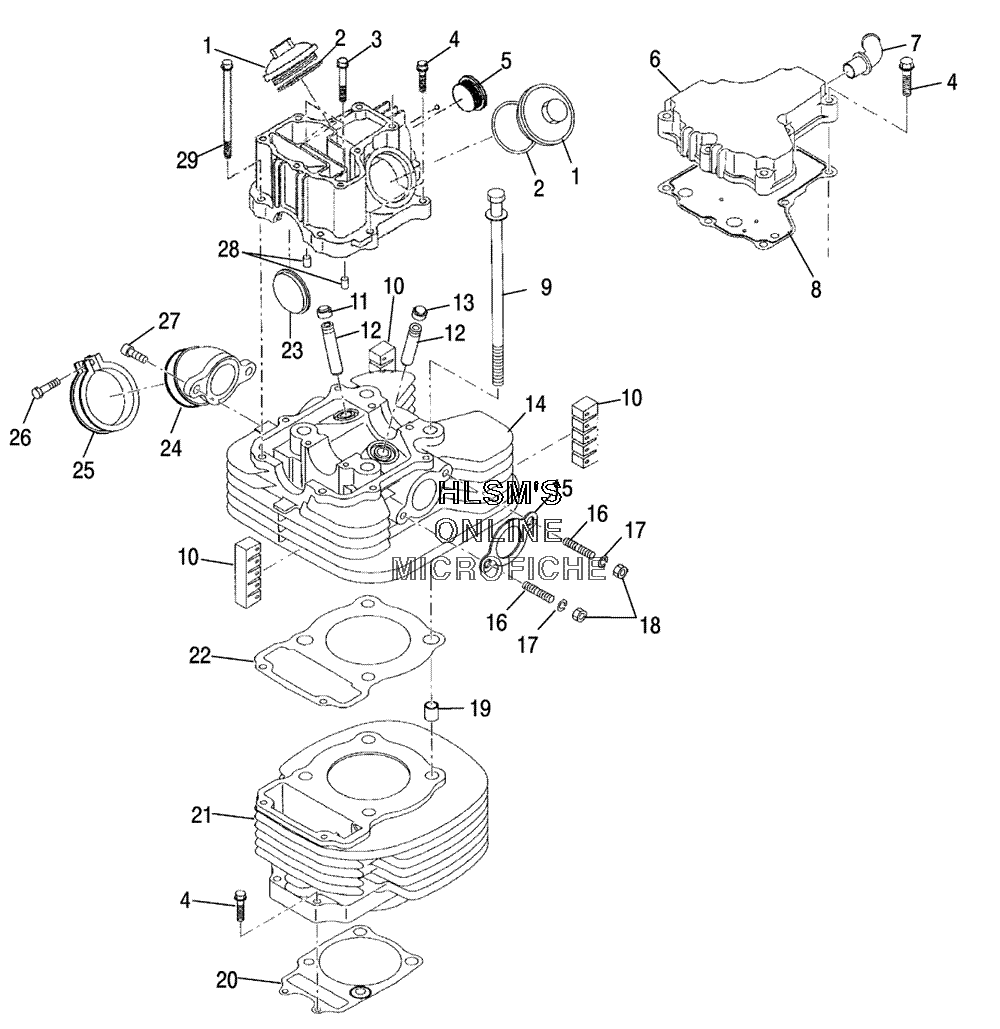

CYLINDER для Polaris ATP 330 4X4 (A05JD32AA) - 2005 года выпуска
-
№АртикулНазвание
-
13087259 COVER VALVECOVER VALVE
-
23086414 O RINGO RING
-
33087159 BOLT FLANGEBOLT FLANGE
-
43084874 BOLT, FLANGEBOLT, FLANGE
-
53089272 PLUG ASSYPLUG ASSY
-
63089271 COVER BREATHER ASSY (INCL. 7)COVER BREATHER ASSY (INCL. 7)
-
73085850 PIPE ASSYPIPE ASSY
-
83087034 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
93086418 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
103084798 FIN DAMPER AFIN DAMPER A
-
113084858 SEAL, INTAKE VALVESEAL, INTAKE VALVE
-
123084994 GUIDE, VALVEGUIDE, VALVE
-
133084859 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
143089270 CYLINDER HEAD ASSY (INCL. 11-14, 16, 28)CYLINDER HEAD ASSY (INCL. 11-14, 16, 28)
-
153086421 GASKET, EXHAUSTGASKET, EXHAUST
-
163085326 STUDSTUD
-
173080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
183086787 NUTNUT
-
193087266 KNOCK, PIPEKNOCK, PIPE
-
203086407 GASKET, CYLINDERGASKET, CYLINDER
-
213087236 CYLINDER UNITCYLINDER UNIT
-
223087238 GASKET, HEADGASKET, HEAD
-
233086416 GASKET, CAMGASKET, CAM
-
243087050 ADAPTER ASSYADAPTER ASSY
-
253083166 ADAPTER BAND ASSY (INCL. 26)ADAPTER BAND ASSY (INCL. 26)
-
263081497 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
273081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
283087275 PIPE KNOCKPIPE KNOCK
-
293087160 BOLT, FLANGEBOLT, FLANGE
