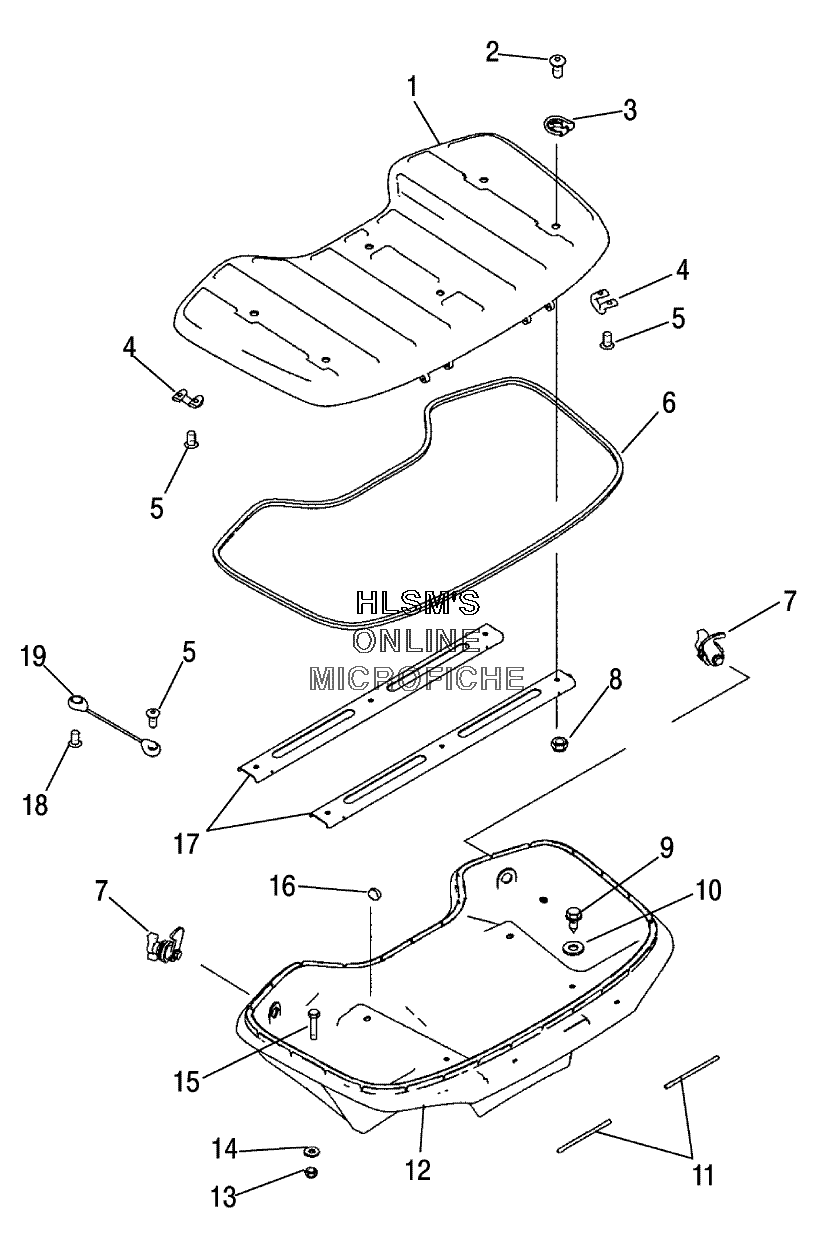

STORAGE BOX - FRONT для Polaris ATP 330 4X4 (A05JD32AA) - 2005 года выпуска
-
№АртикулНазвание
-
11253528 COVER ASSY (FRONT) (INCL. 2-5, 8, 17)COVER ASSY (FRONT) (INCL. 2-5, 8, 17)
-
27518216 SCREWSCREW
-
37081101 RING TIE DOWNRING TIE DOWN
-
45334257 LATCH WIRELATCH WIRE
-
57512076 SCREWSCREW
-
65521641 SEAL COMPARTMENT (FRONT)SEAL COMPARTMENT (FRONT)
-
77081125 LATCH 1/4 TURN (RIGHT)LATCH 1/4 TURN (RIGHT)
-
77081145 LATCH 1/4 TURN (LEFT)LATCH 1/4 TURN (LEFT)
-
87542324 NUT, NYLOKNUT, NYLOK
-
97515399 SCREWSCREW
-
107555958 WASHER, FLATWASHER, FLAT
-
115133825 PIN HINGE (FRONT)PIN HINGE (FRONT)
-
125434790-070 BASE BOX (FRONT/BLACK)BASE BOX (FRONT/BLACK)
-
137541925 NUT, NYLOK 10 24 YNUT, NYLOK 10 24 Y
-
147555792 WASHERWASHER
-
157512007 BOLTBOLT
-
165412352 PLUG COMPARTMENTPLUG COMPARTMENT
-
175246928 CHANNEL LIDCHANNEL LID
-
187512024 SCREWSCREW
-
197081124 CABLE, LID (FRONT)CABLE, LID (FRONT)
