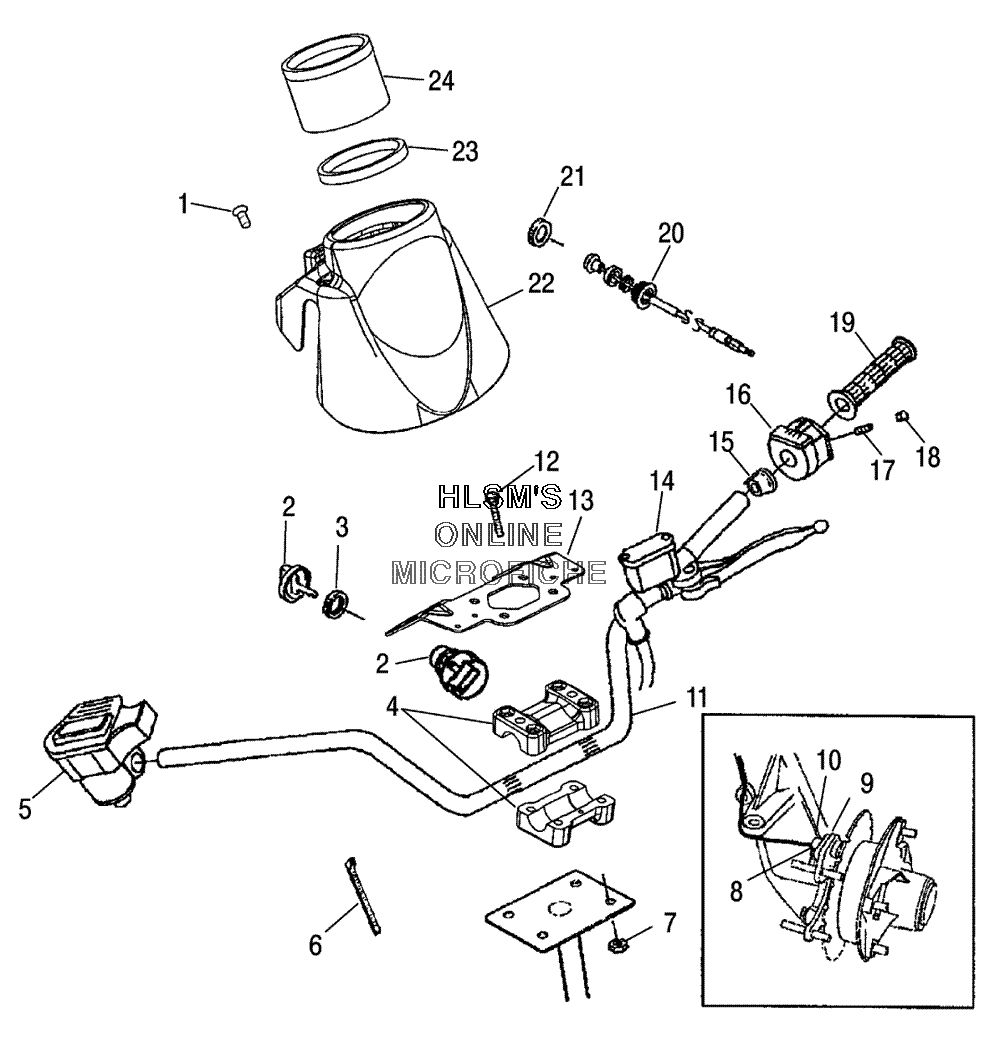

HANDLEBAR для Polaris ATP 330 4X4 (A05JD32AA) - 2005 года выпуска
-
№АртикулНазвание
-
17518176 SCREWSCREW
-
24011002 SWITCH KEY, 3 POSSWITCH KEY, 3 POS
-
25431964 KEY COVER, KEYSWITCHKEY COVER, KEYSWITCH
-
24010278 KEY BLANK (20/21/67/68)KEY BLANK (20/21/67/68)
-
24010321 KEY BLANK (22/23/27/28) (SEE NOTE)KEY BLANK (22/23/27/28) (SEE NOTE)
-
35433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
45631517 BLOCK HANDLEBAR, PEGGEDBLOCK HANDLEBAR, PEGGED
-
45631516 BLOCK HANDLEBARBLOCK HANDLEBAR
-
67080138 CABLE TIECABLE TIE
-
77542122 NUT NYLOKNUT NYLOK
-
87517658 SCREWSCREW
-
94010298 SENSOR, HALL EFFECTSENSOR, HALL EFFECT
-
105132382 CAP HALL SENSORCAP HALL SENSOR
-
115334127-067 TUBE HANDLEBAR (BLACK)TUBE HANDLEBAR (BLACK)
-
127515189 SCREWSCREW
-
135248182 BRACKET INSTRUMENT PANELBRACKET INSTRUMENT PANEL
-
155433903 SPACER SWITCH (LEFT) (99)SPACER SWITCH (LEFT) (99)
-
164010592 SWITCH HANDLEBAR, HI/LO/OFF 2PSWITCH HANDLEBAR, HI/LO/OFF 2P
-
177517625 SCREW, SETSCREW, SET
-
185432952 PLUG, HOLEPLUG, HOLE
-
195433834-070 GRIP HNDLBAR (7/8 ID) (BLACK)GRIP HNDLBAR (7/8 ID) (BLACK)
-
207081171 CABLE, CHOKE, FRICTION (40")CABLE, CHOKE, FRICTION (40")
-
217080922 NUT, CHOKE, HEXAGON (M24X1.5 THD) (M29)NUT, CHOKE, HEXAGON (M24X1.5 THD) (M29)
-
225435256-070 PANEL INSTRUMENT SPEEDO (BLACK)PANEL INSTRUMENT SPEEDO (BLACK)
-
235412138 MOUNT RUBBER, INSTRUMENT CLUSTERMOUNT RUBBER, INSTRUMENT CLUSTER
-
243280450 CLUSTER, INSTRUMENT 70MPHCLUSTER, INSTRUMENT 70MPH
