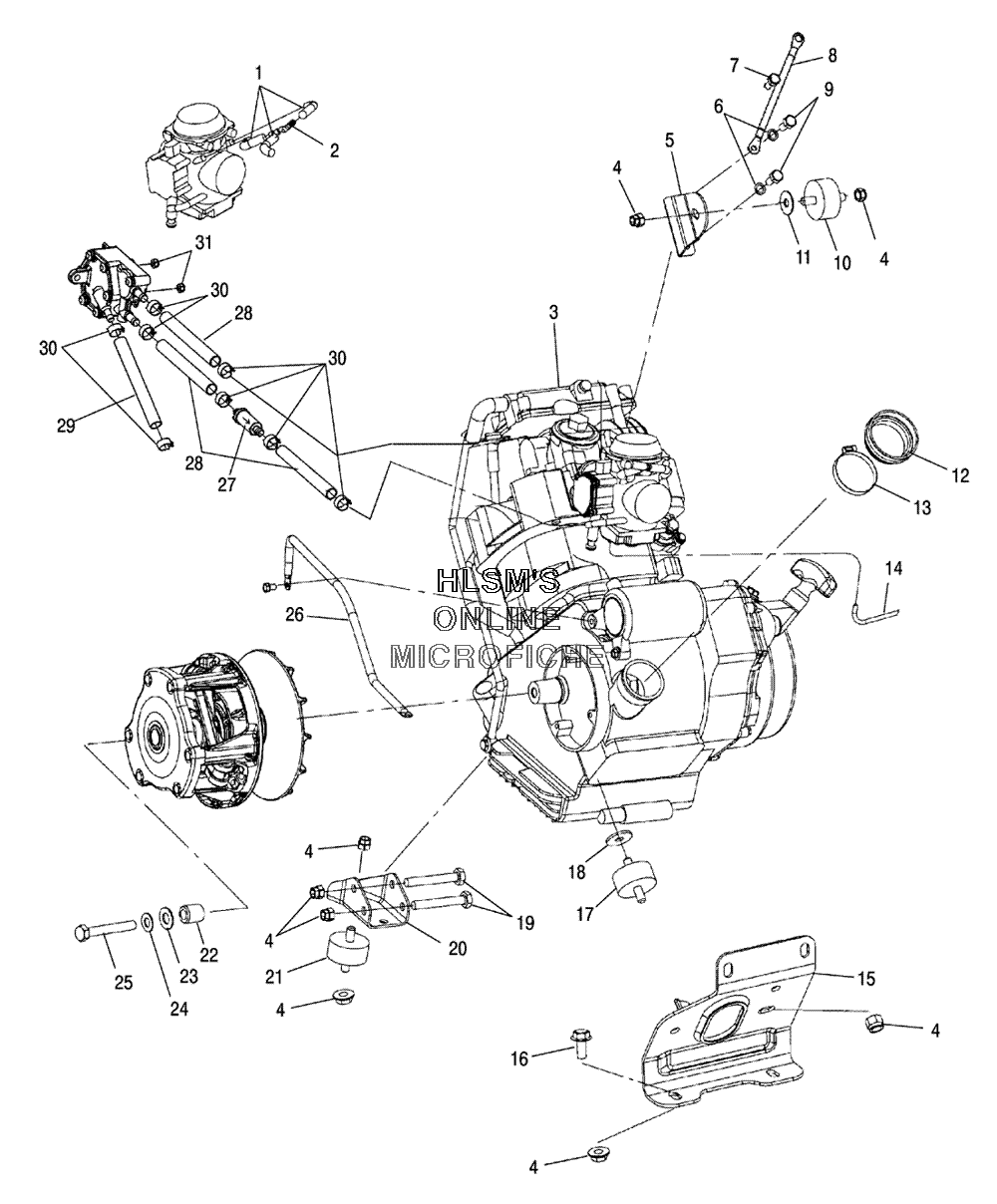

MOUNTING - ENGINE для Polaris ATP 330 4X4 (A05JD32AA) - 2005 года выпуска
-
№АртикулНазвание
-
18450003-1525 LINE, FUEL (1/4 ID) (1525 CM.)LINE, FUEL (1/4 ID) (1525 CM.)
-
27052075 FITTING, TEEFITTING, TEE
-
31202789 ENGINE ES32PFE103ENGINE ES32PFE103
-
47547108 NUTNUT
-
55247341 BRACKET, MOTOR MOUNT PLATEDBRACKET, MOTOR MOUNT PLATED
-
67552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
77512232 BOLTBOLT
-
84010132 CABLE, GND ENGINECABLE, GND ENGINE
-
97512315 BOLTBOLT
-
105412248 MOUNT RUBBER, 45 DUROMOUNT RUBBER, 45 DURO
-
117555823 WASHERWASHER
-
125411721 BOOT CLUTCH INTAKEBOOT CLUTCH INTAKE
-
137080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
148360009-600 LINE, FUEL (1/8 ID) (600 CM)LINE, FUEL (1/8 ID) (600 CM)
-
151013133-067 MOUNT, ENGINE (REAR/BLACK)MOUNT, ENGINE (REAR/BLACK)
-
167517289 SCREWSCREW
-
173021119 MOUNT, RUBBER (60 DURO) (REAR)MOUNT, RUBBER (60 DURO) (REAR)
-
187555815 WASHER, FLATWASHER, FLAT
-
197515417 SCREWSCREW
-
205247342 MOUNT ENGINE, PLATED (LOWER/FRONT)MOUNT ENGINE, PLATED (LOWER/FRONT)
-
213021181 MOUNT, RUBBER ENGINE (45 DURO)MOUNT, RUBBER ENGINE (45 DURO)
-
225430261 BUSHINGBUSHING
-
235210748 WASHERWASHER
-
247575202 WASHER LOCKWASHER LOCK
-
257512566 BOLTBOLT
-
264010095 CABLE, BATTERY/ENGINE (BLACK).CABLE, BATTERY/ENGINE (BLACK).
-
272530009 FILTER, SMALL, IN LINEFILTER, SMALL, IN LINE
-
288450103 LINE, FUEL 1/4" DP SAE J30R9LINE, FUEL 1/4" DP SAE J30R9
-
298450040 SUBSTITUTED BY 5521132SUBSTITUTED BY 5521132
-
307080003 CLAMP, HOSECLAMP, HOSE
-
317546601 NUT, NYLOKNUT, NYLOK
