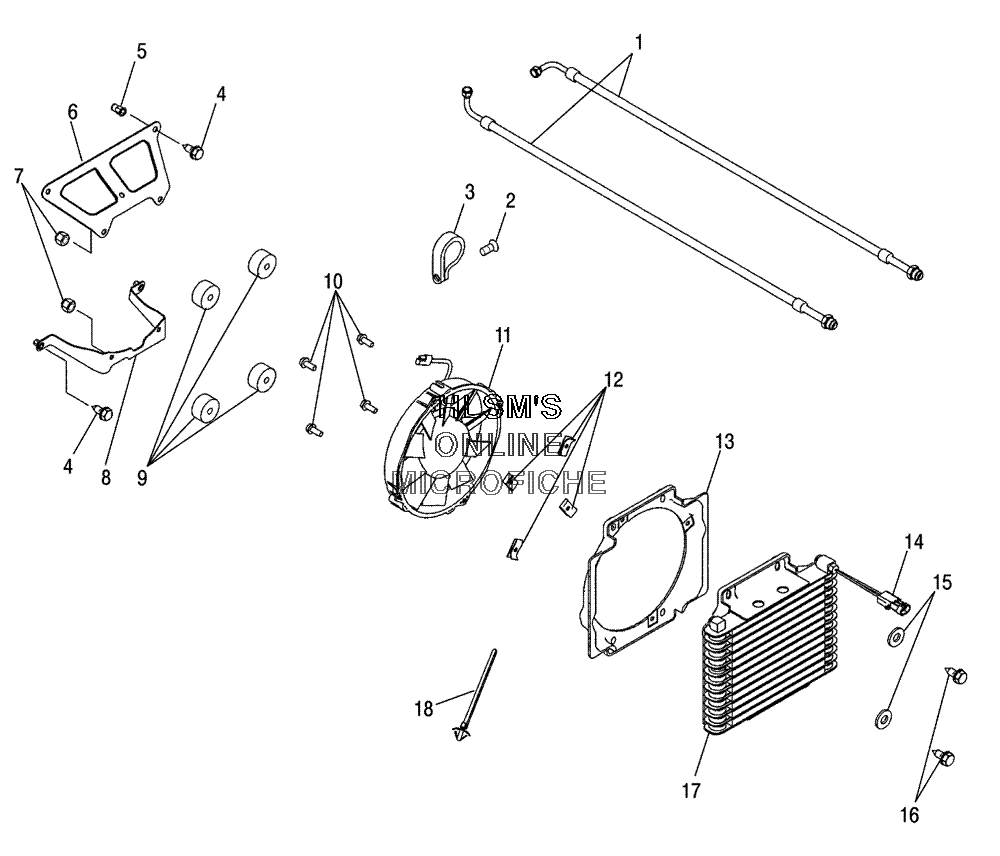

OIL COOLING SYSTEM для Polaris ATP 330 4X4 (A05JD32AA) - 2005 года выпуска
-
№АртикулНазвание
-
15412355 HOSE COOLER, THREADED 90ШHOSE COOLER, THREADED 90Ш
-
27512084 SCREWSCREW
-
37080851 CLAMP HOSE, 1.312 VINYL COATEDCLAMP HOSE, 1.312 VINYL COATED
-
47512232 BOLTBOLT
-
57547069 NUTSERT, HEXAGONNUTSERT, HEXAGON
-
65245416-067 BRKT OIL COOLER (TOP/BLACK)BRKT OIL COOLER (TOP/BLACK)
-
77542122 NUT NYLOKNUT NYLOK
-
85248139 BRKT LOWERBRKT LOWER
-
97555932 WASHER, NYLONWASHER, NYLON
-
107517659 SCREWSCREW
-
112410534 FAN MOTOR ASSYFAN MOTOR ASSY
-
127670111 CLIP, UCLIP, U
-
135433353 SHROUD, FANSHROUD, FAN
-
144010934 THERMISTERTHERMISTER
-
157558301 WASHER, FLATWASHER, FLAT
-
167512163 BOLTBOLT
-
171240191 COOLER OILCOOLER OIL
-
187080492 CABLE, TIE 11"CABLE, TIE 11"
