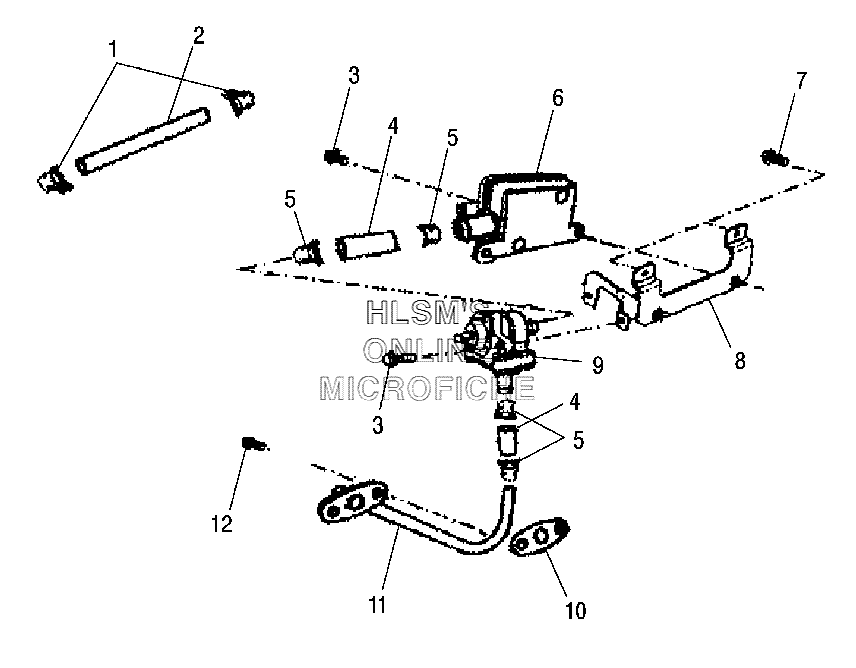

AIR INJECTION SYSTEM для Polaris Pheonix 200 Quadricycle (A06PB20EA) - 2006 года выпуска
-
№АртикулНазвание
-
10452814 CLIP, HOSE, VACUUMCLIP, HOSE, VACUUM
-
20452815 HOSE, VACUUM, ENGINEHOSE, VACUUM, ENGINE
-
30450309 BOLT, HEXBOLT, HEX
-
40452813 HOSE, RUBBERHOSE, RUBBER
-
50452795 CLIPCLIP
-
60452811 VALVE ASSY., AIR INTAKEVALVE ASSY., AIR INTAKE
-
70452816 BOLT, FLANGE, HEXBOLT, FLANGE, HEX
-
80452812 BRACKET, AIR, INTAKEBRACKET, AIR, INTAKE
-
90452810 VALVE, INTAKE, DUALVALVE, INTAKE, DUAL
-
100452808 GASKET, AIR INJECTIONGASKET, AIR INJECTION
-
110452807 TUBE ASSY., AIR INJECTIONTUBE ASSY., AIR INJECTION
-
120452413 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
