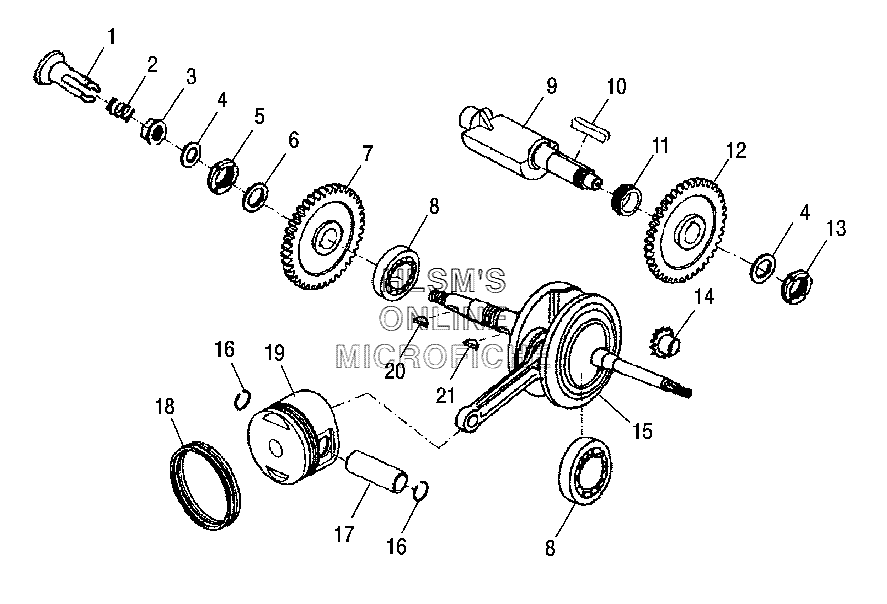

CRANKSHAFT W/ PISTON для Polaris Pheonix 200 Quadricycle (A06PB20EA) - 2006 года выпуска
-
№АртикулНазвание
-
10452445 TUBE, OIL, CRANKSHAFTTUBE, OIL, CRANKSHAFT
-
20452444 SPO-RINGILSPO-RINGIL
-
30452442 NUT, FLANGE, SPECIALNUT, FLANGE, SPECIAL
-
40450264 WASHERWASHER
-
50452441 NUT, LOCK (M25MM)NUT, LOCK (M25MM)
-
60452440 WASHER, GEARWASHER, GEAR
-
70452434 GEAR, BALANCEGEAR, BALANCE
-
80452427 BEARING, BALLBEARING, BALL
-
90452435 SHAFT, BALANCESHAFT, BALANCE
-
100452439 KEY, WOODRUFFKEY, WOODRUFF
-
110452436 SPROCKET, OIL PUMP, DRIVESPROCKET, OIL PUMP, DRIVE
-
120452437 GEAR, BALANCE, DRIVENGEAR, BALANCE, DRIVEN
-
130452438 NUT, LOCK (M14MM)NUT, LOCK (M14MM)
-
140452428 SPROCKET, TIMINGSPROCKET, TIMING
-
150452426 CRANKSHAFT KITCRANKSHAFT KIT
-
160452443 CLIP, PISTON PIN (18MM)CLIP, PISTON PIN (18MM)
-
170452433 PIN, PISTONPIN, PISTON
-
180452431 RING (SET)RING (SET)
-
190452432 PISTONPISTON
-
200452429 KEY, WOODRUFFKEY, WOODRUFF
-
210452430 KEY, WOODRUFFKEY, WOODRUFF
