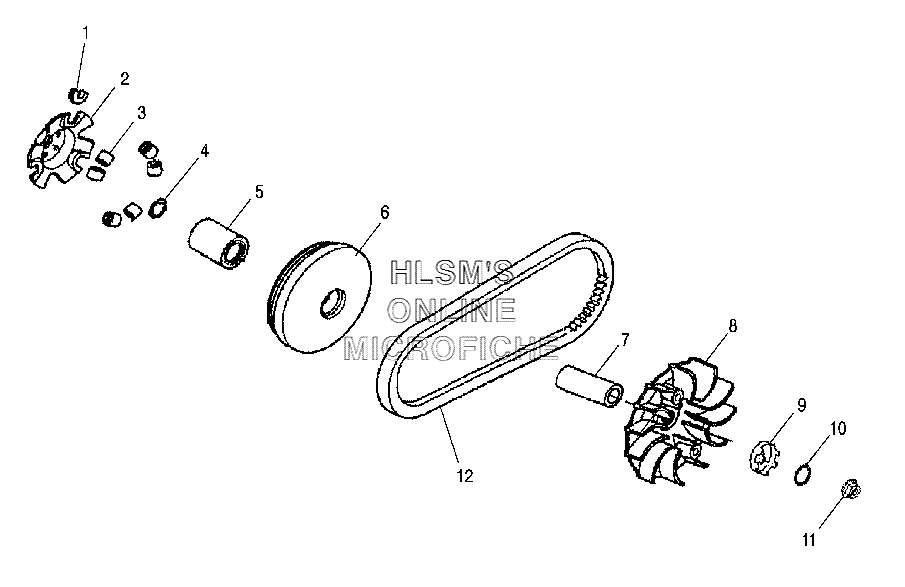

CLUTCH - DRIVE для Polaris Pheonix 200 Quadricycle (A06PB20EA) - 2006 года выпуска
-
№АртикулНазвание
-
10452473 BUSHING, SLIDEBUSHING, SLIDE
-
20452472 PLATE, SHEAVEPLATE, SHEAVE
-
30452471 ROLLER ASSY.ROLLER ASSY.
-
40452470 CIR CLIPCIR CLIP
-
50452469 BUSHING, SHEAVEBUSHING, SHEAVE
-
60452468 SHEAVE ASSY. (Y4TER) (INCL. 4, 5)SHEAVE ASSY. (Y4TER) (INCL. 4, 5)
-
70452467 SHAFT, DRIVESHAFT, DRIVE
-
80452466 SHEAVE, MOVEABLE, DRIVESHEAVE, MOVEABLE, DRIVE
-
90452474 BUSHING, KICK STARTBUSHING, KICK START
-
100452792 WASHER, PLAINWASHER, PLAIN
-
110450529 NUT, FLANGENUT, FLANGE
-
120452496 BELT, DRIVEBELT, DRIVE
-
-0452465 DRIVE CLUTCH ASSY. (INCL. 1, 8)DRIVE CLUTCH ASSY. (INCL. 1, 8)
