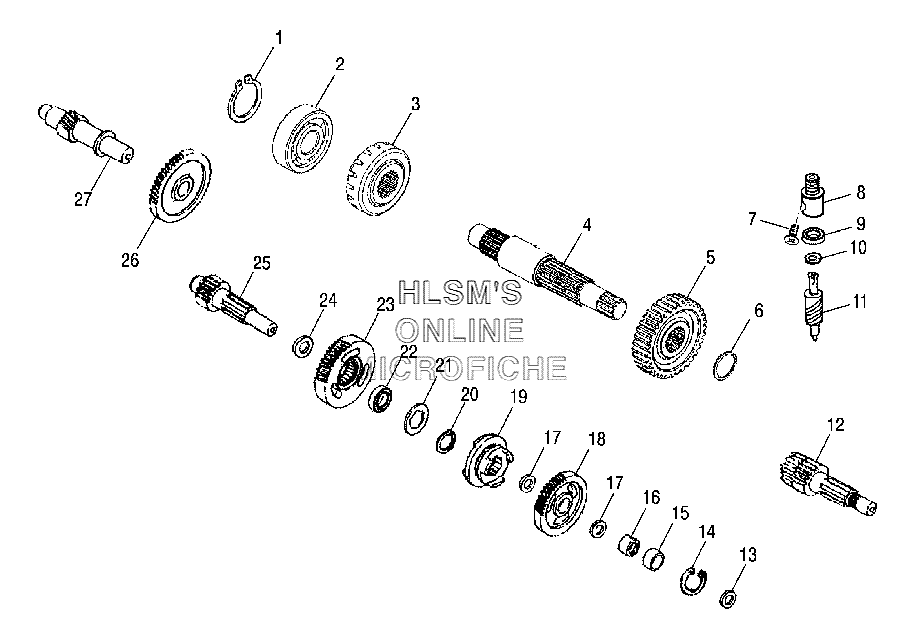

TRANSMISSION - INTERNALS для Polaris Pheonix 200 Quadricycle (A06PB20EA) - 2006 года выпуска
-
№АртикулНазвание
-
10452789 RING, RETAININGRING, RETAINING
-
20452349 BEARING, BALLBEARING, BALL
-
30452531 FINAL RING GEARFINAL RING GEAR
-
40452528 SHAFTSHAFT
-
50453124 GEAR, FINALGEAR, FINAL
-
60452529 CIRCLIPCIRCLIP
-
70452851 BOLT, PHILLIPS, FLAT HEADBOLT, PHILLIPS, FLAT HEAD
-
80452850 JOINT, GEAR, METERJOINT, GEAR, METER
-
90452849 SEAL, OILSEAL, OIL
-
100452848 WASHER, PLAINWASHER, PLAIN
-
110452847 GEAR, METERGEAR, METER
-
120452525 SHAFT, DRIVESHAFT, DRIVE
-
130453123 WASHERWASHER
-
140450187 CIRCLIP, EXTERNALCIRCLIP, EXTERNAL
-
150453120 COLLAR, SHAFTCOLLAR, SHAFT
-
160452516 BUSHING, SPUR GEARBUSHING, SPUR GEAR
-
170452513 WASHER, FLATWASHER, FLAT
-
180453121 GEARGEAR
-
190452517 RATCHET, SHIFTRATCHET, SHIFT
-
200452339 CLIP RETAINERCLIP RETAINER
-
210452518 WASHER, SPLINEWASHER, SPLINE
-
220452521 BEARING, NEEDLEBEARING, NEEDLE
-
230452520 GEAR, REVERSEGEAR, REVERSE
-
240452522 WASHER, FLATWASHER, FLAT
-
250453122 SHAFT, TRANSMISSIONSHAFT, TRANSMISSION
-
260452527 GEAR, COUNTERGEAR, COUNTER
-
270452526 SHAFT, COUNTERSHAFT, COUNTER
-
-0452514 SPUR GEAR ASSY. (INCL. 16, 18)SPUR GEAR ASSY. (INCL. 16, 18)
-
-0452519 REVERSE GEAR ASSY. (INCL. 22, 23)REVERSE GEAR ASSY. (INCL. 22, 23)
