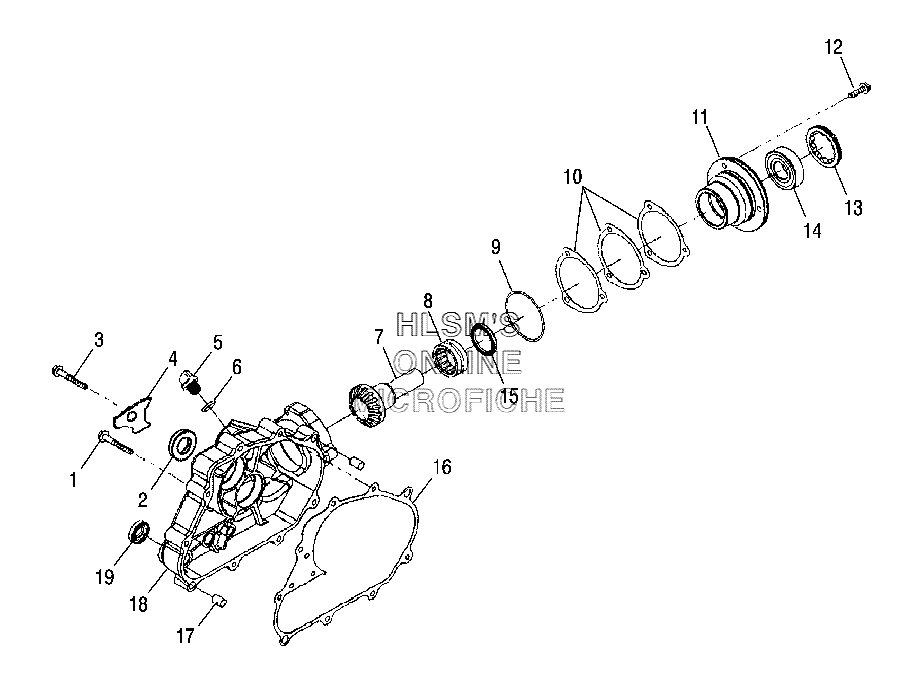

DRIVE - REAR для Polaris Pheonix 200 Quadricycle (A06PB20EA) - 2006 года выпуска
-
№АртикулНазвание
-
10452343 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
20452333 SEAL AND SIGHT GLASSSEAL AND SIGHT GLASS
-
30452330 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
40453245 RETAINER, SIGHT GLASSRETAINER, SIGHT GLASS
-
50451813 PLUG, OILPLUG, OIL
-
60450154 O-RINGO-RING
-
70452356 GEAR, SHAFT, OUTPUTGEAR, SHAFT, OUTPUT
-
80452358 BEARING, NEEDLEBEARING, NEEDLE
-
90452353 O-RINGO-RING
-
100452352 SHIM, SETSHIM, SET
-
110452351 COLLAR, GEAR SHAFTCOLLAR, GEAR SHAFT
-
120452350 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
130452355 NUT, LOCKNUT, LOCK
-
140452354 BEARING, BALLBEARING, BALL
-
150452357 SEAL, OILSEAL, OIL
-
160452334 GASKET, TRANSMISSION COVERGASKET, TRANSMISSION COVER
-
170450142 PIN, DOWELPIN, DOWEL
-
180452332 COVER, TRANSMISSIONCOVER, TRANSMISSION
-
190452175 SEAL, OILSEAL, OIL
